Technical Specifications
| Parameter | Description |
|---|---|

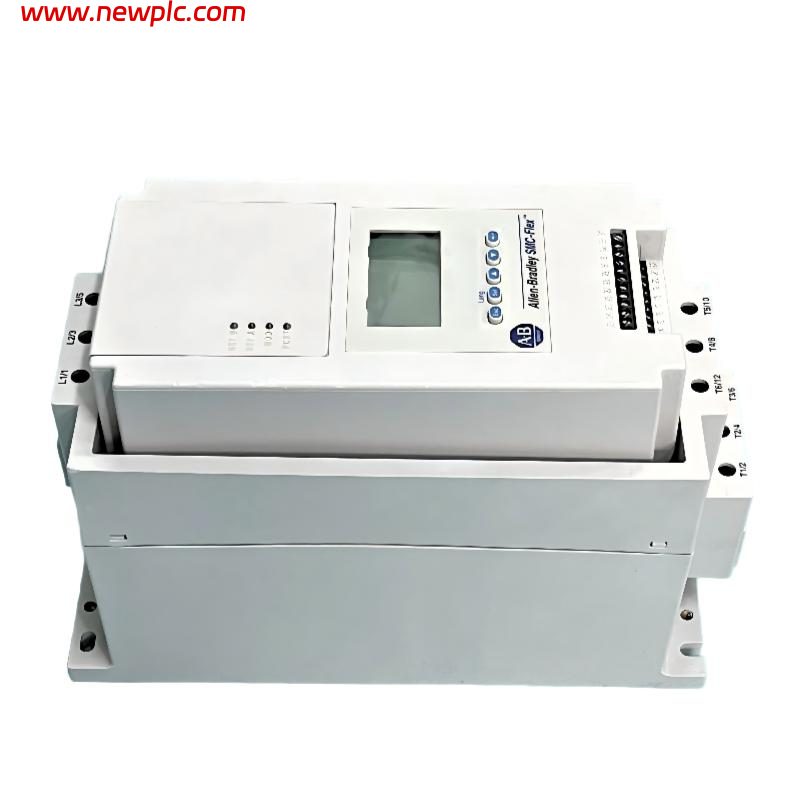

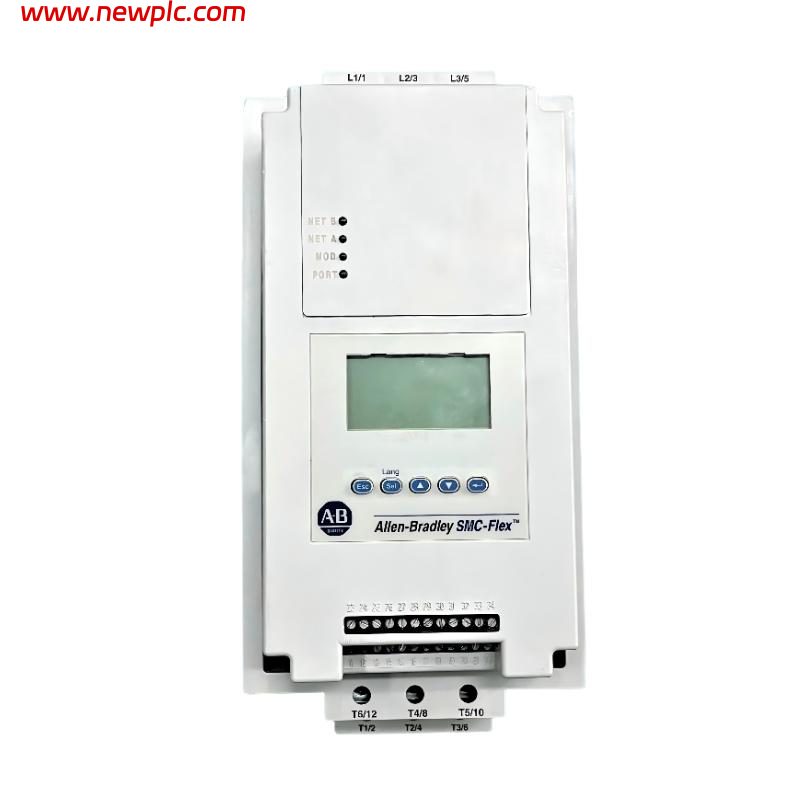

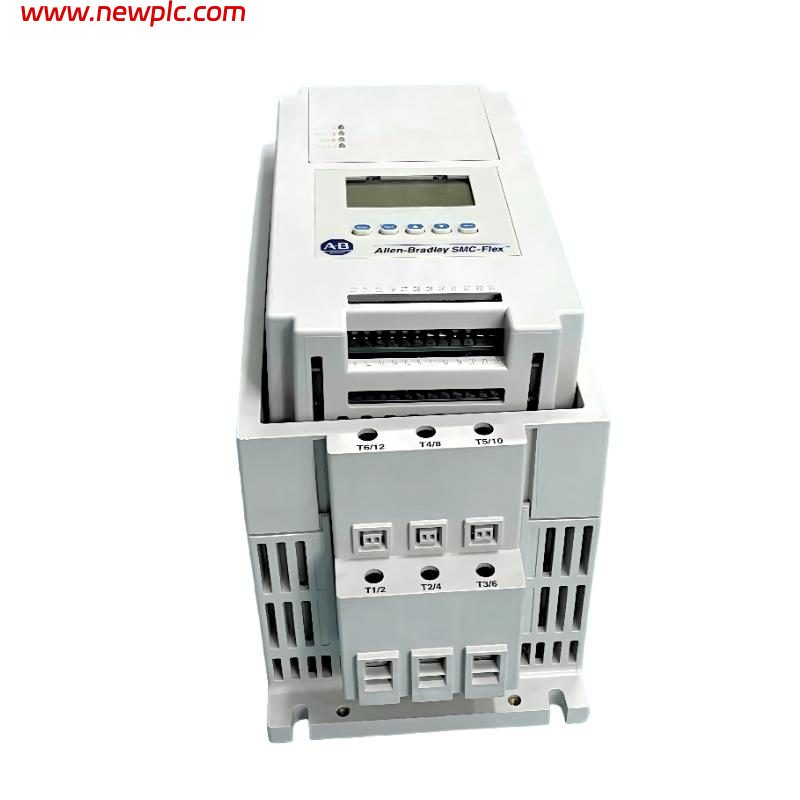

| Product Model | Allen-Bradley 150-F85NBD |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | SMC™ Flex Solid-State Controller |
| Product Type | Soft Starter |
| Function | Provides reduced-voltage motor starting, stopping control, and motor protection by controlling voltage applied to three-phase induction motors |
| Application | Pumps, fans, conveyors, compressors, blowers, and industrial motor control systems |
| Controller Rating | 85 A |
| Motor Power Rating | 15–60 HP at 460 VAC |
| Input Voltage Range | 200–480 VAC, 3-phase |
| Control Voltage | 100–240 VAC |
| Operating Frequency | 50/60 Hz |
| Starter Type | Solid-state controller with internal bypass |
| Bypass Type | Integrated internal bypass contactor |
| Control Mode | Soft start / soft stop control |
| Number of Poles | 3 |
| Motor Protection | Integrated electronic motor overload protection |
| Overload Trip Classes | 10, 15, 20, 30 |
| Auxiliary Contacts | 4 auxiliary contact outputs |
| Communication Options | Optional network communication modules available |
| Protection Features | Overload protection, phase loss protection, electronic diagnostics, fault monitoring |
| Power Pole Construction | Heatsink thyristor modular design |
| Enclosure Type | Open type |
| Mounting Type | Panel mounting |
| Operating Temperature | -5°C to 50°C |
| Humidity Range | 5–95% RH, non-condensing |
| Altitude Rating | Up to 2000 m |
| Protection Degree | IP20 |
| Dimensions | 150 × 321 × 203 mm |
| Weight | Approx. 5.7 kg |
FAQ
FAQ
Q1: What is the Allen-Bradley 150-F85NBD used for?
A: The 150-F85NBD is used for soft starting and stopping of three-phase motors. It reduces mechanical stress and electrical inrush current during motor startup.
Q2: Which product family does the 150-F85NBD belong to?
A: It belongs to the Allen-Bradley SMC Flex Solid-State Controller family.
Q3: What motor power range does the 150-F85NBD support?
A: The controller supports motors rated approximately 15–60 HP at 460 VAC with an 85 A controller rating.
Q4: What input voltage is required for the 150-F85NBD?
A: The unit operates with a 200–480 VAC three-phase power supply and requires a 100–240 VAC control voltage.
Q5: Does the 150-F85NBD include motor protection functions?
A: Yes. It includes integrated electronic motor overload protection, fault monitoring, and diagnostic functions to improve motor system reliability.
Q6: What are the dimensions and weight of the 150-F85NBD?
A: The approximate dimensions are 150 × 321 × 203 mm, and the weight is approximately 5.7 kg.
Q7: Does the 150-F85NBD have an internal bypass?
A: Yes. The SMC Flex controller includes an internal bypass design, allowing the motor to run efficiently after the starting process is completed.
Q8: What should be checked before installing the 150-F85NBD?
A: Verify the motor full-load current, supply voltage, control voltage, wiring configuration, protection settings, and mounting requirements before installation. Ensure all power sources are disconnected before maintenance.
