Technical Specifications
| Parameter | Specification |
|---|---|

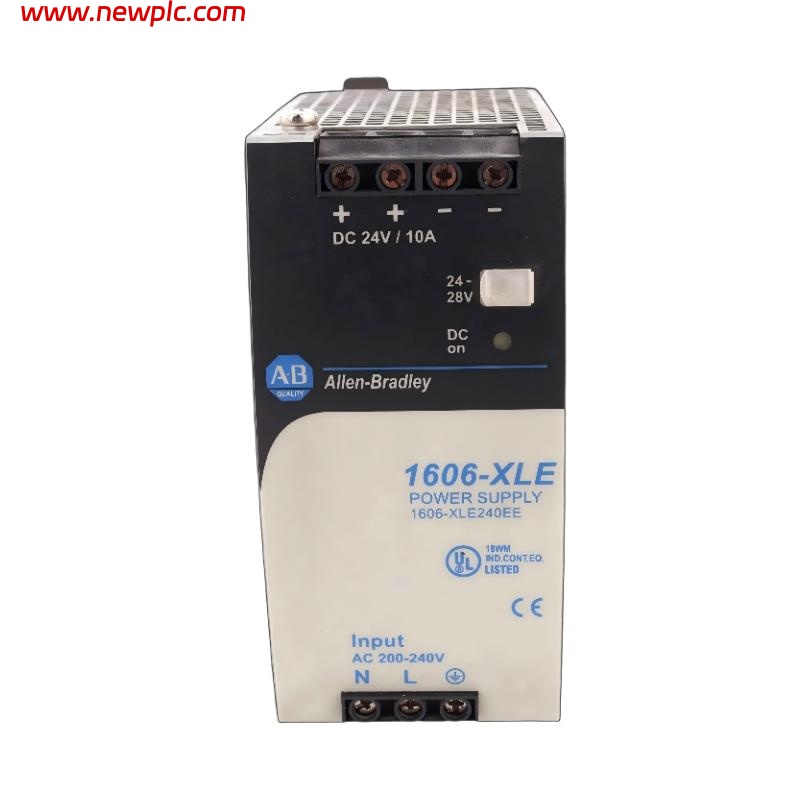

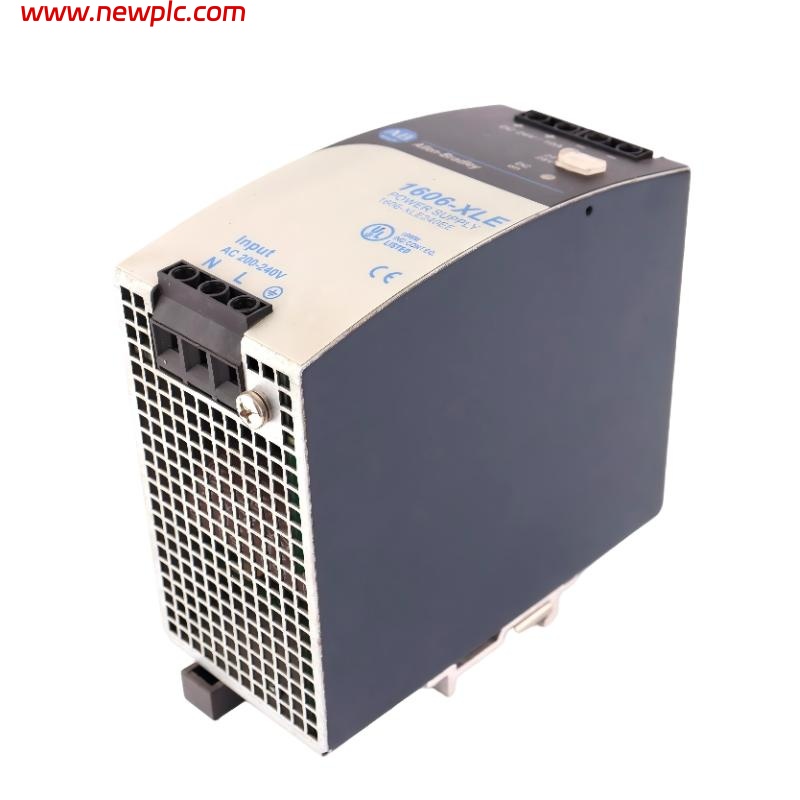

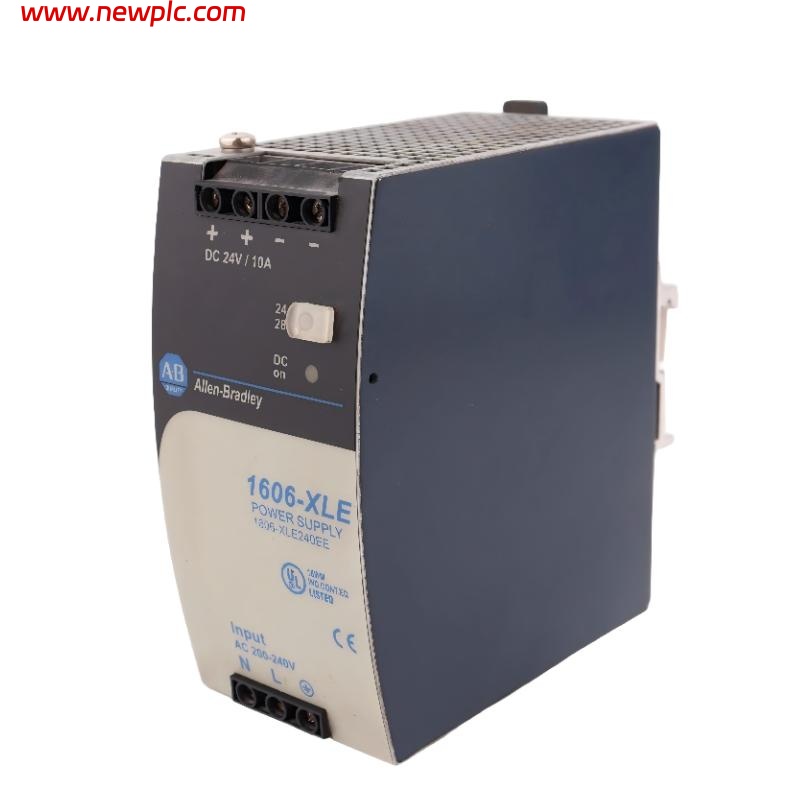

| Product Type | Industrial AC/DC Switched‑Mode Power Supply |
| Product Family | Allen‑Bradley 1606‑XLE Essential Series |
| Part Number | 1606‑XLE240EE |
| Input Voltage Range | 180–264 V AC (single‑phase) / 210–375 V DC |
| Input Frequency | 47–63 Hz |
| Rated Input Current | ~2.7 A @ AC |
| Nominal Output Voltage | 24 V DC |
| Adjustable Output Voltage | 24–28 V DC |
| Maximum Output Current | 10 A |
| Output Power | 240 W |
| Power Reserves | 20 % |
| Efficiency (typical) | ~91.3 % |
| Power Factor (typical) | ~0.52 |
| Hold‑up Time | >45 ms @ rated load |
| Input Inrush Current | ~48 A |
| Ripple & Noise (max) | ≤ 50 mV |
| Connection Type | Screw terminals |
| Mounting | DIN‑rail & wall mount possible |
| Protection Degree (IP) | IP20 |
| Operating Temperature Range | 0 °C to +70 °C |
| Storage Temperature Range | −25 °C to +85 °C |
| Relative Humidity | 5 % – 95 % |
| MTBF | ~910 kh @ 40 °C |
| Dimensions (H × W × D) | 124 mm × 60 mm × 117 mm |
| Weight | ~700 g |
FAQ
FAQ
Q1: What type of product is the 1606‑XLE240EE?
It is an industrial AC/DC switched‑mode power supply from the Allen‑Bradley 1606‑XLE Essential power supply family.
Q2: What input voltages does the 1606‑XLE240EE support?
The unit supports a wide AC input range of ~180–264 V or DC input of ~210–375 V.
Q3: What is the nominal output voltage and current of this power supply?
The 1606‑XLE240EE provides a regulated 24 V DC output and can deliver up to 10 A of current.
Q4: How much output power does the 1606‑XLE240EE provide?
It provides a maximum output power of 240 W.
Q5: What are the dimensions and weight of the 1606‑XLE240EE?
The power supply measures about 124 mm × 60 mm × 117 mm and weighs around 700 g.
Q6: Does the 1606‑XLE240EE have efficiency and ripple specifications?
Yes, typical efficiency is ~91.3 % and output ripple & noise is ≤ 50 mV.
Q7: What protections or indicators does this model include?
The unit features overload protection, low inrush current behavior, and a DC‑OK indicator in some configurations.
Q8: What environmental conditions can the 1606‑XLE240EE operate in?
It typically operates from 0 °C up to +70 °C with IP20 protection and can be stored from −25 °C to +85 °C.
