Technical Specifications
| Parameter | Specification |
|---|---|

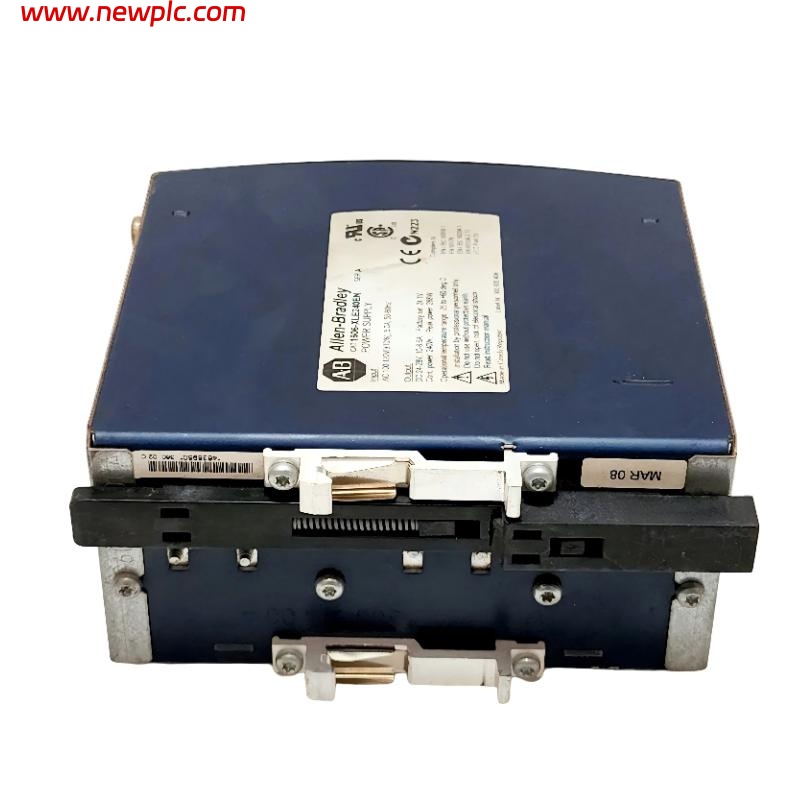

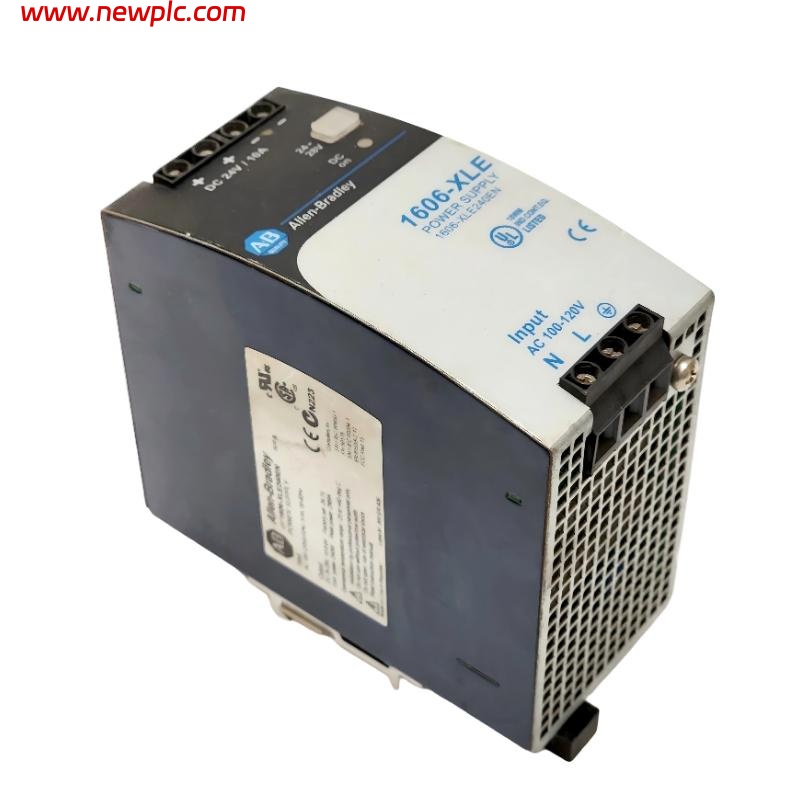

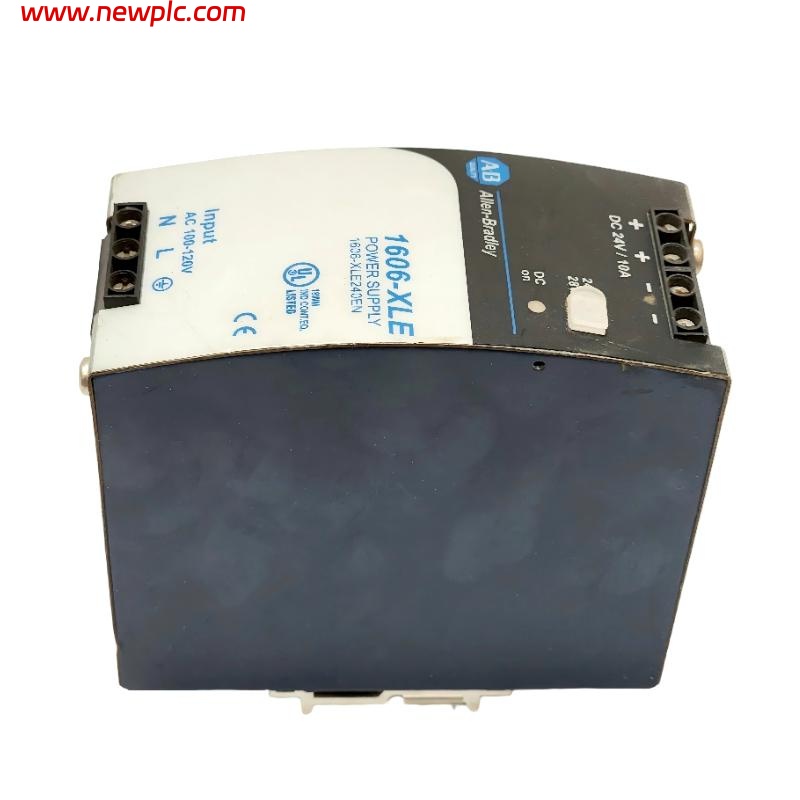

| Product | Allen Bradley 1606‑XLE240EN |
| Product Type | Industrial AC Power Switched‑Mode Power Supply |
| Product Family | Allen‑Bradley 1606‑XLE Essential Series |
| Part Number | 1606‑XLE240EN |
| Input Voltage (AC) | 90–132 V AC (1‑phase) |
| Rated Supply Voltage | 100 V @ 50/60 Hz |
| Power Type | AC only (no DC input supported) |
| Nominal Output Voltage | 24 V DC |
| Adjustable Output Voltage | 24–28 V DC |
| Maximum Output Current | 10 A |
| Output Power | 240 W |
| Power Reserves | 20 % |
| Derating | 6 W/°C |
| Input Inrush Current Limiter | NTC type |
| Power Factor (typical) | ~0.57 |
| Operational Input Range | 90–132 V AC |
| Efficiency (typical) | ~91.3 % |
| Hold‑up Time | >46 ms @ 120 V |
| Power Losses | ~23.4 W (typical) |
| Output Stabilization | Regulated output |
| Protection Features | Overload, short‑circuit, over‑temperature recovery |
| Connection Type | Screw connection |
| Mounting | DIN‑rail (35 mm) |
| Degree of Protection (IP) | IP20 |
| Operating Temperature Range | 0 °C to +70 °C |
| Storage Temperature Range | −25 °C to +85 °C |
| Relative Humidity | 5 % – 95 % |
| MTBF | ~710 kh @ 40 °C |
| Ripple & Noise (max) | ~50 mV |
| Dimensions (H × W × D) | 124 mm × 60 mm × 117 mm |
| Weight | ~700 g |
FAQ
FAQ
Q1: What type of product is the 1606‑XLE240EN?
It is an essential series AC‑input industrial switched‑mode power supply.
Q2: What input voltage does this power supply require?
This model accepts single‑phase AC input within approximately 90–132 V AC.
Q3: What is the output voltage and maximum current?
It provides a regulated 24 V DC output and can deliver up to 10 A of current.
Q4: How much output power does the 1606‑XLE240EN deliver?
The unit delivers up to 240 W of DC power.
Q5: What are the dimensions and weight of this power supply?
The supply measures approximately 124 mm × 60 mm × 117 mm and weighs about 700 g.
Q6: What protections are included in this power supply?
It includes protections for overload, short‑circuit, and over‑temperature conditions with automatic recovery.
Q7: What efficiency and ripple performance can I expect?
Typical efficiency is around 91.3 %, with ripple and noise around 50 mV.
Q8: What environmental conditions is the 1606‑XLE240EN suitable for?
It operates in ambient temperatures from 0 °C to +70 °C and up to 95 % relative humidity.
