Technical Specifications
| Parameter | Specification |
|---|---|

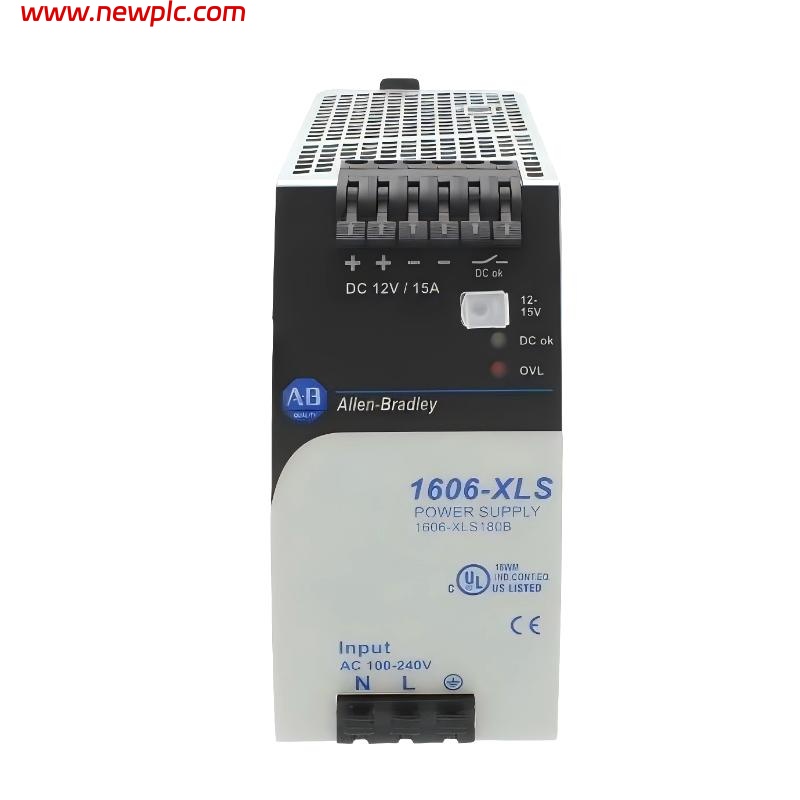

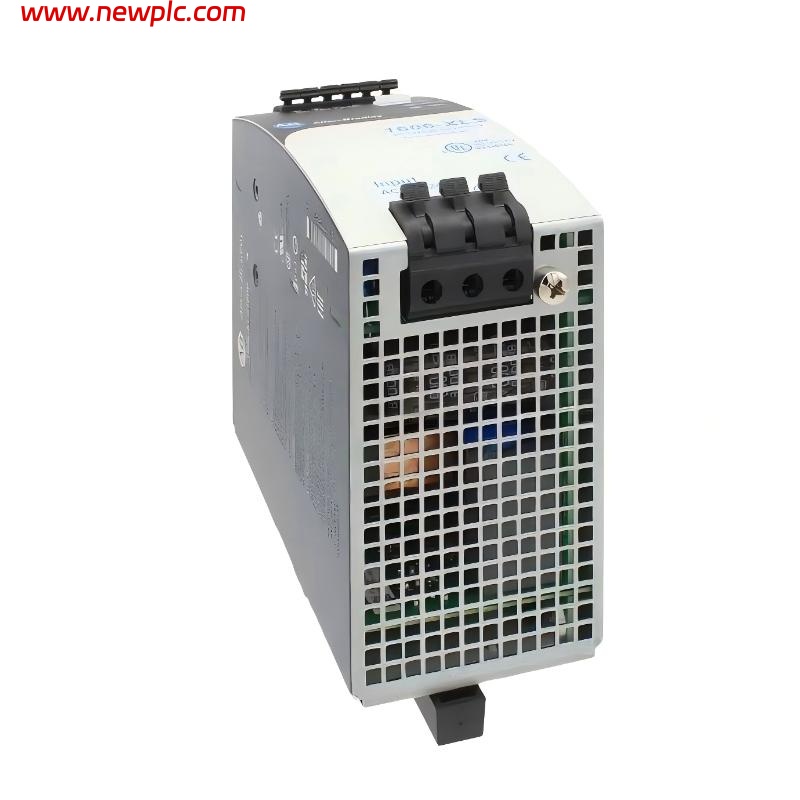

| Product Type | Industrial AC/DC Performance Switched‑Mode Power Supply |
| Product Family | Allen‑Bradley 1606‑XLS Performance Series |
| Part Number | 1606‑XLS180B |
| Input Voltage Range (AC) | 100–240 V AC, 47–63 Hz |
| Input Voltage Range (DC) | 110–150 V DC |
| Nominal Output Voltage | 12–15 V DC (adjustable) |
| Rated Output Current | 15 A |
| Output Power | 180 W |
| Efficiency (typical) | ~91.5 % |
| Hold‑up Time (typical) | ~32 ms |
| Output Ripple & Noise (max) | ≤ 50 mVpp |
| Protection Features | Overload, short‑circuit, over‑temperature recovery |
| DC‑OK Relay Contact | Yes |
| Input Inrush Limiter | Active |
| Connection Type | Spring clamp terminals |
| Mounting | DIN‑rail (35 mm) |
| Protection Degree (IP) | IP20 |
| Operating Temperature Range | −25 °C to +70 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Relative Humidity | 5–95 % non‑condensing |
| MTBF | ~577,000 h minimum |
| Dimensions (H × W × D) | 124 mm × 60 mm × 117 mm |
| Weight | ~930 g (approx.) |
FAQ
FAQ
Q1: What type of product is the 1606‑XLS180B?
It is an industrial performance AC/DC switched‑mode power supply from the Allen‑Bradley 1606‑XLS Performance series.
Q2: What input voltages does the 1606‑XLS180B support?
It supports a wide AC input range of 100–240 V AC and DC input from 110–150 V DC.
Q3: What is the nominal output voltage and maximum current?
The unit provides an adjustable 12–15 V DC output with a rated output current of 15 A.
Q4: How much output power can the 1606‑XLS180B deliver?
It delivers up to 180 W of DC output power.
Q5: What are the physical dimensions and weight of this power supply?
The dimensions are approximately 124 mm × 60 mm × 117 mm, and the unit weighs around 930 g.
Q6: Does the 1606‑XLS180B include any protection features?
Yes — it includes protections against overload, short circuits, and over‑temperature conditions.
Q7: What is the operating environmental range for this model?
It operates in ambient temperatures from −25 °C to +70 °C with up to 95 % non‑condensing humidity.
Q8: Does this power supply offer diagnostic outputs?
Yes — it has a DC‑OK relay contact for status monitoring.
