Technical Specifications
| Parameter | Specification |
|---|---|

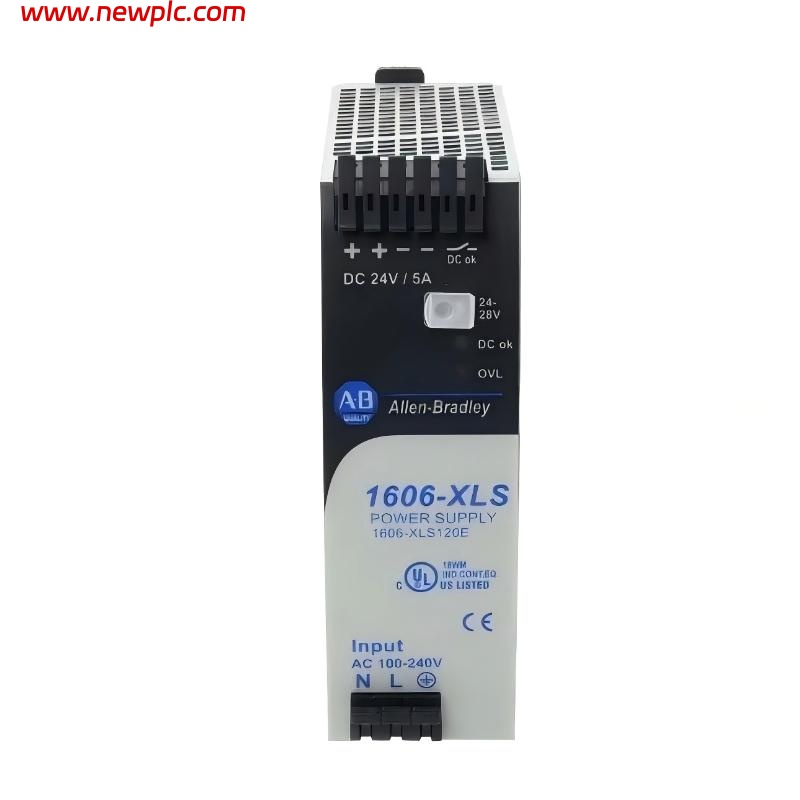

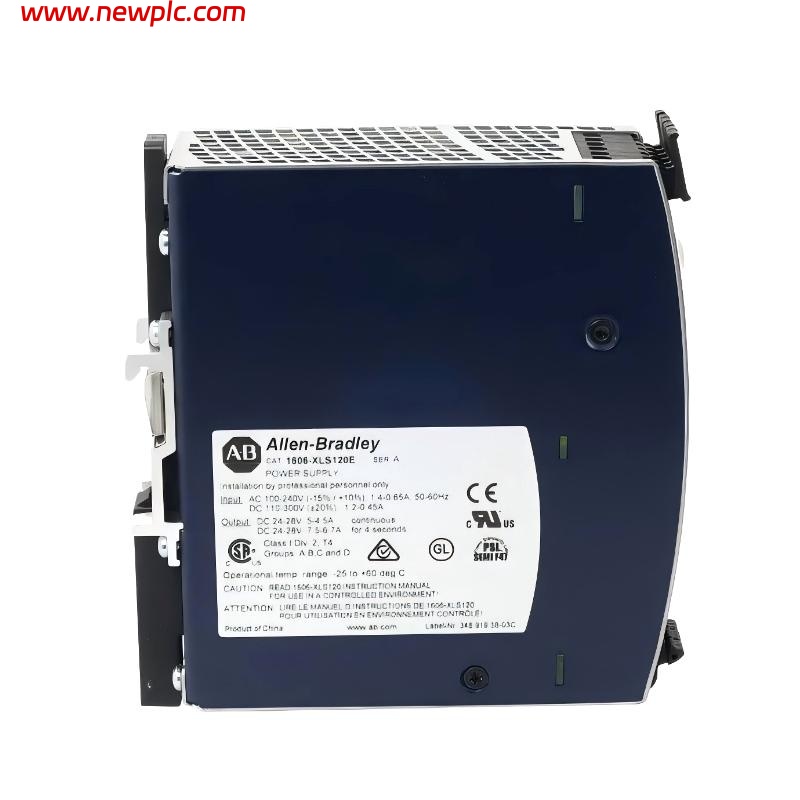

| Product Type | Industrial AC/DC Performance Switched‑Mode Power Supply |
| Product Family | Allen‑Bradley 1606‑XLS Series |
| Part Number | 1606‑XLS120E |
| Input Voltage Range | 100–240 V AC, 47–63 Hz or 110–300 V DC |
| Operational Input Range | 88–360 V DC |
| Nominal Output Voltage | 24 V DC |
| Adjustable Output Voltage | 24–28 V DC |
| Maximum Output Current | 5 A (continuous) |
| Reserve / Boost Current | 7.5 A for ~4 s |
| Output Power | 120 W |
| Efficiency (typical) | ~92.7 % |
| Power Factor (typical) | ~0.91 |
| Hold‑up Time | ~33–59 ms |
| Derating | ~3 W/°C above specified temperature |
| Ripple & Noise (max) | ≤ 50 mV |
| Protection Features | Overload, short‑circuit, over‑temperature with recovery |
| DC‑OK Relay Contact | Yes |
| Input Inrush Limiter | Active |
| Connection Type | Spring clamp terminals |

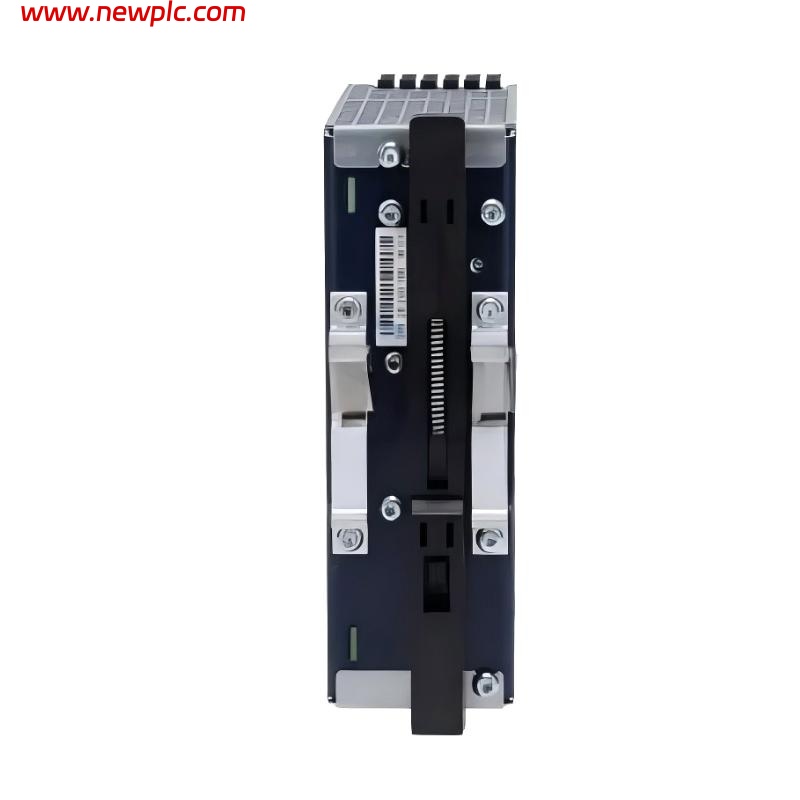

| Mounting | 35 mm DIN‑rail & optional wall mount |
| Degree of Protection (IP) | IP20 |
| Operating Temperature Range | −25 °C to +70 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Relative Humidity | 5 % – 95 % non‑condensing |
| MTBF | ~831 000 h @ 40 °C (SN29500) |
| Dimensions (H × W × D) | 124 mm × 40 mm × 117 mm |
| Weight | 620 g |
FAQ
FAQ
Q1: What type of product is the 1606‑XLS120E?
It is an industrial performance AC/DC switched‑mode power supply in the Allen‑Bradley 1606‑XLS series, designed for DIN‑rail mounting.
Q2: What input voltages can the 1606‑XLS120E accept?
It accepts a wide AC input range of 100–240 V AC or DC input from 110–300 V DC.
Q3: What are the output voltage and maximum current?
The unit provides a regulated 24 V DC output (up to 28 V adjustable) with a continuous current rating of 5 A.
Q4: How much output power does this power supply deliver?
It delivers up to 120 W of DC output power.
Q5: Does the 1606‑XLS120E support short current boost?
Yes, it can provide reserve/boost current up to ~7.5 A for short durations (~4 s).
Q6: What protections are included?
Built‑in protections include overload, short‑circuit, and over‑temperature recovery functions, plus a DC‑OK relay.
Q7: What are the physical dimensions and weight of this unit?
Dimensions are 124 mm high × 40 mm wide × 117 mm deep, and the unit weighs about 620 g.
Q8: What environmental conditions can the 1606‑XLS120E operate in?
It operates from −25 °C to +70 °C with up to 95 % non‑condensing humidity and IP20 protection.
