Technical Specifications
| Parameter | Specification |
|---|---|

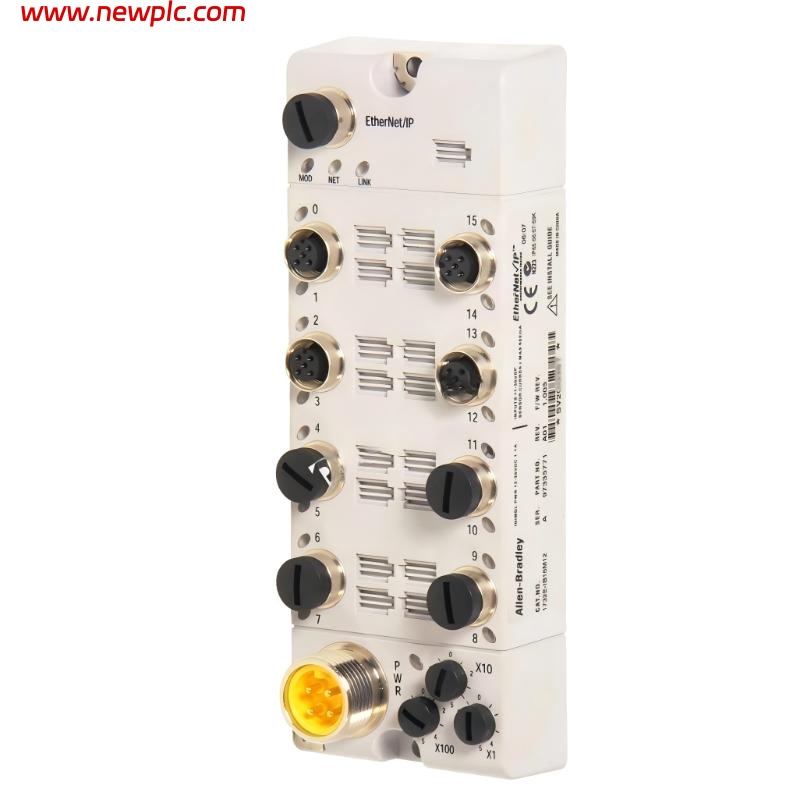

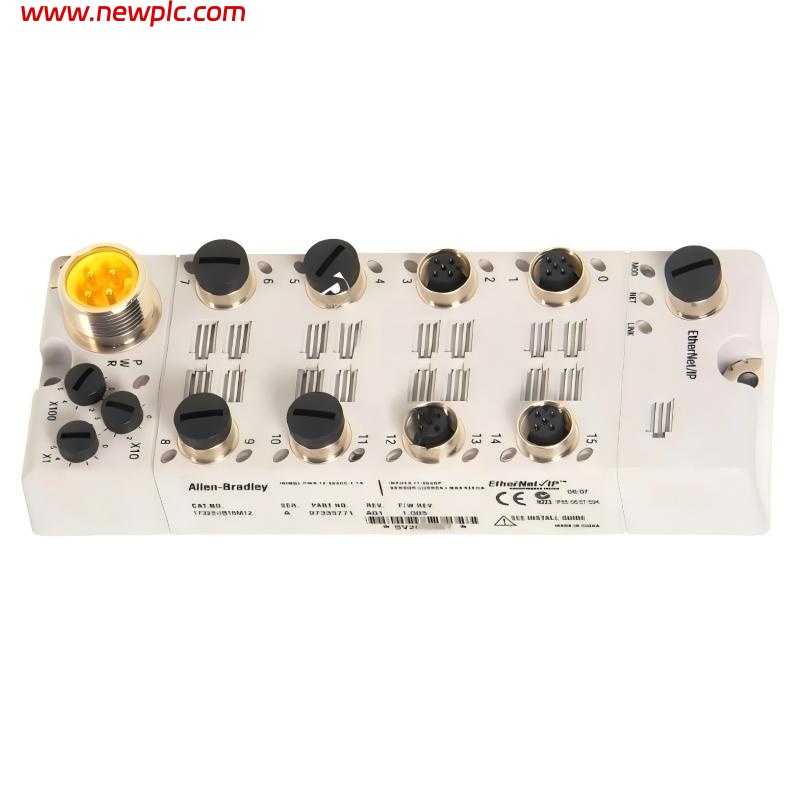

| Model | Allen-Bradley 1732E-IB16M12 |
| Product Type | ArmorBlock Input Module |
| Series | Bulletin 1732E ArmorBlock |
| Communication Protocol | EtherNet/IP |
| Number of Inputs | 16 Digital Inputs |
| Input Type | Sinking Input |
| Operating Voltage | 24V DC |
| Voltage Range | 10–28.8V DC |
| Connection Type | M12 Quick Disconnect |
| Connector Style | DC Micro (M12) |
| Housing Material | Die-Cast Zinc |
| Protection Rating | IP67 |
| Mounting Type | Machine Mount |
| Operating Temperature | -20°C to +60°C |
| Shock Resistance | 30 g |
| Vibration Resistance | 5 g |
| Dimensions (L × W × H) | 224 × 58 × 39 mm |
| Weight | 0.95 kg |
| Certifications | CE, UL, cULus, ODVA |
| Product Status | Discontinued |
| Replacement Model | 1732E-16CFGM12 |
FAQ
FAQ
Q1: What is the main function of the 1732E-IB16M12 module?
The module provides 16 digital sinking inputs for distributed industrial EtherNet/IP I/O systems.
Q2: What communication protocol does the module use?
It communicates through EtherNet/IP networks.
Q3: How many input channels are included?
The unit includes 16 digital input channels.
Q4: What type of connector is used on the module?
The module uses M12 DC Micro quick-disconnect connectors.
Q5: Is the 1732E-IB16M12 suitable for harsh industrial environments?
Yes, the module features an IP67-rated die-cast housing for machine-mount applications.
Q6: Does the module support DIN rail mounting?
No, the unit is designed for direct machine mounting instead of DIN rail installation.
Q7: What are the dimensions and weight of the unit?
The dimensions are 224 × 58 × 39 mm, and the weight is approximately 0.95 kg.
Q8: Is the 1732E-IB16M12 still available?
No, the product has been discontinued and replaced by the 1732E-16CFGM12 module.
