Technical Specifications
| Parameter | Specification |
|---|---|

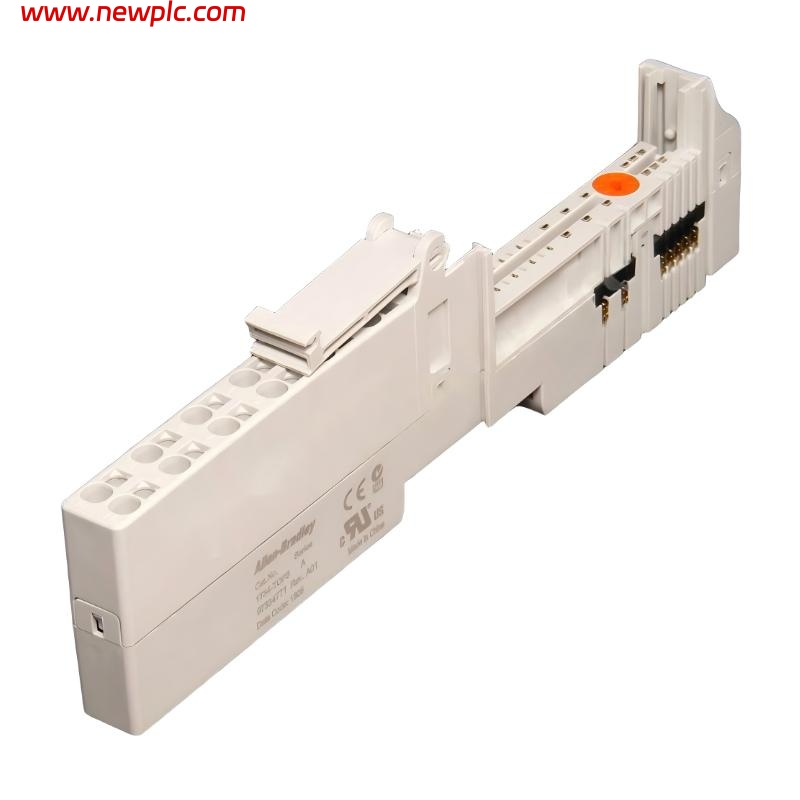

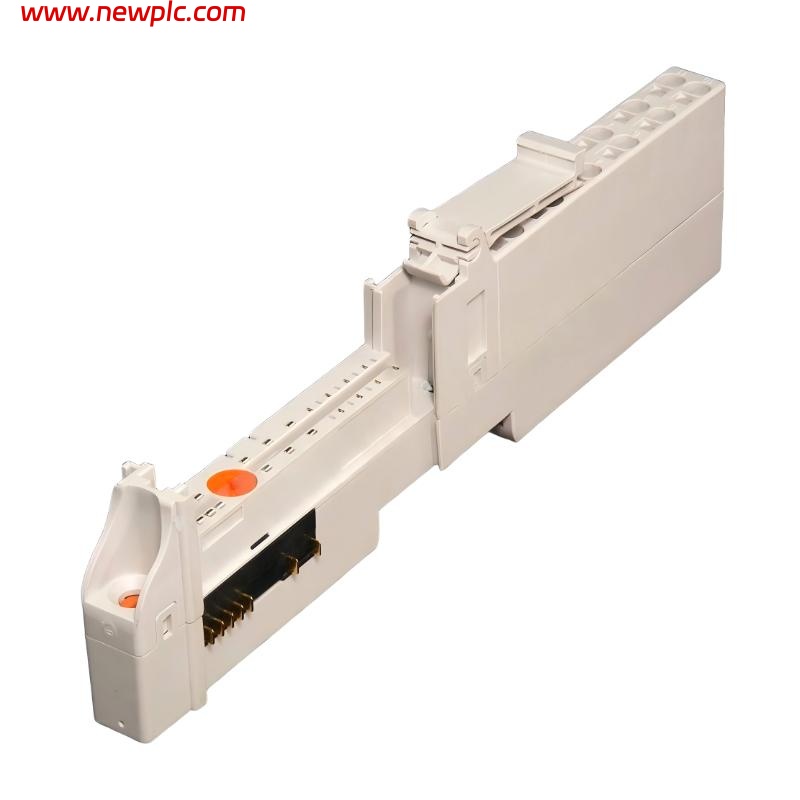

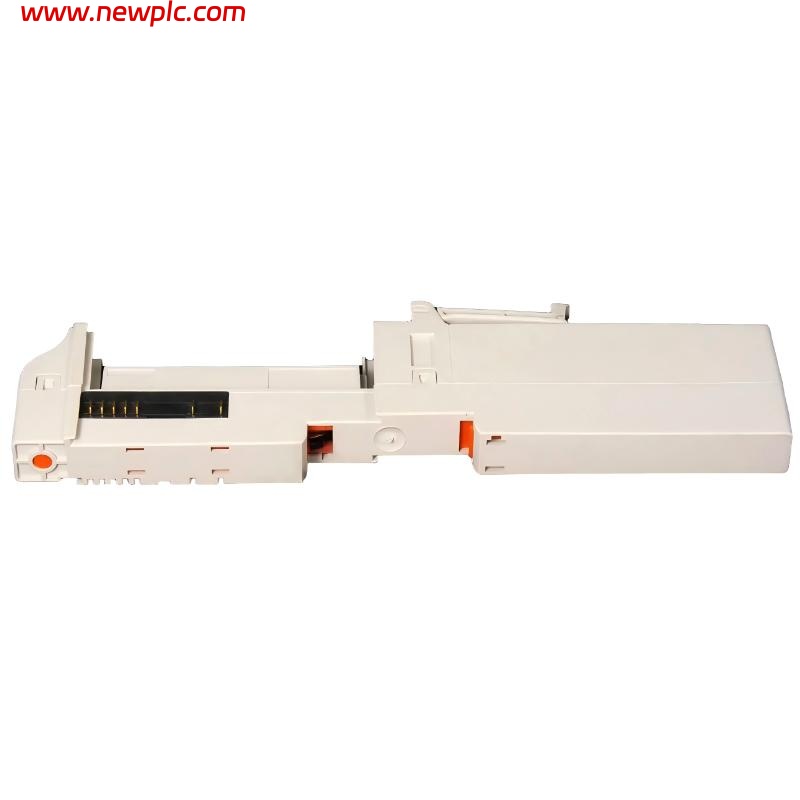

| Model | Allen-Bradley 1734-TOP3 |
| Product Type | POINT I/O Terminal Base |
| Series | Bulletin 1734 POINT I/O |
| Terminal Type | One-Piece Screw Clamp Terminal Base |
| Wiring Configuration | 8 Terminal Connections |
| Wire Size | 0.25–2.5 mm² (24–14 AWG) |
| Rated Voltage | 300V |
| Rated Current | 10 A |
| Connection Type | Screw Clamp |
| Mounting Type | DIN Rail |
| Compatible Modules | Bulletin 1734 POINT I/O Modules |
| Isolation Voltage | 250V Continuous |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | 75 × 12 × 70 mm |
| Weight | 0.05 kg |
| Certifications | CE, UL, cULus |
| Product Status | Active |
FAQ
FAQ
Q1: What is the purpose of the 1734-TOP3 terminal base?
The terminal base provides field wiring connections for Bulletin 1734 POINT I/O modules.
Q2: What type of terminal connection does the module use?
The 1734-TOP3 uses screw clamp terminal connections.
Q3: Is the 1734-TOP3 compatible with POINT I/O modules?
Yes, it is designed for use with compatible Bulletin 1734 POINT I/O modules.
Q4: What is the maximum rated current of the terminal base?
The terminal base supports up to 10 A current.
Q5: Does the 1734-TOP3 support DIN rail mounting?
Yes, it is designed for standard DIN rail installation.
Q6: What wire size can be used with the terminal base?
It supports wire sizes from 24 to 14 AWG.
Q7: What are the dimensions and weight of the unit?
The dimensions are 75 × 12 × 70 mm, and the weight is approximately 0.05 kg.
Q8: Is the 1734-TOP3 still available?
Yes, the product is currently listed as active within the Bulletin 1734 POINT I/O series.
