Technical Specifications
| Parameter | Specification |
|---|---|

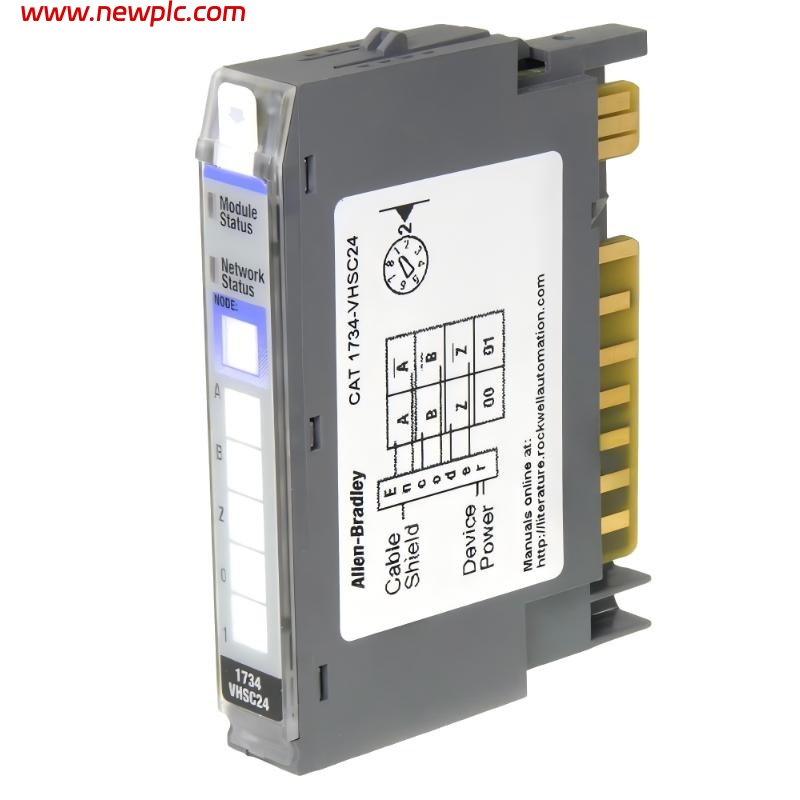

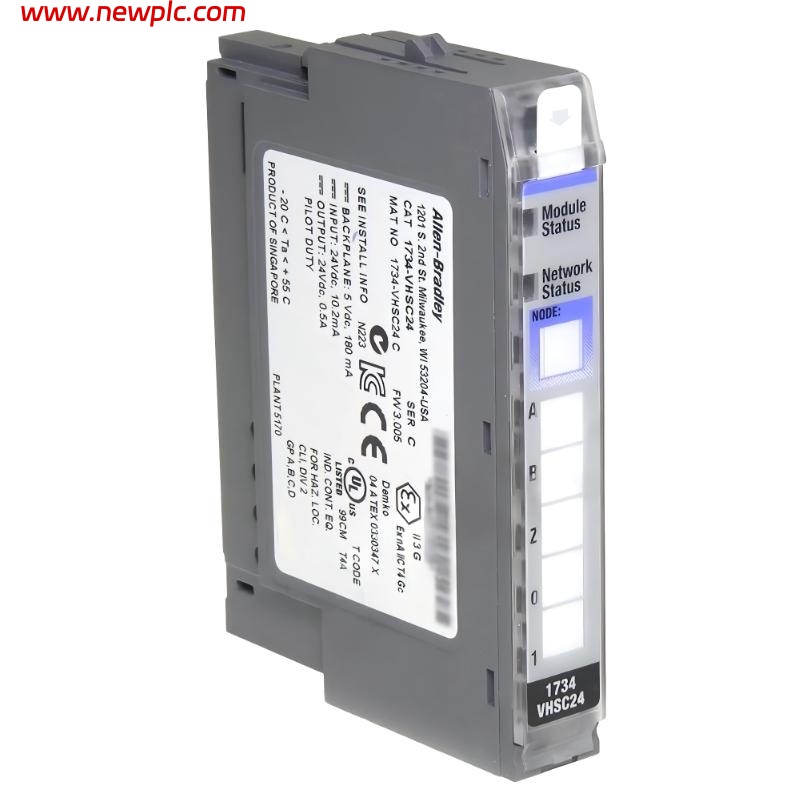

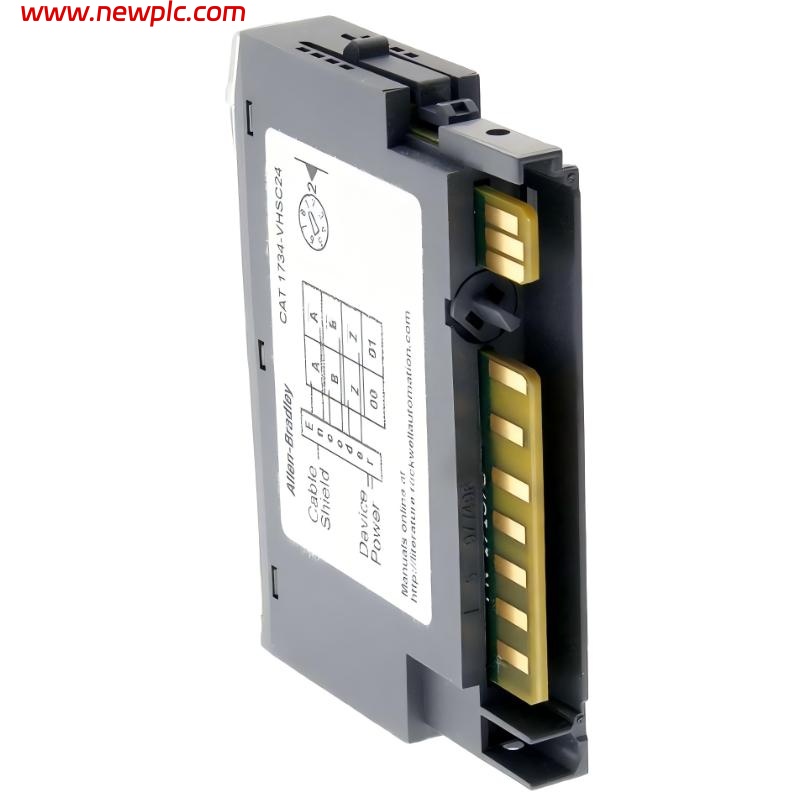

| Model | Allen-Bradley 1734-VHSC24 |
| Product Type | Very High-Speed Counter Module |
| Series | Bulletin 1734 POINT I/O |
| Number of Inputs | 2 High-Speed Inputs |
| Input Voltage | 24V DC |
| Voltage Range | 10–28.8V DC |
| Counter Frequency | Up to 1 MHz |
| Input Signal Type | Sink/Source |
| Output Type | 2 Digital Outputs |
| Backplane Current | 180 mA @ 5V DC |
| Isolation Voltage | 50V Continuous |
| Mounting Type | DIN Rail |
| Connection Type | Removable Terminal Base |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H × W × D) | 75 × 12 × 75.5 mm |
| Weight | 0.08 kg |
| Certifications | CE, UL, cULus, KC |
| Product Status | Active |
FAQ
FAQ
Q1: What is the main function of the 1734-VHSC24 module?
The module is designed for high-speed counting and frequency measurement applications in POINT I/O systems.
Q2: How many high-speed inputs are available?
The module includes 2 high-speed counter input channels.
Q3: What is the maximum counting frequency?
The module supports counting frequencies up to 1 MHz.
Q4: What input voltage does the 1734-VHSC24 require?
It operates on 24V DC with a voltage range of 10–28.8V DC.
Q5: Does the module support DIN rail mounting?
Yes, it is designed for standard DIN rail installation.
Q6: What type of signals can the module accept?
The module supports both sinking and sourcing input signals.
Q7: What are the dimensions and weight of the unit?
The dimensions are 75 × 12 × 75.5 mm, and the weight is approximately 0.08 kg.
Q8: Is the 1734-VHSC24 still available?
Yes, the product is currently listed as active within the Bulletin 1734 POINT I/O series.
