Technical Specifications
| Parameter | Specification |
|---|---|

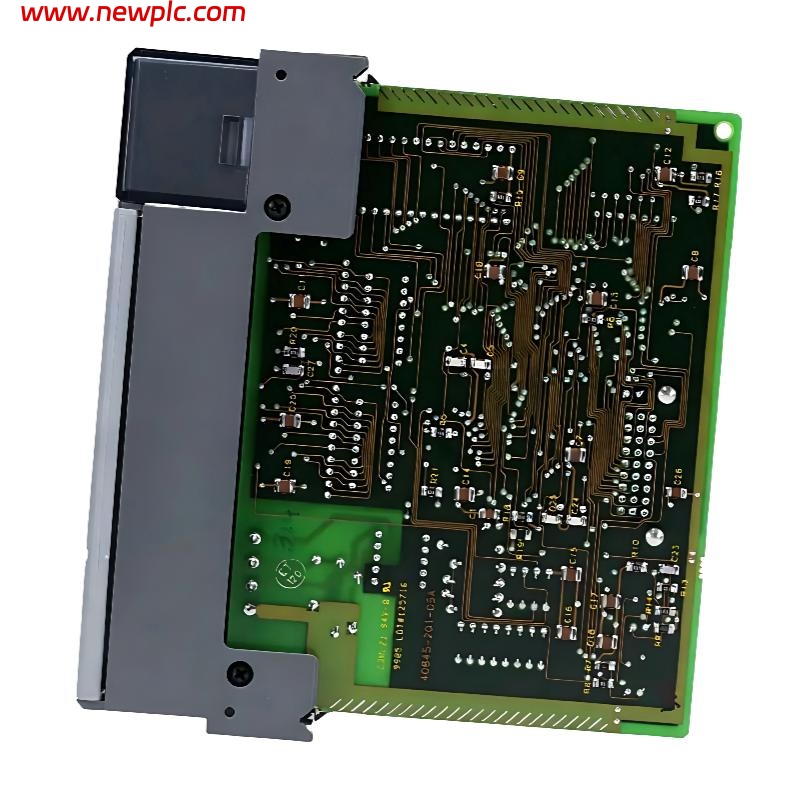

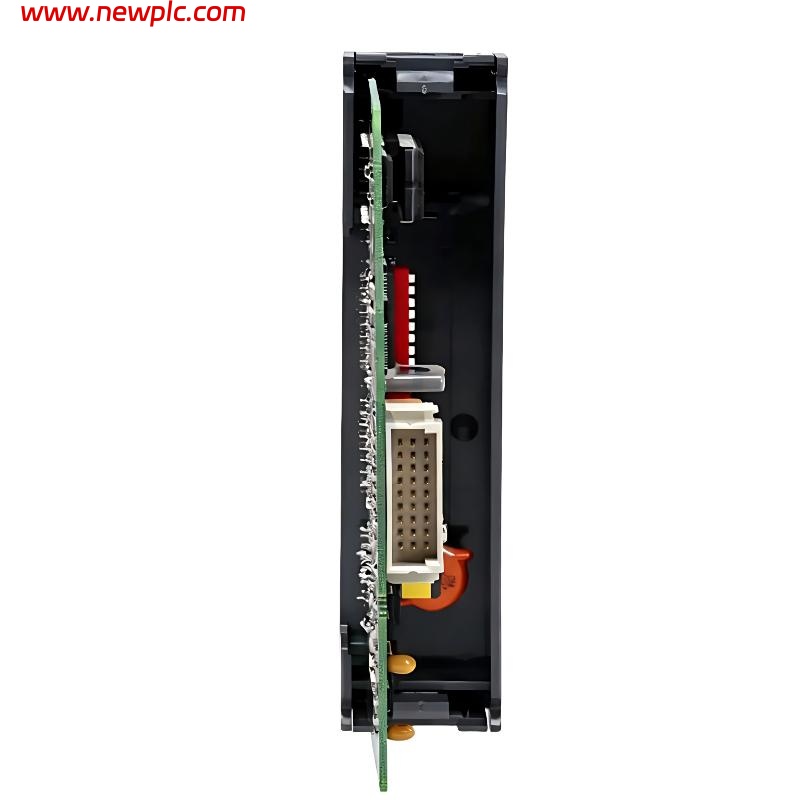

| Model | Allen-Bradley 1747-DCM/A |
| Product Type | Direct Communication Module |
| Series | SLC 500 |
| Communication Protocol | Remote I/O (RIO) |
| Communication Rates | 57.6 kbps, 115.2 kbps, 230.4 kbps |
| Communication Port | Universal Remote I/O Adapter |
| Connector Type | 6-Pin Phoenix Connector |
| Cable Type | Belden 9463 |
| Slot Requirement | 1 Slot |
| Backplane Current Consumption | 360 mA @ 5V DC |
| Addressing Modes | Standard and Extended Node |
| Supported Controllers | SLC 500 Fixed and Modular Controllers |

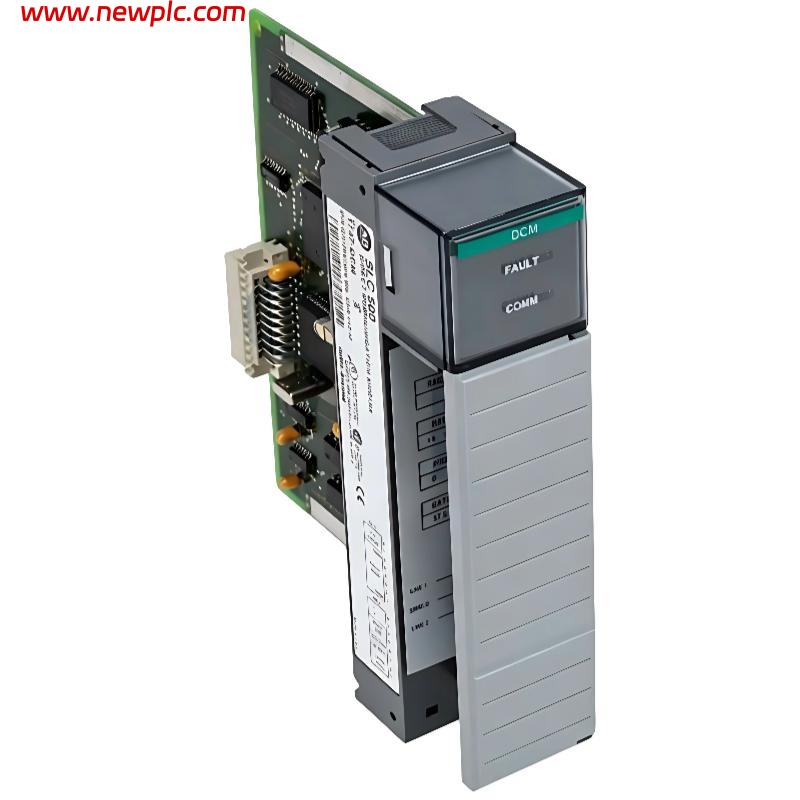

| Status Indicators | FAULT LED, COMM LED |
| Mounting Type | SLC 500 Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 131 mm |
| Weight | 0.17 kg |
| Certifications | UL, CE, CSA |
FAQ
FAQ
Q1: What is the primary function of the 1747-DCM/A module?
The module enables communication between SLC 500 controllers and supervisory PLC systems over a Remote I/O network.
Q2: What communication speeds are supported?
It supports 57.6 kbps, 115.2 kbps, and 230.4 kbps RIO communication rates.
Q3: What type of connector does the module use?
The module uses a 6-pin Phoenix connector with Belden 9463 communication cable.
Q4: How much backplane current does the module consume?
The module requires 360 mA from the 5V DC backplane supply.
Q5: Which controllers are compatible with the 1747-DCM/A?
It is compatible with Allen-Bradley SLC 500 fixed and modular PLC systems.
Q6: What status indicators are included on the module?
The module includes FAULT and COMM LED indicators for diagnostics and communication status.
Q7: What are the dimensions and weight of the unit?
The dimensions are 145 × 35 × 131 mm, and the weight is approximately 0.17 kg.
Q8: Is the 1747-DCM/A still available?
No, the product has been discontinued and is mainly available through surplus or refurbished inventory suppliers.
