Technical Specifications
| Parameter | Specification |
|---|---|

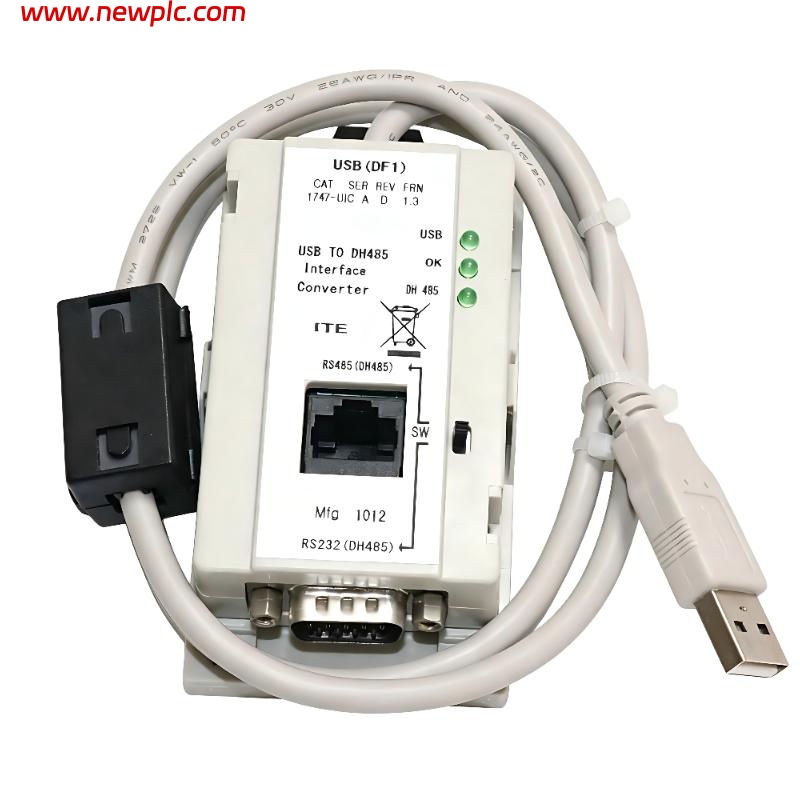

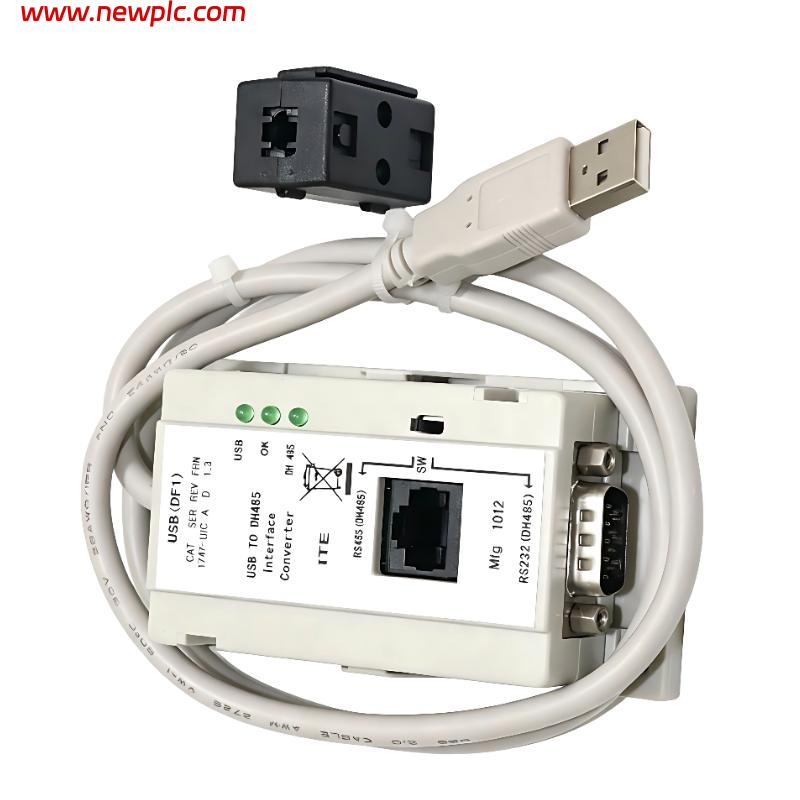

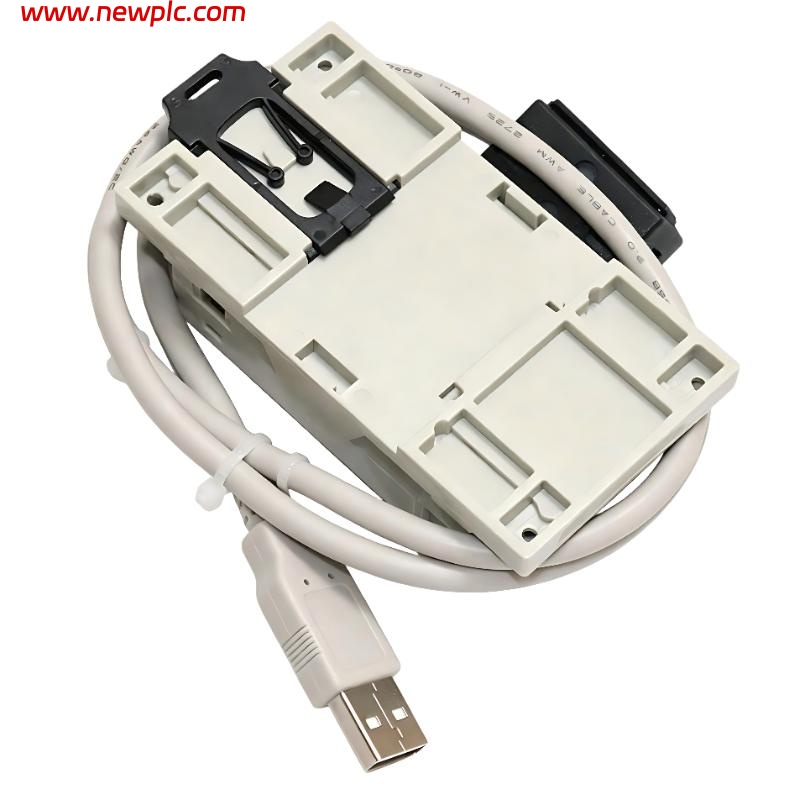

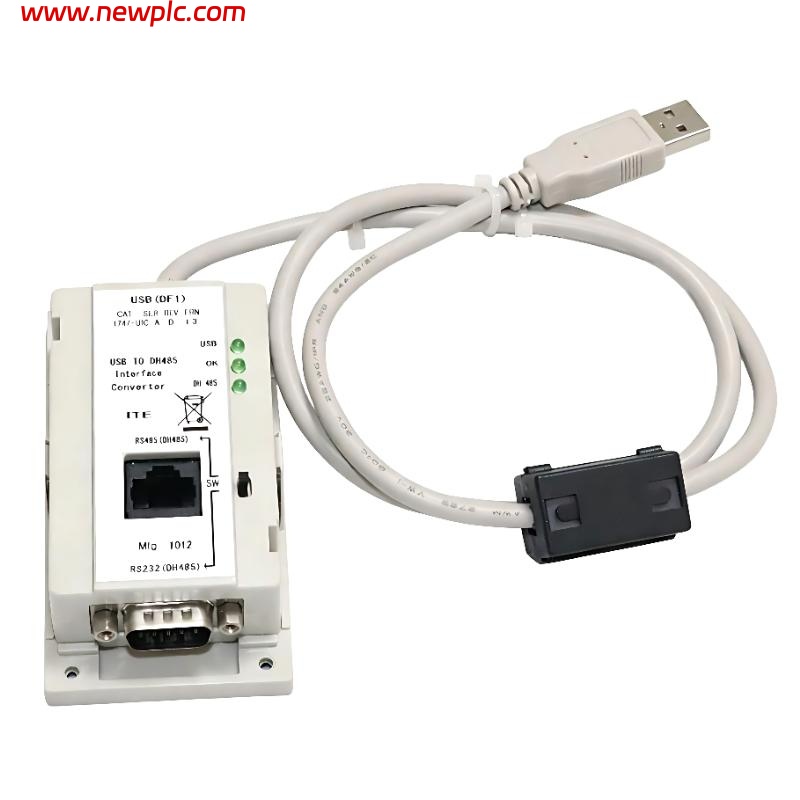

| Model | Allen-Bradley 1747-UIC |
| Product Type | USB to DH-485 Interface Converter |
| Series | SLC 500 / MicroLogix |
| Interface Type | USB to DH-485 |
| Supported Protocol | DH-485 |
| USB Standard | USB 1.1 / 2.0 Compatible |
| Communication Speed | 19.2 kbps |
| Connector Type | USB Type-B and 6-Pin Phoenix Connector |
| Compatible Controllers | SLC 5/03, SLC 5/04, SLC 5/05, MicroLogix, PanelView |
| Power Supply | Powered via USB Port |
| LED Indicators | USB, RS-485 Status LEDs |
| Isolation Voltage | 500V DC |
| Cable Length | 1 m USB Cable |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 118 × 30 × 87 mm |
| Weight | 0.18 kg |
| Certifications | UL, CE, CSA |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1747-UIC module?
The module converts USB communication to DH-485 protocol for connecting computers to Allen-Bradley controllers.
Q2: Which communication protocol does the device support?
It supports the DH-485 industrial communication protocol.
Q3: Which controllers are compatible with the 1747-UIC?
It is compatible with SLC 500, MicroLogix, and PanelView devices using DH-485 communication.
Q4: Does the module require an external power supply?
No, the unit is powered directly through the USB connection.
Q5: What type of USB connection is used?
The module uses a standard USB Type-B connector and supports USB 1.1 and 2.0.
Q6: Are status indicators included on the device?
Yes, the module includes USB and RS-485 communication status LEDs.
Q7: What are the dimensions and weight of the unit?
The dimensions are 118 × 30 × 87 mm, and the weight is approximately 0.18 kg.
Q8: Is the 1747-UIC still available?
Yes, the product is currently available and widely used for legacy SLC 500 and MicroLogix communication applications.
