Technical Specifications
| Parameter | Specification |
|---|---|

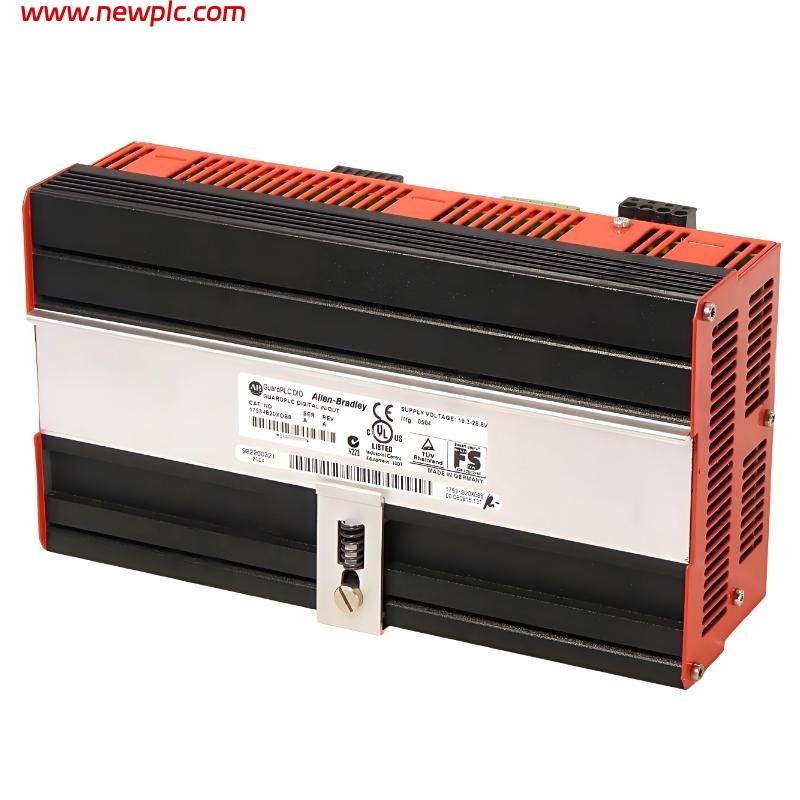

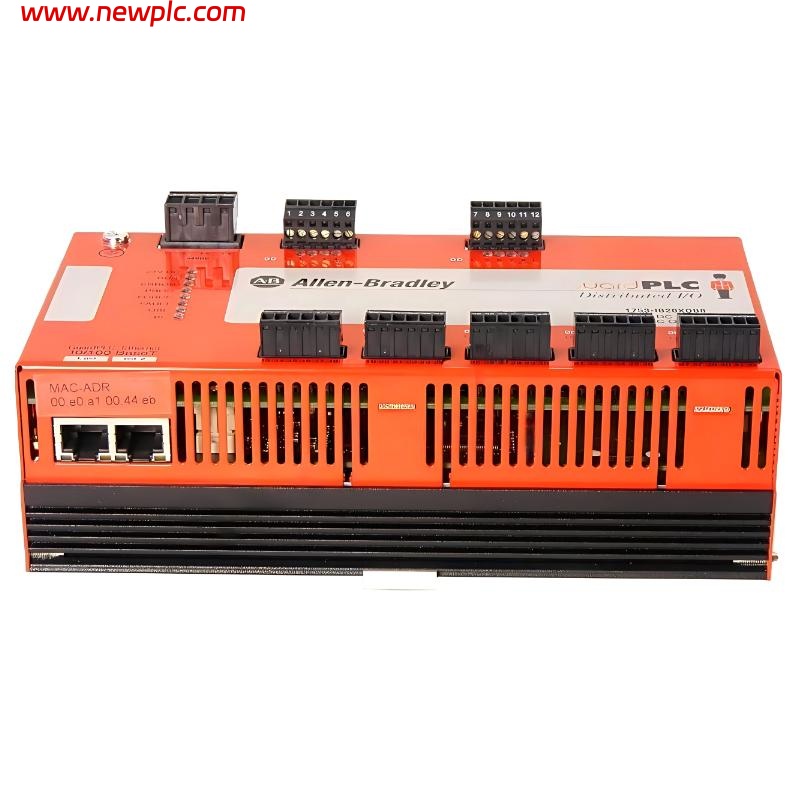

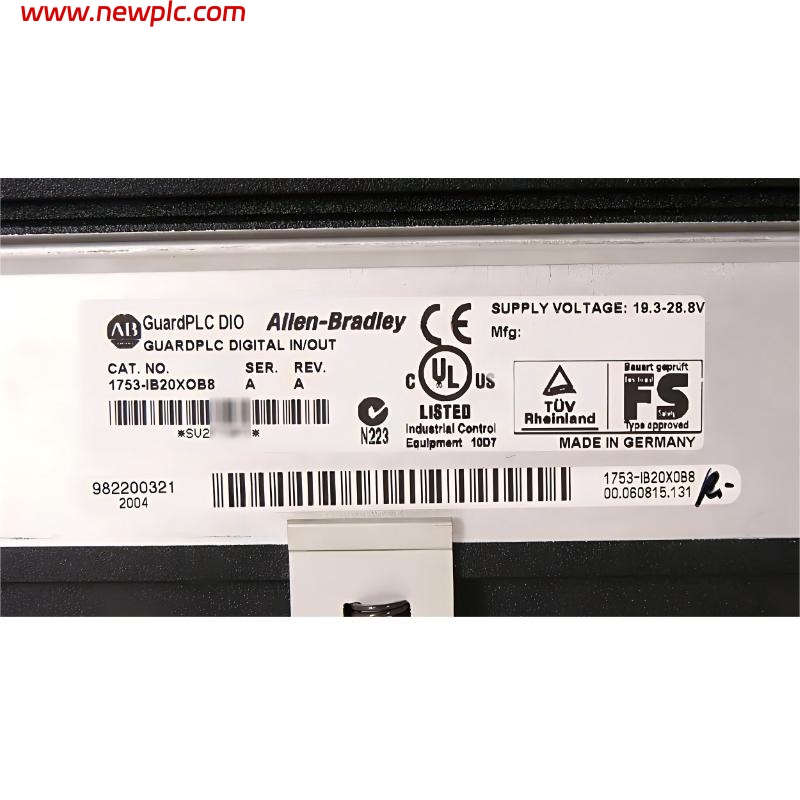

| Model | Allen-Bradley 1753-IB20XOB8 |
| Product Type | GuardPLC Digital Input/Output Module |
| Series | GuardPLC 1800 |
| Number of Inputs | 20 Digital Inputs |
| Number of Outputs | 8 Digital Outputs |
| Input Voltage | 24V DC |
| Output Voltage | 24V DC |
| Input Type | Sink/Source Compatible |
| Output Type | PNP Transistor Outputs |
| Maximum Output Current | 0.5 A per Output |
| Isolation Voltage | 500V |
| Backplane Current Consumption | 250 mA @ 5V DC |
| Response Time | 10 ms Typical |
| Mounting Type | DIN Rail Mount |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 120 × 40 × 125 mm |
| Weight | 0.35 kg |
| Certifications | UL, CE, TÜV |
FAQ
FAQ
Q1: What is the primary function of the 1753-IB20XOB8 module?
The module provides integrated digital input and output control for GuardPLC safety automation systems.
Q2: How many digital inputs and outputs are available?
The module includes 20 digital inputs and 8 digital outputs.
Q3: What operating voltage does the module use?
It operates with 24V DC input and output signals.
Q4: What type of outputs are provided?
The module features PNP transistor-based digital outputs.
Q5: Which systems are compatible with the 1753-IB20XOB8?
It is designed for Allen-Bradley GuardPLC 1800 safety controller platforms.
Q6: What is the typical response time of the module?
The typical signal response time is 10 ms.
Q7: What are the dimensions and weight of the unit?
The dimensions are 120 × 40 × 125 mm, and the weight is approximately 0.35 kg.
Q8: Is the 1753-IB20XOB8 still available?
No, the product has been discontinued and replaced by newer GuardLogix safety solutions.
