Technical Specifications
| Parameter | Specification |
|---|---|

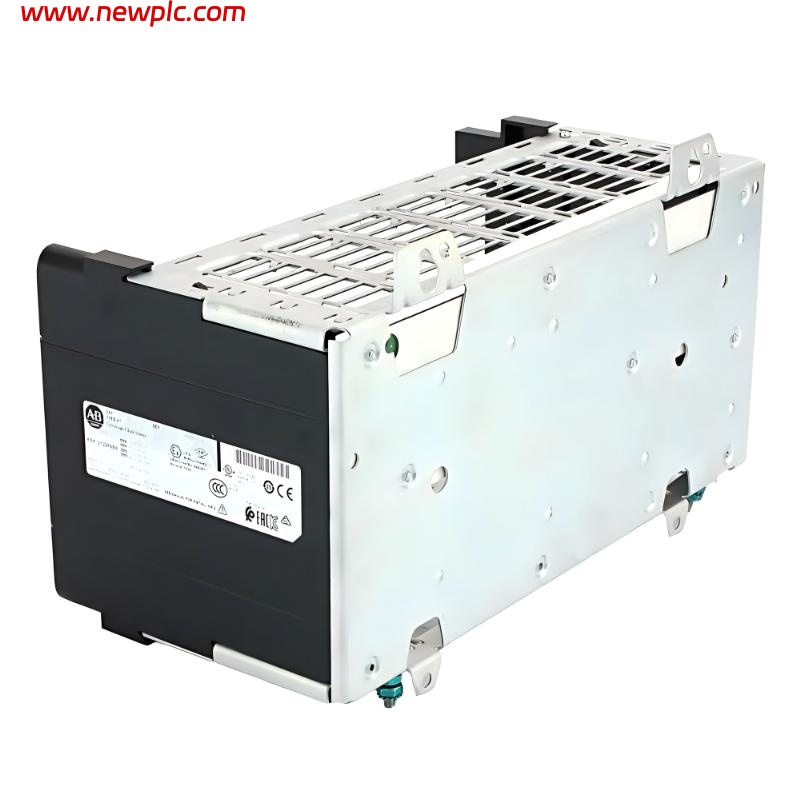

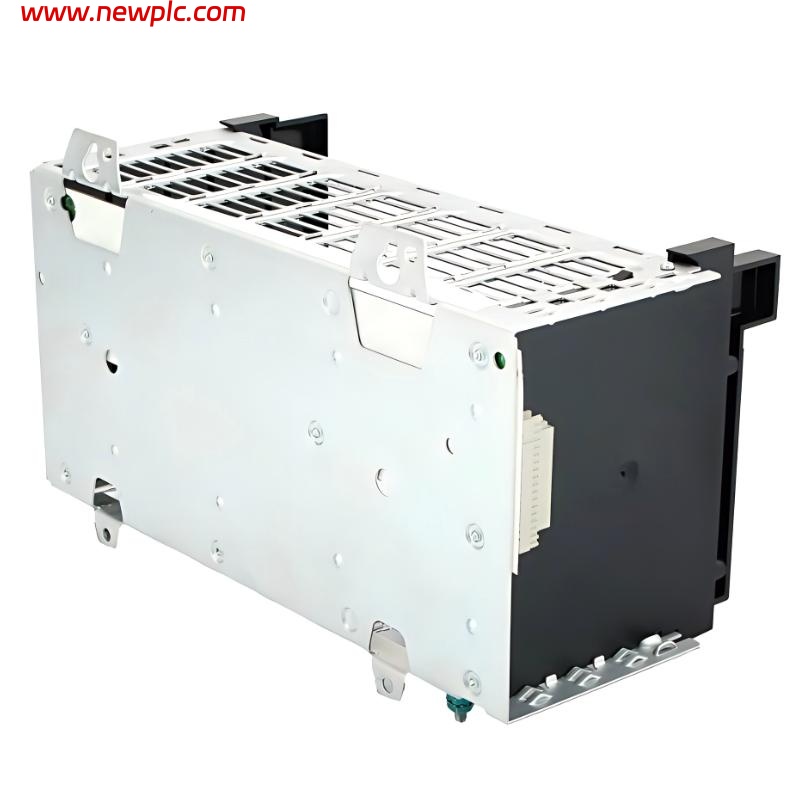

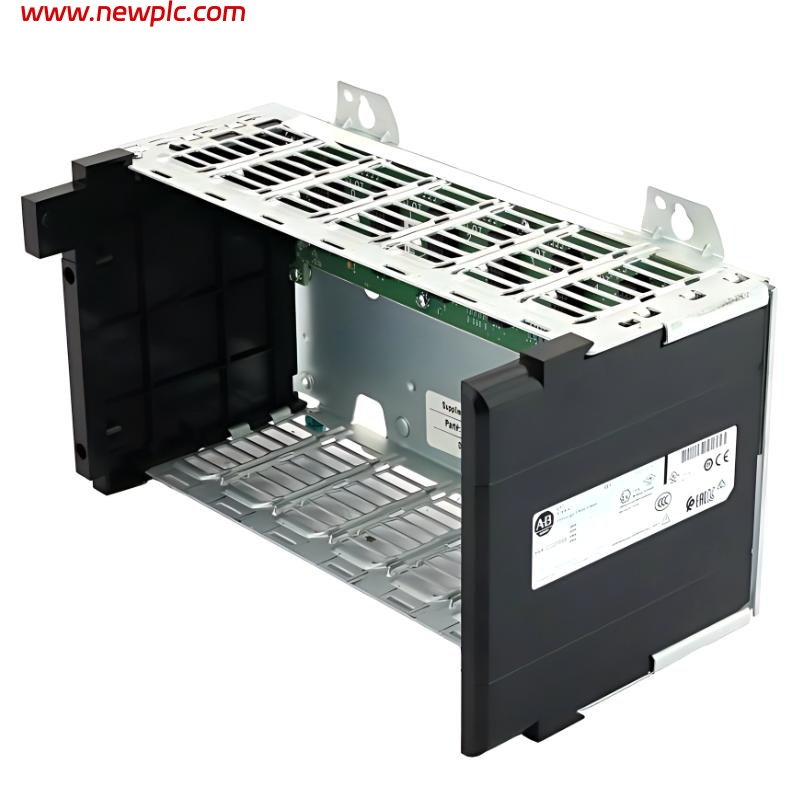

| Model | Allen-Bradley 1756-A7 |
| Product Type | ControlLogix Chassis |
| Series | ControlLogix |
| Number of Slots | 7 Slots |
| Chassis Type | Standard ControlLogix Chassis |
| Backplane Current Capacity | 1.5 A @ 1.2V DC, 4 A @ 3.3V DC, 15 A @ 5.1V DC, 2.8 A @ 24V DC |
| Compatible Power Supplies | 1756-PA72, 1756-PB72, 1756-PA75, 1756-PB75 |
| Mounting Type | Panel Mount |
| Isolation Voltage | 30V Continuous |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Shock Resistance | 30 g Operating |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Slot Spacing | Standard ControlLogix |
| Dimensions (H × W × D) | 250 × 367 × 145 mm |
| Weight | 2.70 kg |
| Certifications | UL, CE, CSA, FM |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-A7 chassis?
The chassis provides a 7-slot platform for installing ControlLogix controllers, communication modules, and I/O modules.
Q2: How many slots are available in the chassis?
The chassis includes 7 available module slots.
Q3: Which power supplies are compatible with the 1756-A7?
It is compatible with 1756-PA72, 1756-PB72, 1756-PA75, and 1756-PB75 power supplies.
Q4: What mounting type does the chassis use?
The chassis is designed for panel mounting installations.
Q5: What operating temperature range does the chassis support?
The operating temperature range is 0°C to +60°C.
Q6: Does the chassis support all standard ControlLogix modules?
Yes, it supports standard Allen-Bradley ControlLogix controllers, communication, and I/O modules.
Q7: What are the dimensions and weight of the unit?
The dimensions are 250 × 367 × 145 mm, and the weight is approximately 2.70 kg.
Q8: Is the 1756-A7 still available?
Yes, the product is currently active within the ControlLogix chassis family.
