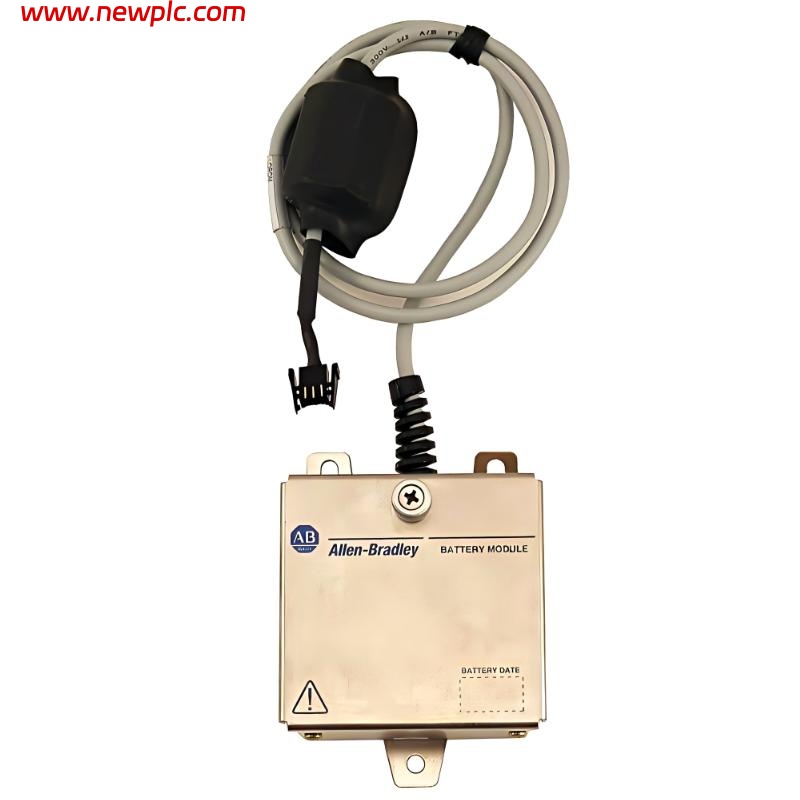

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Allen-Bradley 1756-BATM |
| Product Type | ControlLogix Battery Module |
| Series | ControlLogix |
| Battery Type | Externally Mounted Lithium Battery Module |
| Compatible Controllers | ControlLogix 5560 Series Controllers |
| Replacement Battery | 1756-BATA |
| Input Power | 15 mA @ 5.1V DC |
| Output Power | 20 mA @ 3.6V DC |
| Maximum Discharge Current | 20 mA |
| Cable Length | 1 m |
| Mounting Type | Panel Mount or DIN Rail Mount |
| Enclosure Type | Open Style |
| Shock Resistance | 30 g Panel Mounted / 15 g DIN Rail Mounted |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | ≤30°C Recommended |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 114 × 32 × 137 mm |
| Weight | 1.08 kg |
| Certifications | UL, CE, ATEX |
FAQ
FAQ
Q1: What is the primary function of the 1756-BATM module?
The module provides backup battery power for ControlLogix controllers to retain memory and real-time clock data during power loss.
Q2: Which controllers are compatible with the 1756-BATM?
It is designed for use with Allen-Bradley ControlLogix 5560 series controllers.

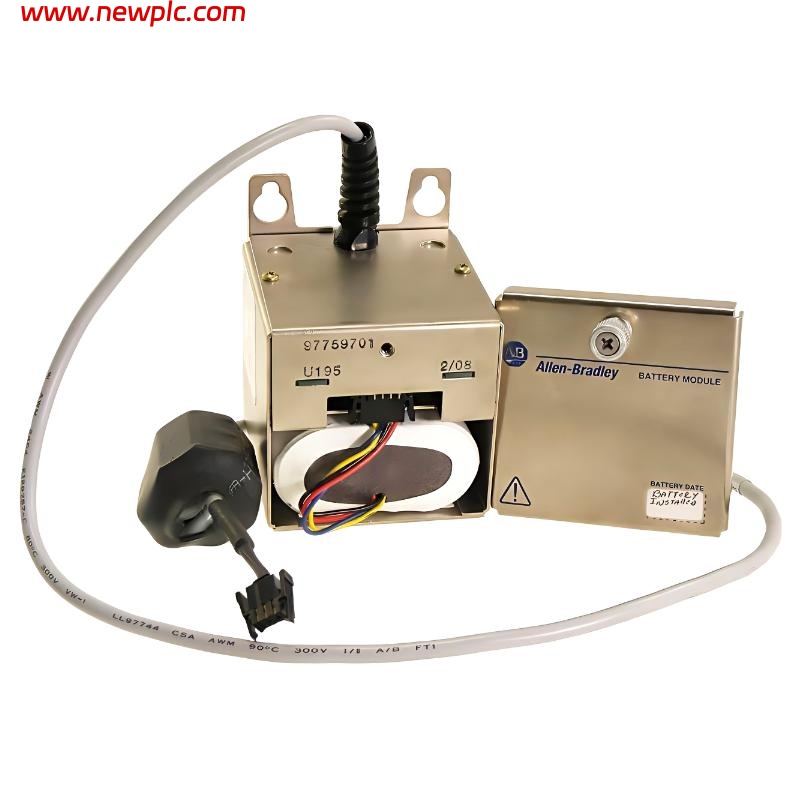

Q3: What type of battery does the module use?
The module uses the 1756-BATA lithium replacement battery assembly.
Q4: What is the maximum output current of the battery module?
The module provides a maximum output current of 20 mA at 3.6V DC.

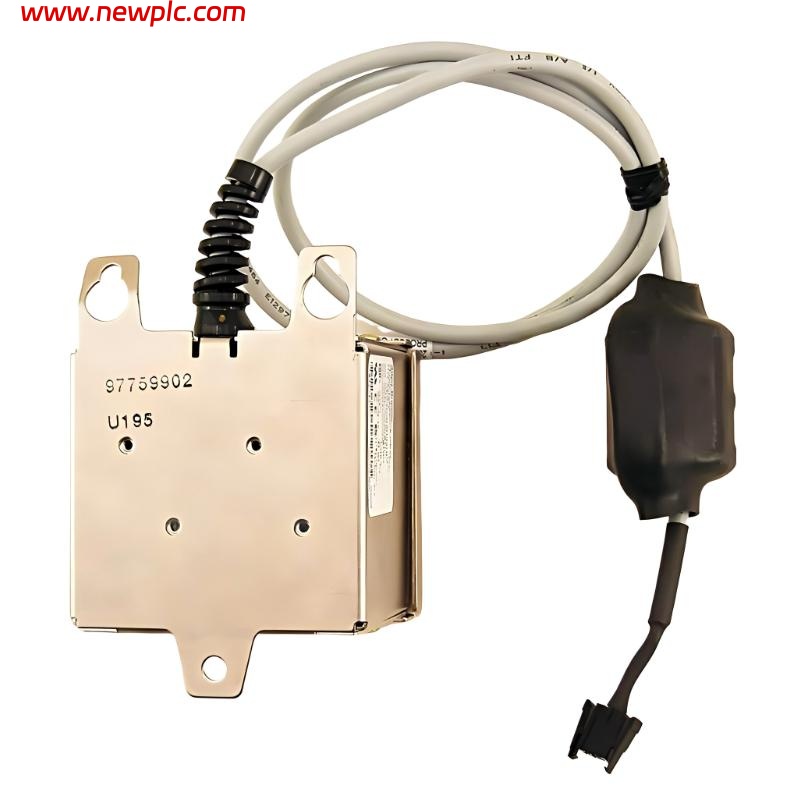

Q5: How is the 1756-BATM installed?
The unit can be mounted directly on a panel or installed on a DIN rail.
Q6: What environmental conditions does the module support?
It operates in temperatures from 0°C to +60°C with 5–95% non-condensing humidity.
Q7: What are the dimensions and weight of the unit?
The dimensions are 114 × 32 × 137 mm, and the weight is approximately 1.08 kg.
Q8: Is the 1756-BATM still available?
No, Rockwell Automation officially discontinued the product on July 18, 2017, with no direct replacement announced.
