Technical Specifications
| Parameter | Specification |
|---|---|

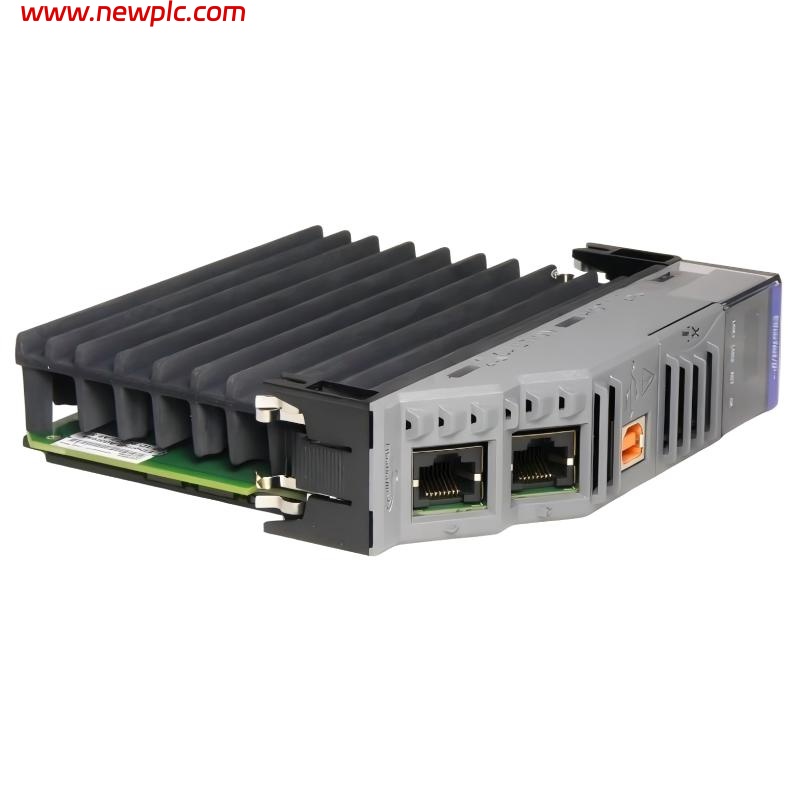

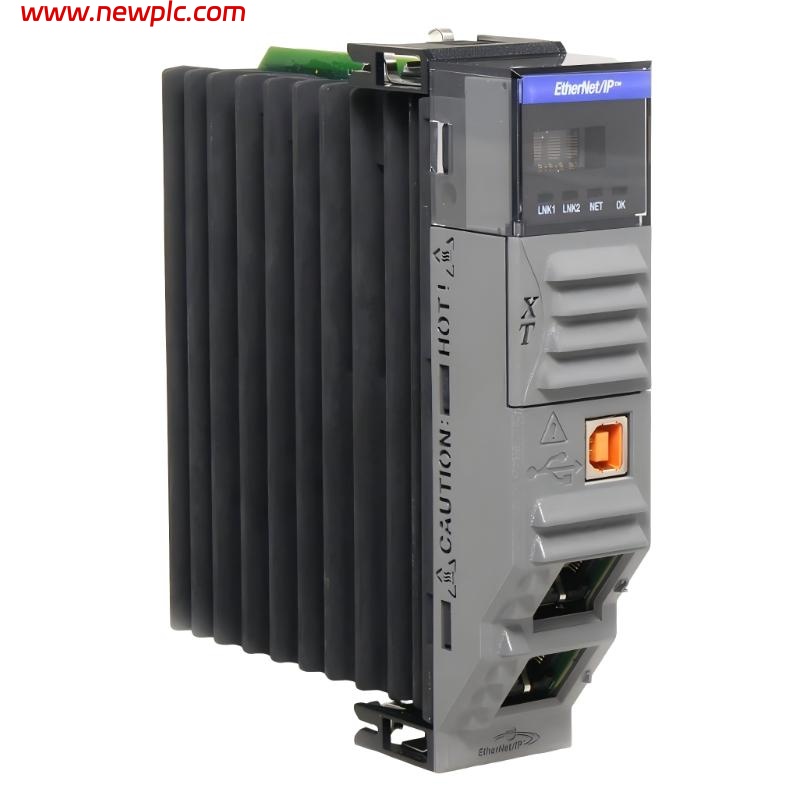

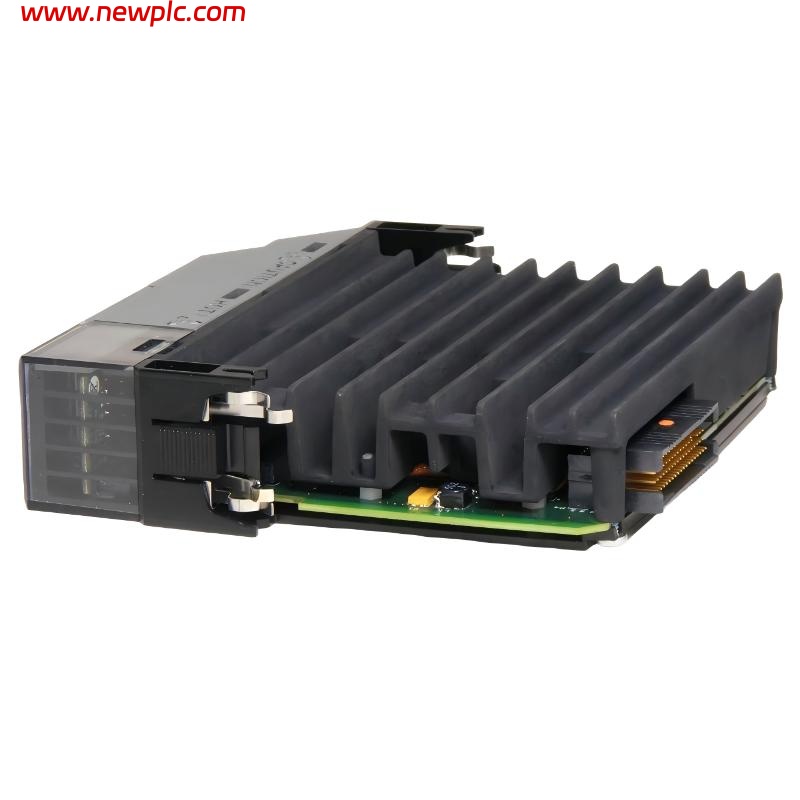

| Model | Allen-Bradley 1756-EN2TRXT |
| Product Type | EtherNet/IP Communication Module |
| Series | ControlLogix-XT |
| Communication Protocol | EtherNet/IP |
| Ethernet Interface | 2 Copper RJ45 Ports |
| Communication Speed | 10/100 Mbps |
| Network Topologies | Device Level Ring (DLR), Linear |
| Maximum TCP/IP Connections | 128 Connections |
| Maximum Logix Connections | 256 Connections |
| Supported Motion Axes | Up to 8 Axes |
| Special Features | Extended Temperature, Embedded Switch |
| Backplane Current Consumption | 1 A @ 5.1V DC |
| Power Dissipation | 5.1 W |
| Thermal Dissipation | 17.4 BTU/hr |
| Isolation Voltage | 30V Continuous |
| USB Port | USB 1.1 Full Speed |
| Mounting Type | ControlLogix Chassis Mount |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.30 kg |
| Certifications | UL, CE, CSA, ATEX, IECEx |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-EN2TRXT module?
The module provides EtherNet/IP communication for ControlLogix-XT systems operating in harsh industrial environments.
Q2: How many Ethernet ports are available on the module?
The module includes two 10/100 Mbps RJ45 Ethernet ports with an embedded switch.
Q3: What network topologies are supported?
It supports Device Level Ring (DLR) and linear Ethernet network topologies.
Q4: What is the operating temperature range of the module?
The module is designed for extreme environments with an operating range of -25°C to +70°C.
Q5: How many communication connections are supported?
The module supports up to 128 TCP/IP connections and 256 Logix communication connections.
Q6: Does the module support motion control applications?
Yes, the module supports integrated motion applications with up to 8 axes.
Q7: What are the dimensions and weight of the unit?
The dimensions are 145 × 35 × 140 mm, and the weight is approximately 0.30 kg.
Q8: Is the 1756-EN2TRXT still available?
Yes, the product is currently listed as active by Rockwell Automation.
