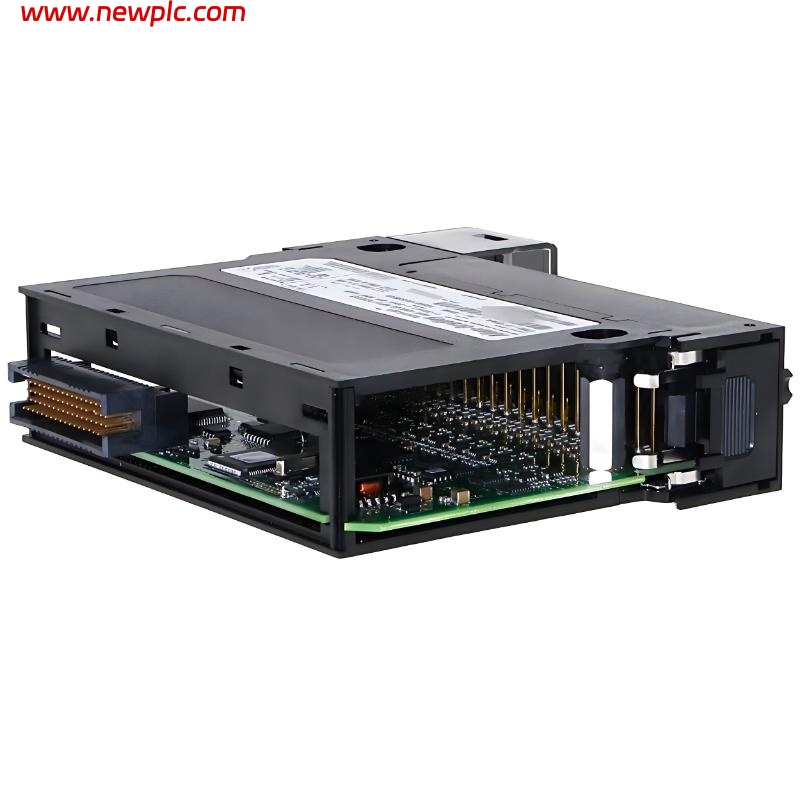

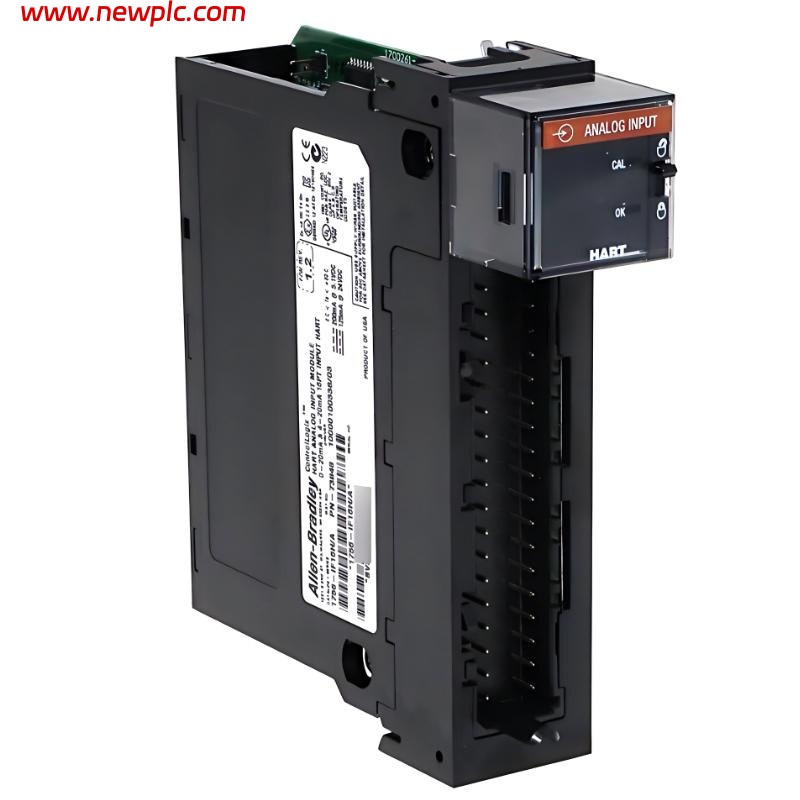

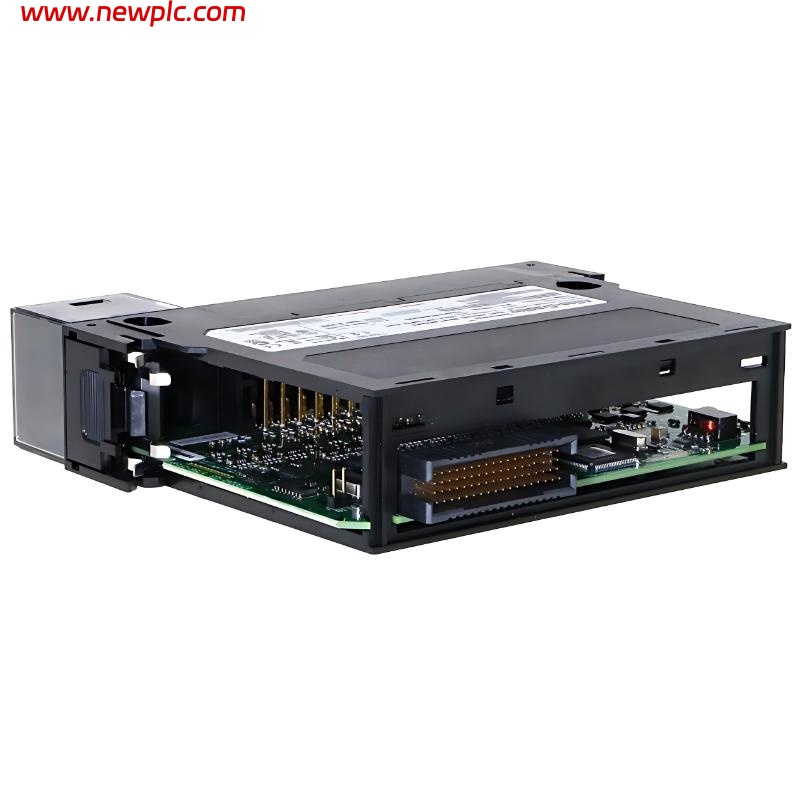

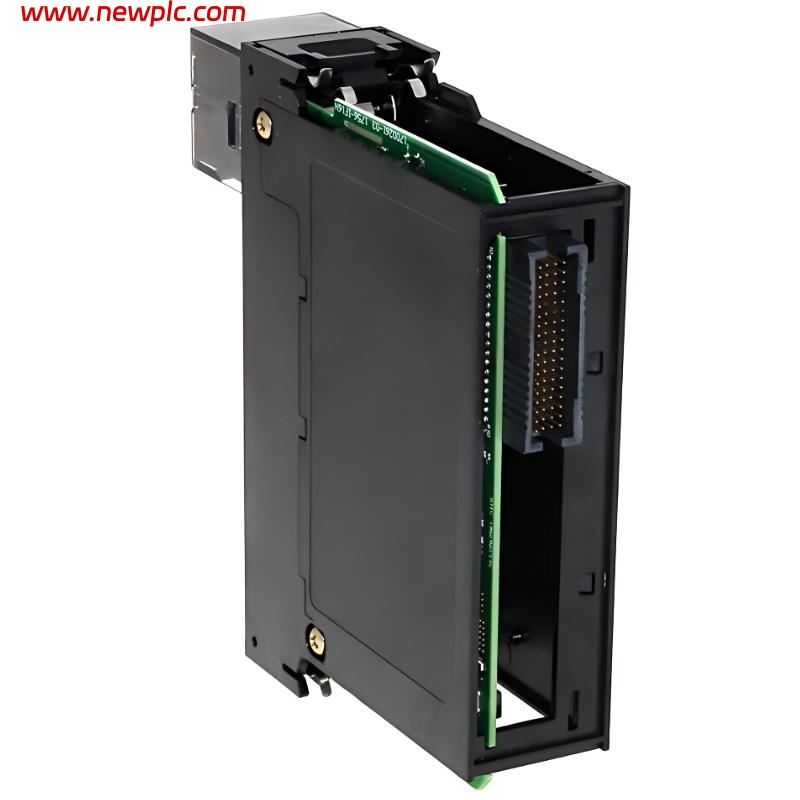

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Allen-Bradley 1756-IF16H |
| Product Type | Analog Input Module with HART |
| Series | ControlLogix |
| Number of Inputs | 16 Differential Inputs |
| Input Signal Range | 0–20 mA, 4–20 mA |
| Communication Protocol | HART (Highway Addressable Remote Transducer) |
| HART Support | One Dedicated HART Modem per Channel |
| Resolution | 16–21 Bits |
| Conversion Method | Successive Approximation ADC |
| Data Formats | Integer, IEEE 32-bit Floating Point |
| Input Scan Time | 11–328 ms (Filter Dependent) |
| HART Scan Time | Approx. 1 s with All Channels Enabled |
| Input Impedance | 249 Ω |
| Overvoltage Protection | 8V DC |
| Isolation Voltage | 50V Continuous |
| Backplane Current Consumption | 200 mA @ 5.1V DC, 125 mA @ 24V DC |
| Total Backplane Power | 4.02 W |
| Power Dissipation | 6 W Maximum |
| Thermal Dissipation | 12 BTU/hr |
| Compatible RTB | 1756-TBCH, 1756-TBS6H |
| Mounting Type | ControlLogix Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.35 kg |
| Certifications | UL, CE, CSA, ATEX, IECEx |
| Product Status | Active |
FAQ
FAQ
Q1: What is the primary function of the 1756-IF16H module?
The module provides 16 analog current input channels with integrated HART communication for ControlLogix systems.
Q2: What analog signal ranges are supported?
It supports both 0–20 mA and 4–20 mA current input signals.
Q3: Does every channel support HART communication?
Yes, each input channel has its own dedicated HART modem and can communicate as a primary HART master.
Q4: What is the module resolution?
The module supports 16–21 bit analog resolution using successive approximation conversion.
Q5: Which removable terminal blocks are compatible?
Compatible RTBs are 1756-TBCH and 1756-TBS6H.
Q6: What diagnostic features are included?
The module supports underrange detection, overrange detection, wire-off detection, real-time sampling, and HART diagnostics.
Q7: What are the dimensions and weight of the unit?
The module dimensions are approximately 145 × 35 × 140 mm with a weight of about 0.35 kg.
Q8: Is the 1756-IF16H still available?
Yes, Rockwell Automation currently lists the 1756-IF16H as an active product.
