Technical Specifications
| Parameter | Specification |
|---|---|

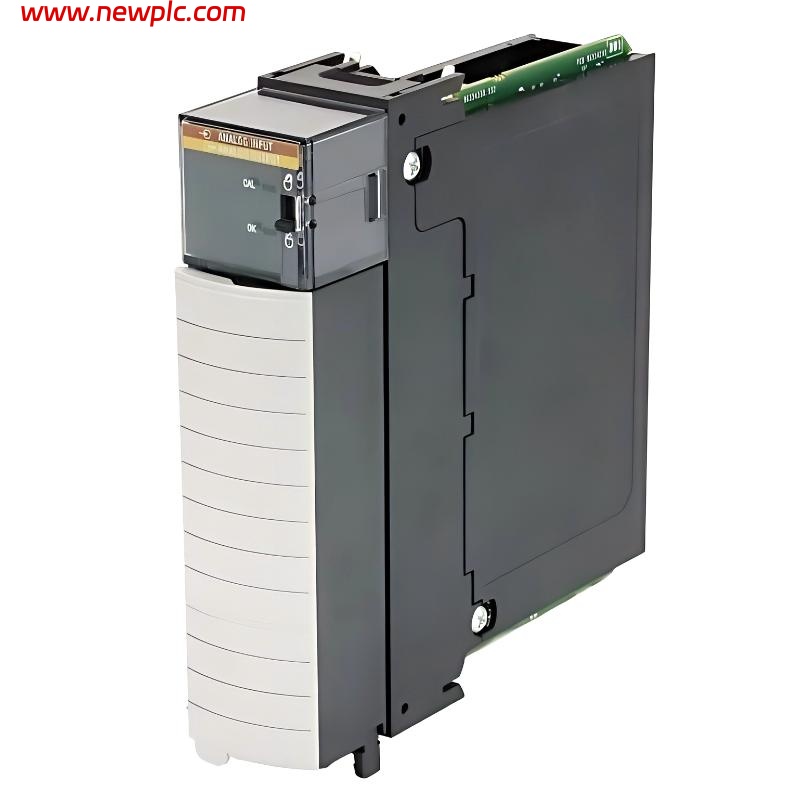

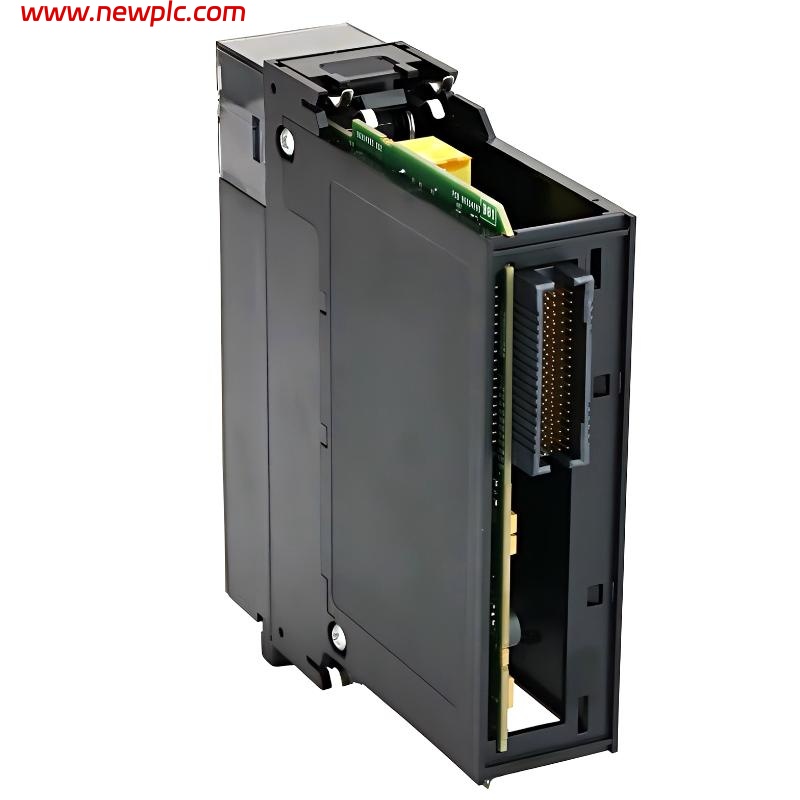

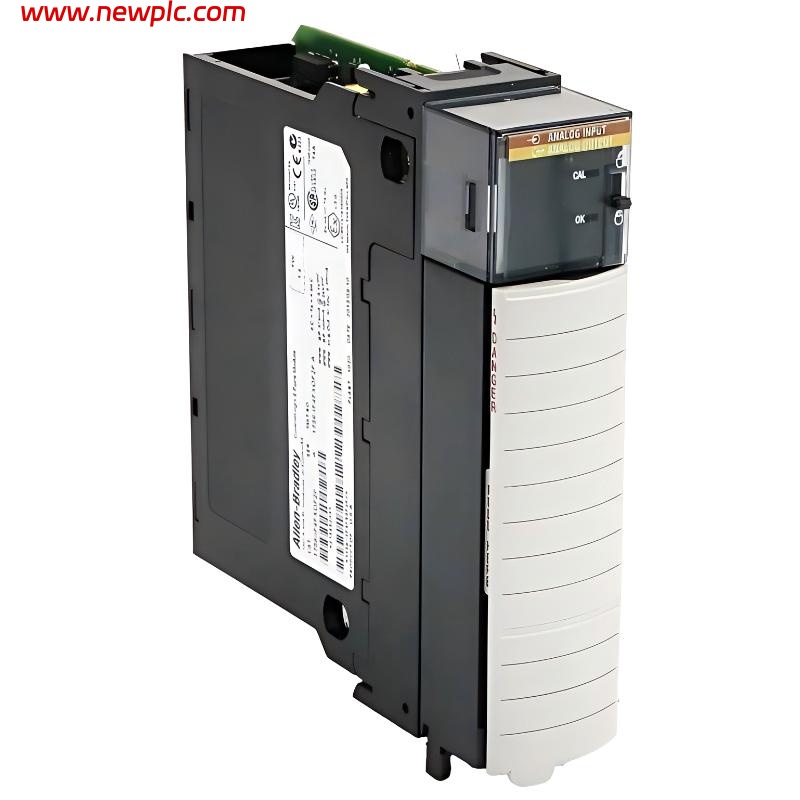

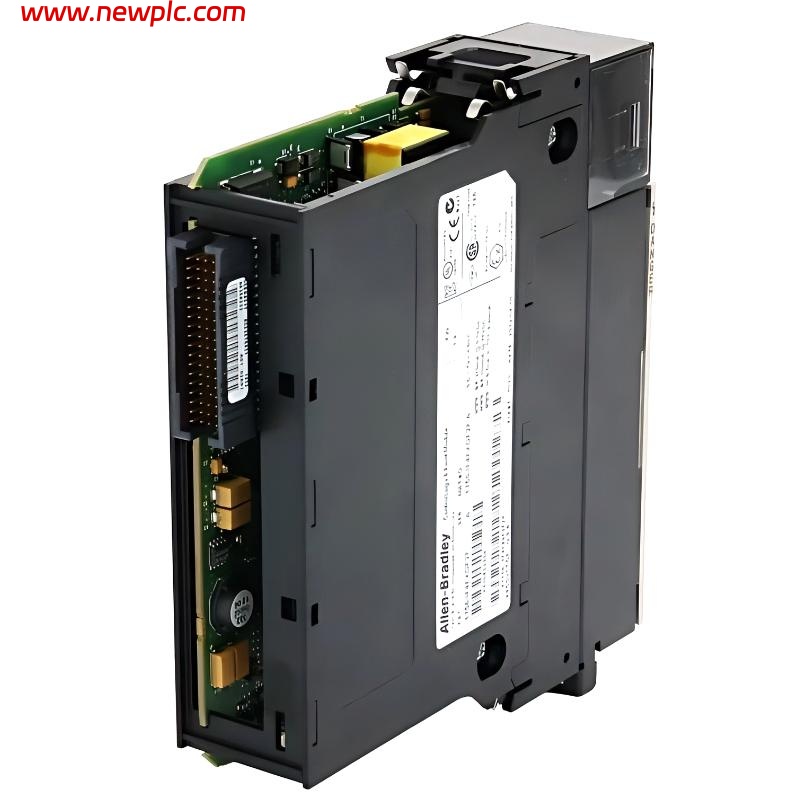

| Model | Allen-Bradley 1756-IF4FXOF2F |
| Product Type | Fast Analog Combination Module |
| Series | ControlLogix |
| Analog Inputs | 4 Differential Inputs |
| Analog Outputs | 2 Fast Outputs |
| Input Signal Types | ±10V, 0–10V, 0–20 mA, 4–20 mA |
| Output Signal Types | ±10V, 0–20 mA, 4–20 mA |
| Input Resolution | 16 Bits |
| Output Resolution | 16 Bits |
| Input Update Time | 0.2 ms per Channel |
| Output Update Time | 0.1 ms Typical |
| Input Accuracy | ±0.05% Full Scale |
| Output Accuracy | ±0.05% Full Scale |
| Isolation Voltage | 50V Continuous |
| Current Draw @ 5.1V DC | 400 mA |
| Current Draw @ 24V DC | 150 mA |
| Total Backplane Power | 5.64 W |
| Power Dissipation | 7.5 W |
| Thermal Dissipation | 25.6 BTU/hr |
| Diagnostics | Overrange, Underrange, Wire-Off Detection |
| Compatible RTB | 1756-TBCH, 1756-TBS6H |
| Mounting Type | ControlLogix Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | 0.36 kg |
| Certifications | UL, CE, CSA, ATEX |
| Product Status | Active Mature |
FAQ
FAQ
Q1: What is the primary function of the 1756-IF4FXOF2F module?
The module provides high-speed analog input and output functionality for ControlLogix systems, supporting fast process control applications.
Q2: How many analog channels are available?
The module includes 4 fast analog inputs and 2 fast analog outputs.
Q3: What signal ranges are supported?
It supports voltage ranges of ±10V and 0–10V, as well as current ranges of 0–20 mA and 4–20 mA.
Q4: What is the update speed of the module?
Typical input update time is 0.2 ms per channel, while output update time is approximately 0.1 ms.
Q5: What diagnostic features are included?
The module supports overrange, underrange, and wire-off diagnostics.
Q6: Which terminal blocks are compatible with the module?
Compatible removable terminal blocks include 1756-TBCH and 1756-TBS6H.
Q7: What are the dimensions and weight of the unit?
The dimensions are approximately 145 × 35 × 140 mm, and the weight is about 0.36 kg.
Q8: Is the 1756-IF4FXOF2F still available?
Yes, the product is currently listed as Active Mature within the Allen-Bradley ControlLogix platform.
