Technical Specifications
| Description | Parameter |
|---|---|

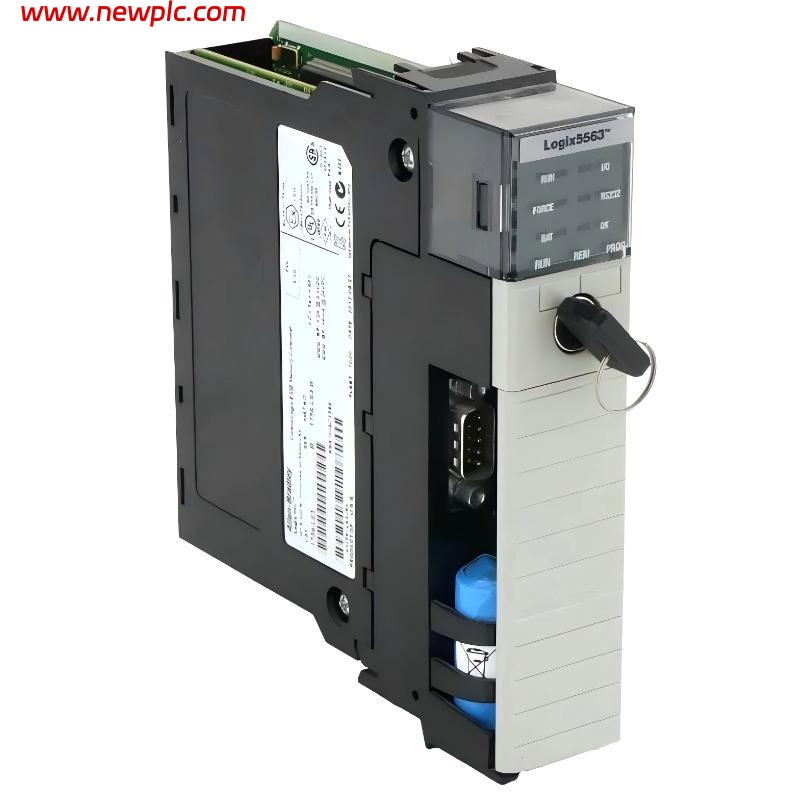

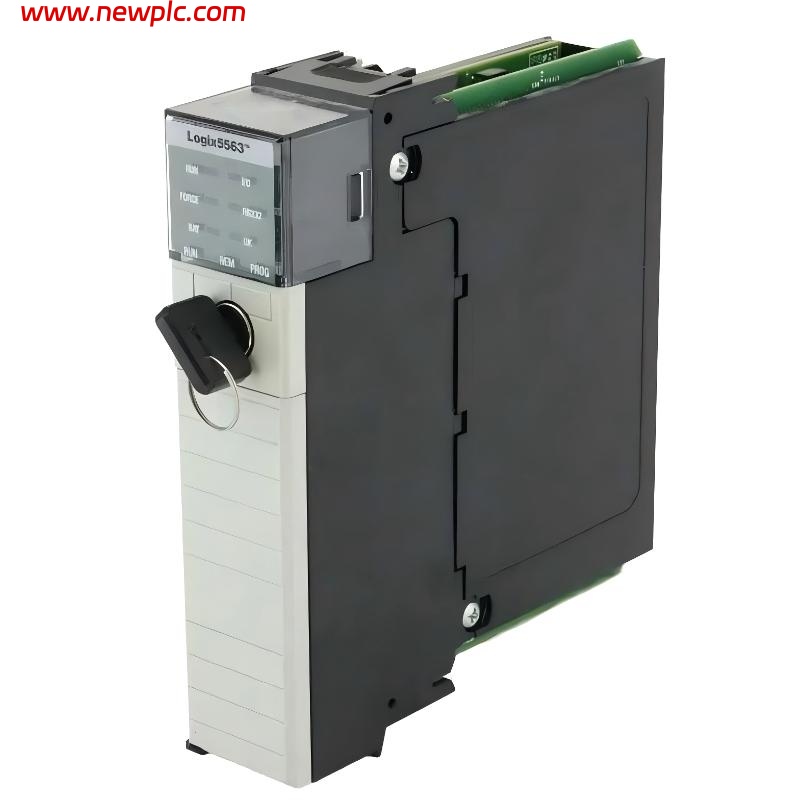

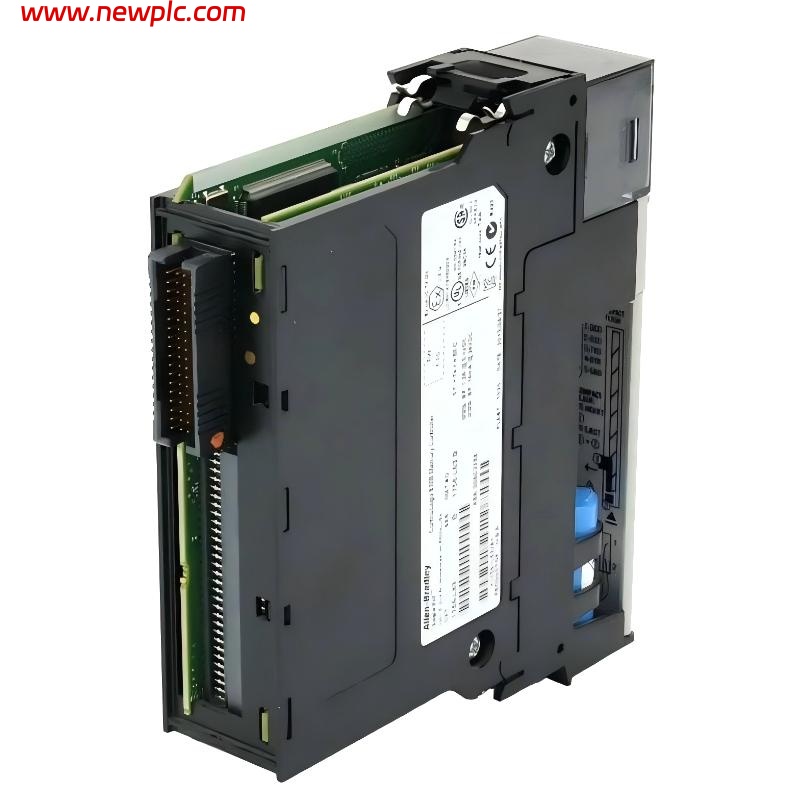

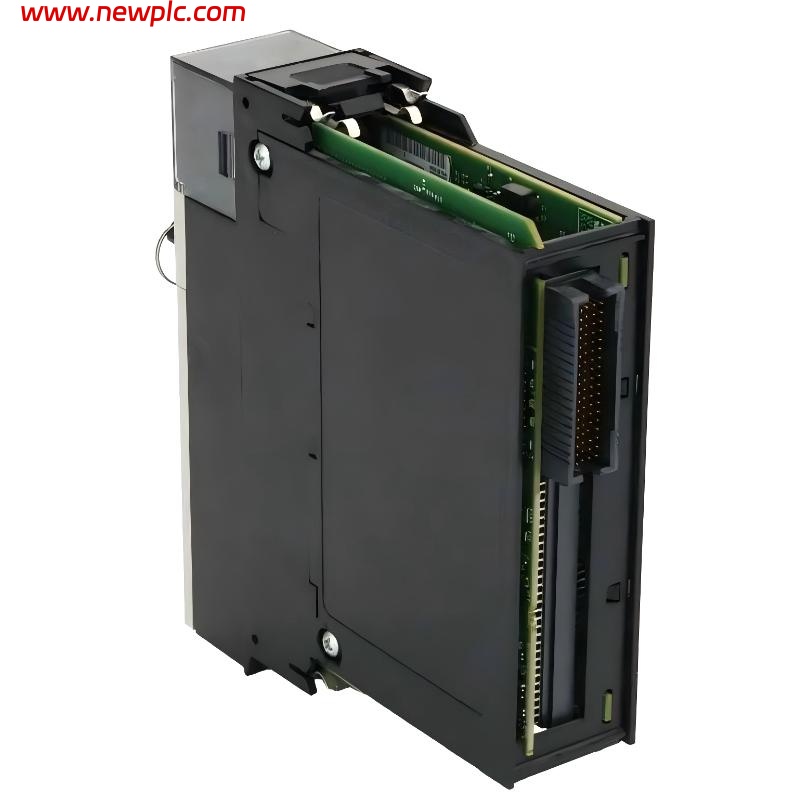

| Product Model | 1756-L63 |
| Manufacturer | Allen-Bradley |
| Product Type | ControlLogix Programmable Automation Controller |
| Module Function | Logix5563 Controller (Processor Module) |
| User Memory | 8 MB |
| I/O Memory | 478 KB |
| Maximum I/O | 128,000 total I/O points |
| Maximum Analog I/O | 4,000 |
| Tasks Supported | 32 tasks, up to 100 programs per task |
| Communication Port | 1 × RS-232 serial port |
| Optional Communication | EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O (via modules) |
| Backplane Current Consumption | 1200 mA @ 5.1V DC; 14 mA @ 24V DC |
| Power Dissipation | 3.5 W |
| Program Scan Time | 0.08 ms |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5–95% non-condensing |
| Vibration Rating | 10–500 Hz |
| Dimensions | 230 mm × 50 mm × 180 mm |
| Weight | 0.32 kg (0.71 lb) |
| Installation | ControlLogix chassis slot |
| Lifecycle Status | Discontinued |
| Certifications | CE, UL |
FAQ
FAQ
Q1. What is the function of the 1756-L63 module?
It is a ControlLogix controller used to execute logic, manage I/O, and control automation processes.
Q2. How much memory does it have?
It provides 8 MB of user memory and 478 KB of I/O memory.
Q3. What communication interfaces are available?
It includes an RS-232 port and supports multiple industrial networks via additional modules.
Q4. What is the maximum I/O capacity?
Up to 128,000 digital I/O and 4,000 analog I/O points.
Q5. Can it support redundancy?
Yes, it supports controller redundancy configurations in ControlLogix systems.
Q6. Is the module still available?
No, it has been discontinued and replaced by newer ControlLogix controllers.
Q7. Can it be installed in any ControlLogix chassis?
Yes, it is designed for standard ControlLogix chassis and can be installed in any slot.
Q8. Where is this module typically used?
It is used in industrial automation systems for machine control, process control, and distributed I/O management.
