Technical Specifications
| Description | Parameter |
|---|---|

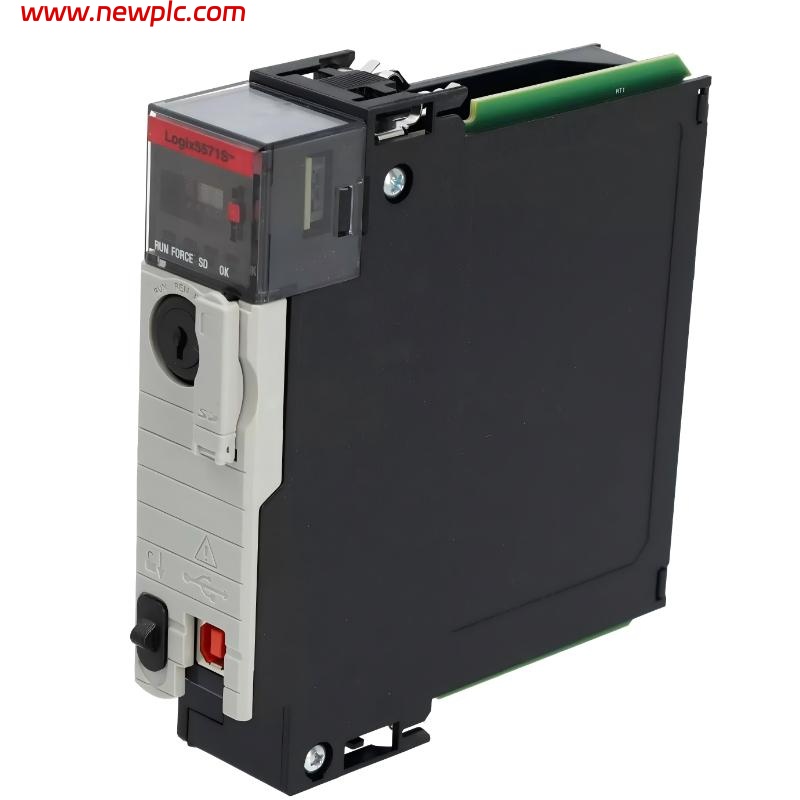

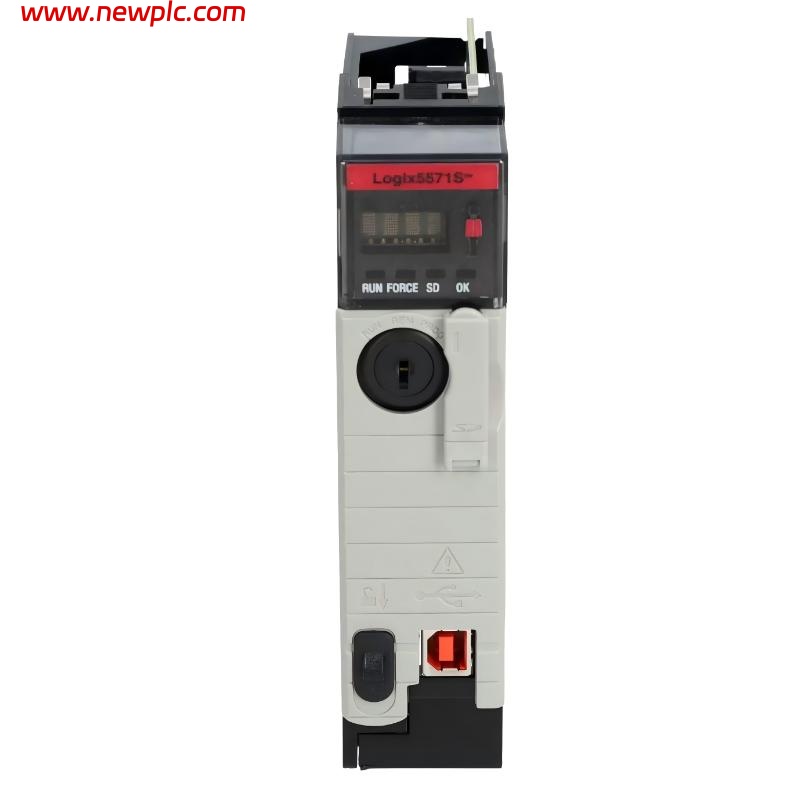

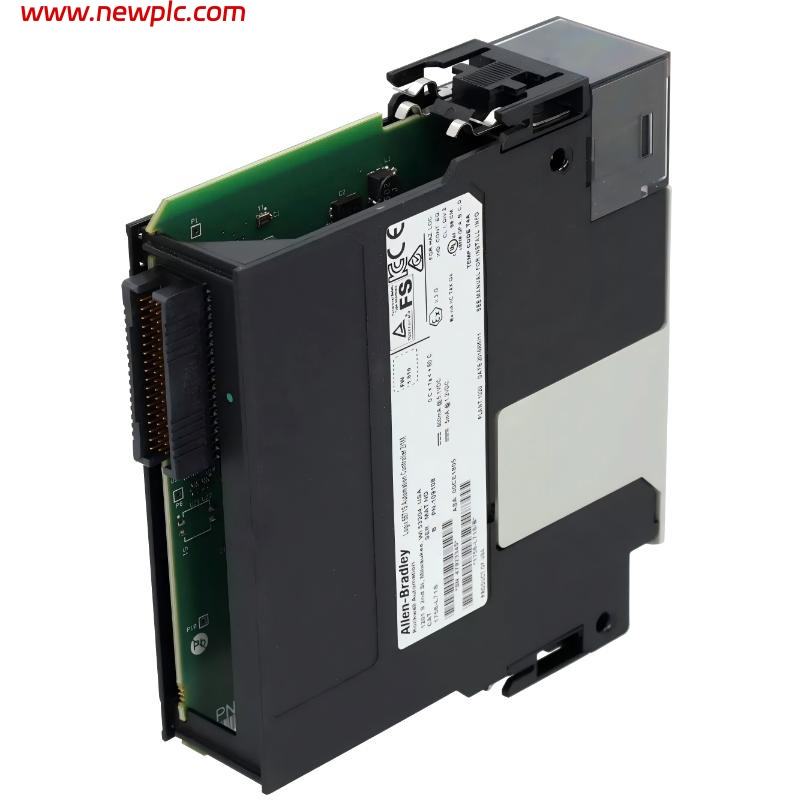

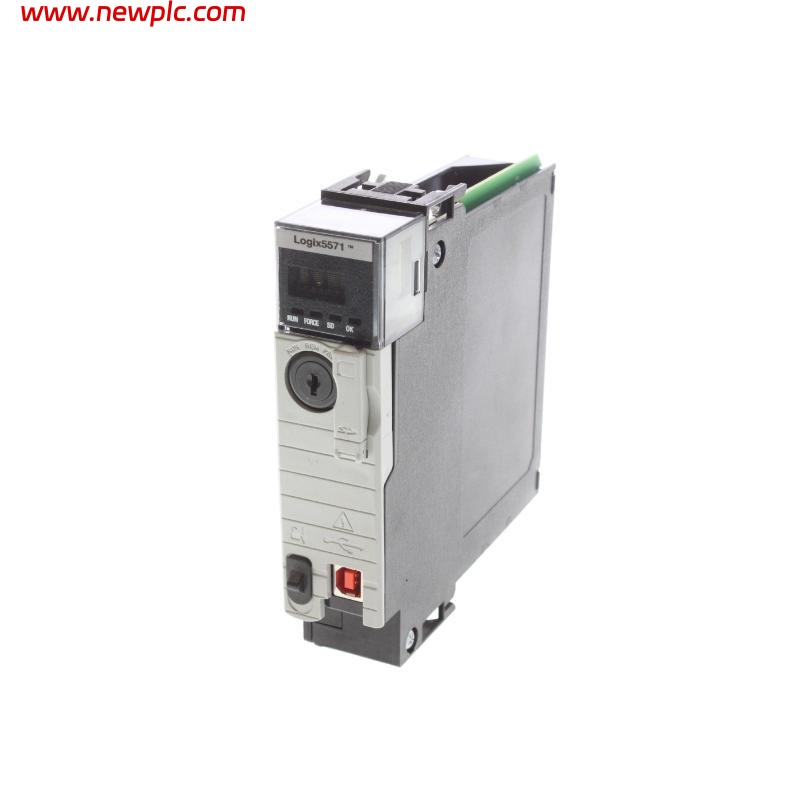

| Product Model | 1756-L71 |
| Manufacturer | Allen-Bradley |
| Product Type | ControlLogix Programmable Automation Controller |
| Module Function | Logix5571 Controller (Processor Module) |
| User Memory | 2 MB |
| I/O Memory | 0.98 MB |
| Nonvolatile Memory | 1 GB SD card included (expandable to 2 GB) |
| Maximum I/O | 128,000 total I/O points |
| Maximum Digital I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Tasks Supported | Up to 32 tasks, 100 programs per task |
| Communication Port | 1 × USB 2.0 port |
| Optional Communication | EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O (via modules) |
| Backplane Current Consumption | 800 mA @ 5.1V DC; 5 mA @ 1.2V DC |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30V continuous |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Dimensions | 145 mm × 35 mm × 140 mm |
| Weight | 0.25 kg (0.55 lb) |
| Installation | ControlLogix chassis slot |
| Certifications | CE, UL |
FAQ
FAQ
Q1. What is the function of the 1756-L71 module?
It is a ControlLogix controller used to execute control logic and manage automation systems.
Q2. How much memory does it have?
It provides 2 MB user memory and 0.98 MB I/O memory, with additional SD card storage.
Q3. What communication interfaces are available?
It includes a USB port and supports multiple industrial networks via communication modules.
Q4. What is the maximum I/O capacity?
Up to 128,000 total I/O points, including 4,000 analog channels.
Q5. Does it require a battery for memory retention?
No, it uses a capacitor-based energy storage module instead of a battery.
Q6. Can it be installed in any ControlLogix chassis?
Yes, it can be installed in any slot of a compatible ControlLogix chassis.
Q7. Is redundancy supported?
Yes, it supports ControlLogix redundancy for high-availability applications.
Q8. Where is this module typically used?
In medium to large industrial automation systems such as manufacturing, process control, and motion applications.
