Technical Specifications
| Description | Parameter |
|---|---|

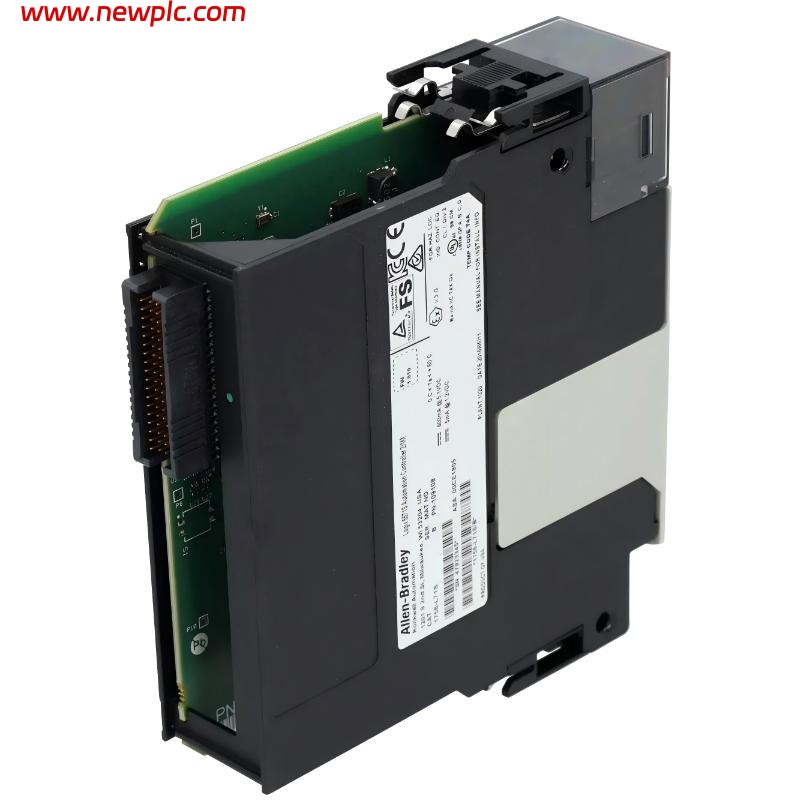

| Product Model | 1756-L71S |
| Manufacturer | Allen-Bradley |
| Product Type | ControlLogix GuardLogix Controller |
| Module Function | Logix5571S Safety‑Enabled Processor |
| User Memory | 2 MB |
| Safety Memory | 1 MB |
| I/O Memory | 0.98 MB |
| Non‑volatile Memory | 1 GB SD card (pre‑installed, expandable) |
| Maximum I/O | 128,000 total I/O points |
| Maximum Digital I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Number of Standard Tasks | 31 |
| Number of Safety Tasks | 1 |
| Programs per Task | 100 |
| Communication Port | 1 × USB (programming) |
| Optional Network Adapters | EtherNet/IP, ControlNet, DeviceNet |
| Controller Connections | Varies with adapter (e.g., up to 256 EtherNet/IP) |
| Backplane Current (5.1V DC) | 800 mA |
| Backplane Current (1.2V DC) | 5 mA |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30V continuous |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Dimensions | 145 mm × 35 mm × 140 mm (approx.) |
| Weight | 0.26 kg (0.56 lb) |
| Installation | ControlLogix 1756 chassis slot |
| Certifications | CE, UL, CSA, Safety standards (requires partner module) |
FAQ
FAQ
Q1. What is the function of the 1756-L71S module?
It is a GuardLogix safety‑enabled programmable controller that executes both standard and safety logic.
Q2. How much memory does the 1756-L71S have?
It has 2 MB user memory, 1 MB safety memory, and a 1 GB pre‑installed SD card for non‑volatile storage.
Q3. How many I/O points can this controller manage?
It supports up to 128,000 total I/O points, including digital and analog.
Q4. What communication interfaces are available?
It includes one USB port for programming and supports optional network adapters such as EtherNet/IP, ControlNet, and DeviceNet.
Q5. What safety standards can it meet?
When paired with a compatible safety partner module, it can support SIL 3 and PLe safety applications.
Q6. Can this controller support redundant operation?
No, the 1756-L71S does not support controller redundancy.
Q7. What type of tasks are supported on this controller?
It supports up to 31 standard tasks and 1 dedicated safety task.
Q8. Where is this module typically used?
In industrial automation systems requiring integrated safety and standard control, such as machinery and process safety applications.
