Technical Specifications
| Description | Parameter |
|---|---|

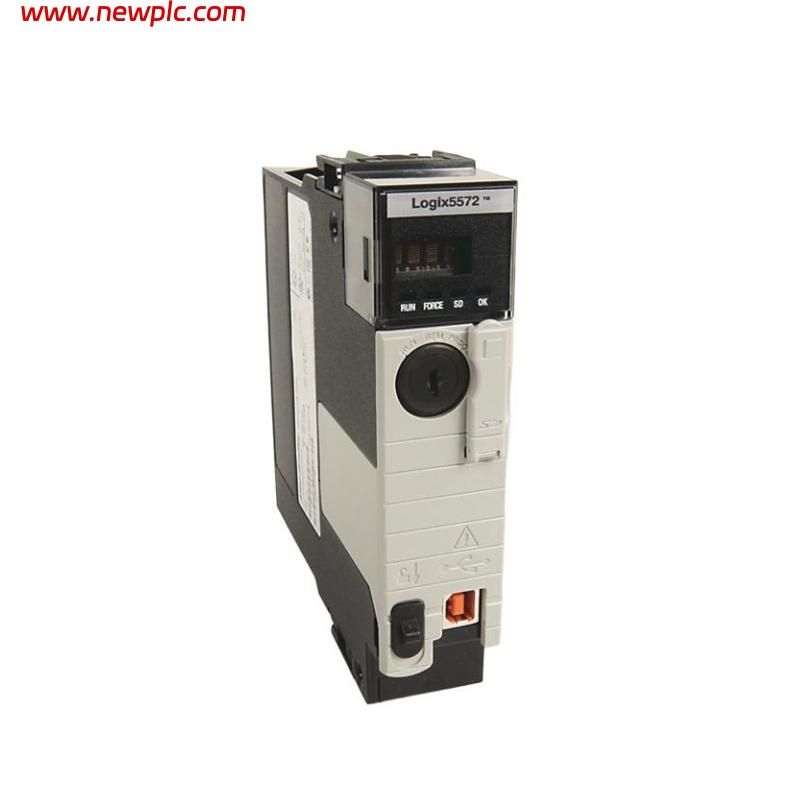

| Product Model | 1756-L72 |
| Manufacturer | Allen-Bradley |
| Product Type | ControlLogix Programmable Automation Controller |
| Module Function | Logix5572 Controller (Processor Module) |
| User Memory | 4 MB |
| I/O Memory | 0.98 MB |
| Non‑volatile Memory | SD card slot (supports removable SD card) |
| Maximum I/O | 128,000 total I/O points |
| Maximum Digital I/O | 128,000 |
| Maximum Analog I/O | 4,000 |
| Tasks Supported | Up to 32 tasks, 100 programs per task |
| Communication Port | 1 × USB 2.0 port |
| Optional Communication | EtherNet/IP, ControlNet, DeviceNet (via adapter modules) |
| Controller Connections | Up to 250 (varies by network adapter) |
| Backplane Current Consumption | 800 mA @ 5.1V DC; 5 mA @ 1.2V DC |
| Power Dissipation | 2.5 W |
| Isolation Voltage | 30V continuous |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5–95% non‑condensing |
| Vibration Rating | 2 g (10–500 Hz) |
| Shock Rating | 30 g |
| Dimensions | 145 mm × 35 mm × 140 mm |
| Weight | 0.25 kg (0.55 lb) |
| Installation | ControlLogix chassis slot |
| Certifications | CE, UL |
FAQ
FAQ
Q1. What is the function of the 1756-L72 module?
It is a ControlLogix processor that executes automation logic and manages system I/O.
Q2. How much memory does the controller have?
It provides 4 MB of user memory and 0.98 MB of I/O memory.
Q3. What communications does it support?
It includes a USB programming port and supports additional network adapters for EtherNet/IP, ControlNet, and DeviceNet.
Q4. What is the maximum I/O capacity?
Up to 128,000 total I/O points including digital and analog.
Q5. Can the controller support multiple tasks?
Yes, it supports up to 32 tasks with multiple programs per task.
Q6. Does it support SD card storage?
Yes, it has a removable SD card slot for program and data storage.
Q7. Is the module hot‑swappable?
No, the controller should not be removed or installed while the system is powered.
Q8. Where is this module typically used?
In industrial automation systems requiring flexible control, large I/O handling, and multiple task execution.
