Technical Specifications
| Parameter | Specification |
|---|---|

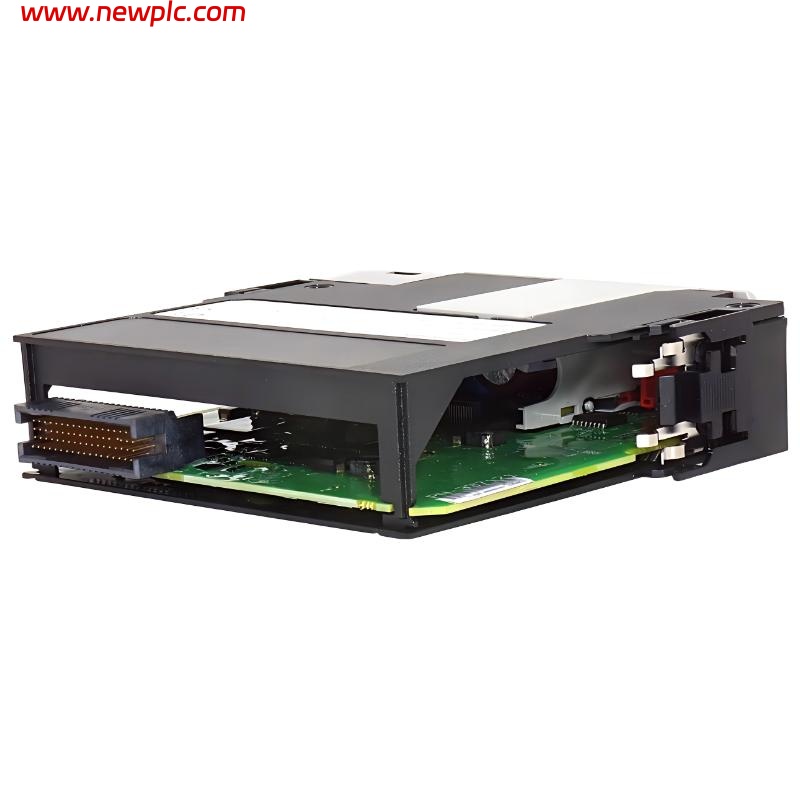

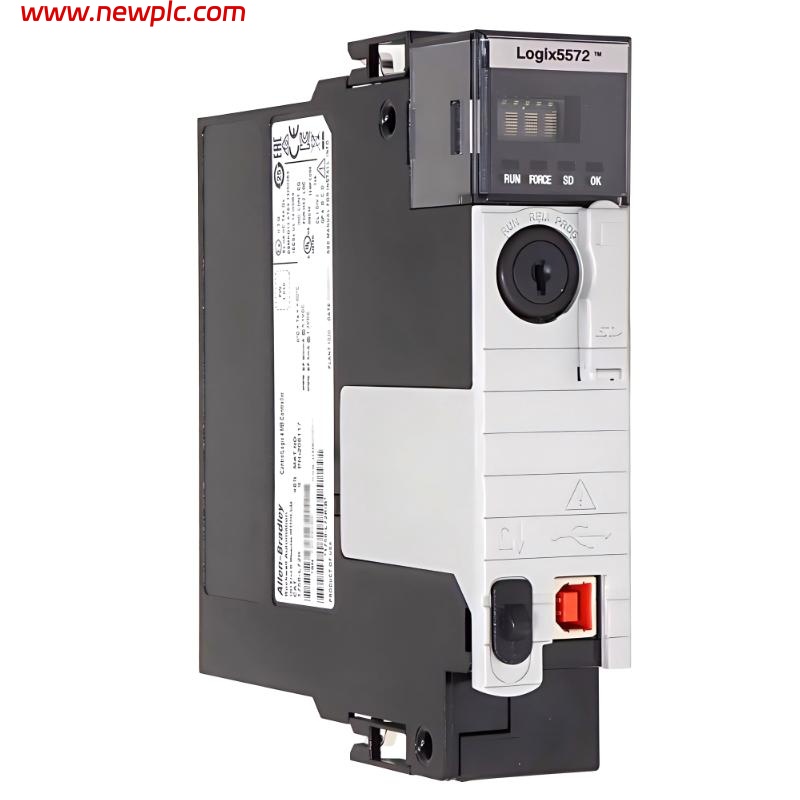

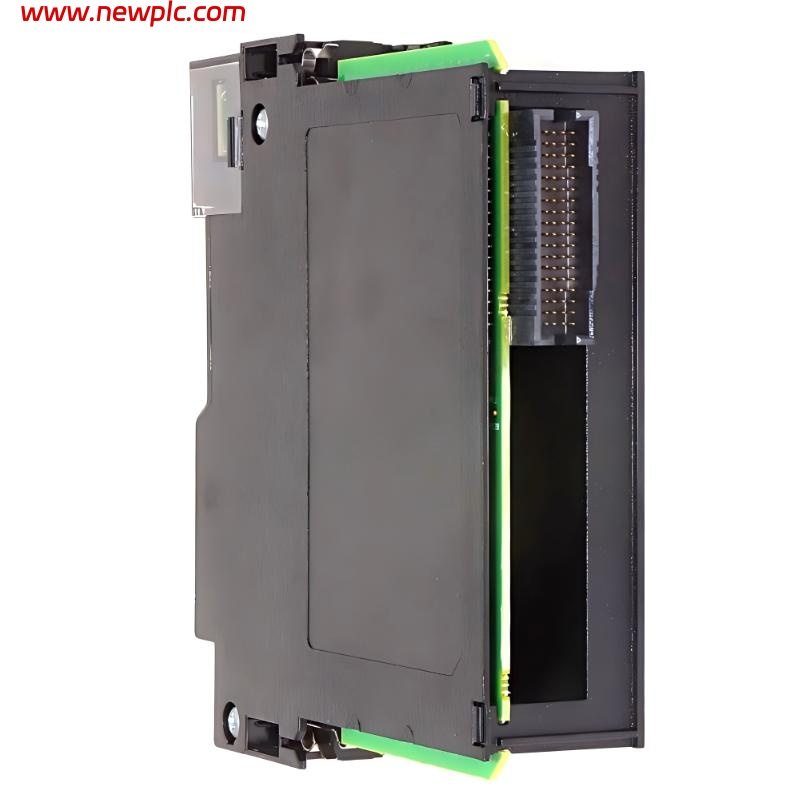

| Model | Allen-Bradley 1756-L72K |
| Product Type | ControlLogix Logix5572 Controller |
| Series | ControlLogix 5570 |
| Controller Family | Logix5572 |
| User Memory | 4 MB |
| I/O Memory | 0.98 MB |
| Nonvolatile Memory | Secure Digital (SD Card Supported) |
| Embedded Ethernet Port | No |
| Local Programming Port | USB 2.0 Port |
| Motion Axis Support | Up to 100 Axes |
| Maximum Digital I/O | 128,000 Points |
| Maximum Analog I/O | 4,000 Points |
| Communication Networks | EtherNet/IP, ControlNet, DeviceNet, DH+, Remote I/O (via communication modules) |
| Current Draw @ 1.2V DC | 5 mA |
| Current Draw @ 5.1V DC | 850 mA |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Isolation Voltage | 30V Continuous |
| Energy Storage Module | 1756-ESMCAP / 1756-ESMCAPK |
| Conformal Coating | Yes |
| Chassis Compatibility | 1756 ControlLogix Chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | Approx. 0.35 kg |
| Certifications | UL, CE, CSA, ATEX, IECEx, CCC |
| Product Lifecycle | Active Mature |
FAQ
FAQ
Q1: What is the primary function of the 1756-L72K controller?
The 1756-L72K is a high-performance programmable automation controller used in ControlLogix industrial automation systems.
Q2: What does the “K” suffix indicate?
The “K” designation means the controller includes conformal coating protection for harsh industrial environments.
Q3: How much user memory does the controller provide?
The controller includes 4 MB of user memory and 0.98 MB of I/O memory.
Q4: Does the 1756-L72K have built-in Ethernet communication?
No. Ethernet communication requires separate ControlLogix communication modules such as 1756-EN2T or 1756-EN3TR.
Q5: Which nonvolatile memory type is supported?
The controller supports Secure Digital (SD) cards for firmware and application storage.
Q6: Which energy storage module is compatible with the controller?
Compatible capacitor modules include 1756-ESMCAP and 1756-ESMCAPK.
Q7: Is the 1756-L72K still available?
Yes. Rockwell Automation currently lists the controller as “Active Mature.”
Q8: What is the main difference between the 1756-L72 and 1756-L72K?
The L72K version adds conformal coating protection while maintaining the same core controller functionality as the standard L72 model.
