Technical Specifications
| Parameter | Specification |
|---|---|

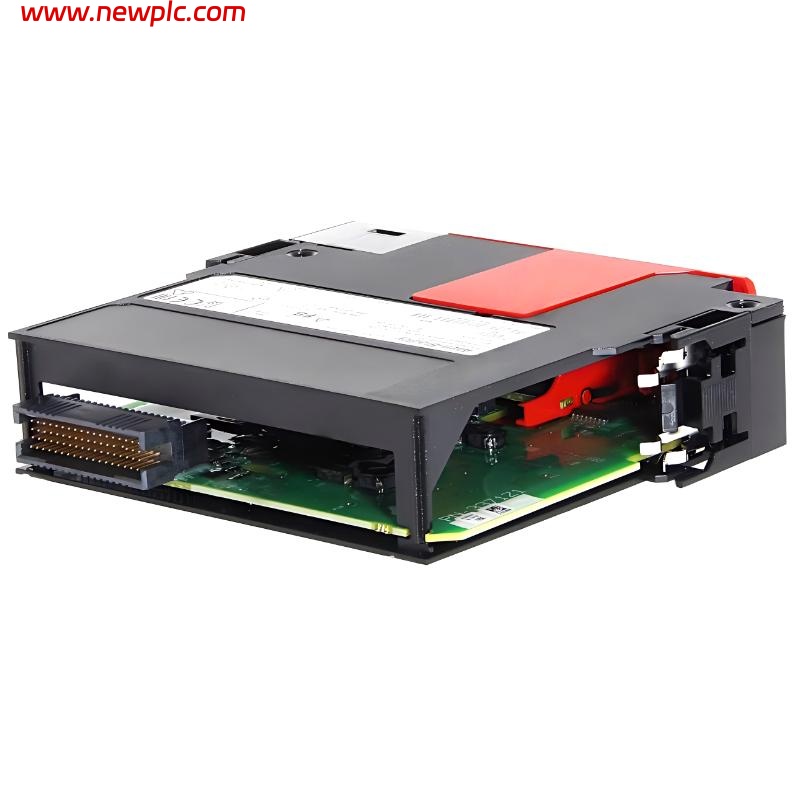

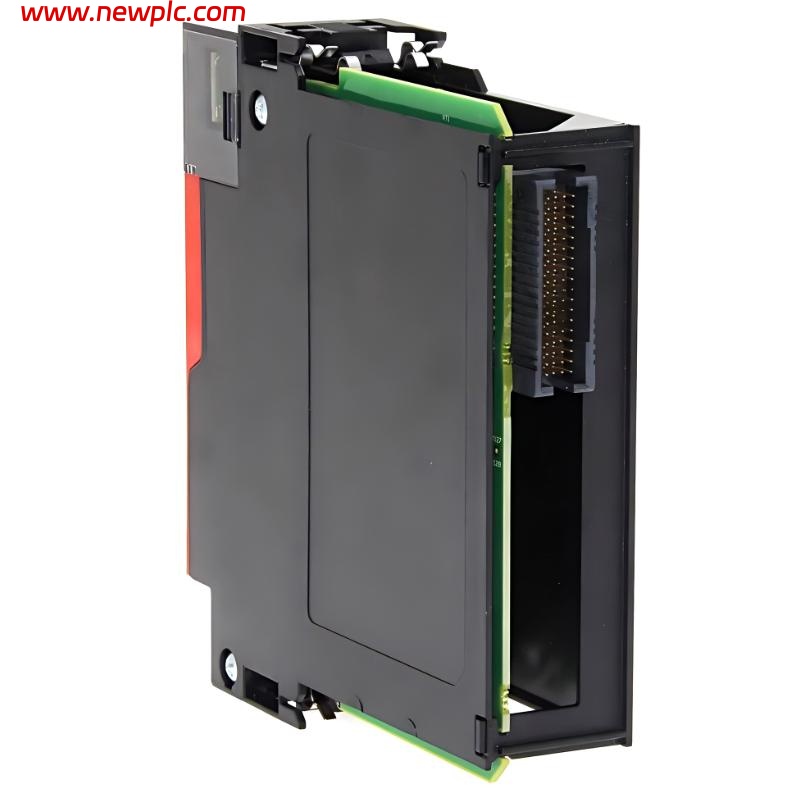

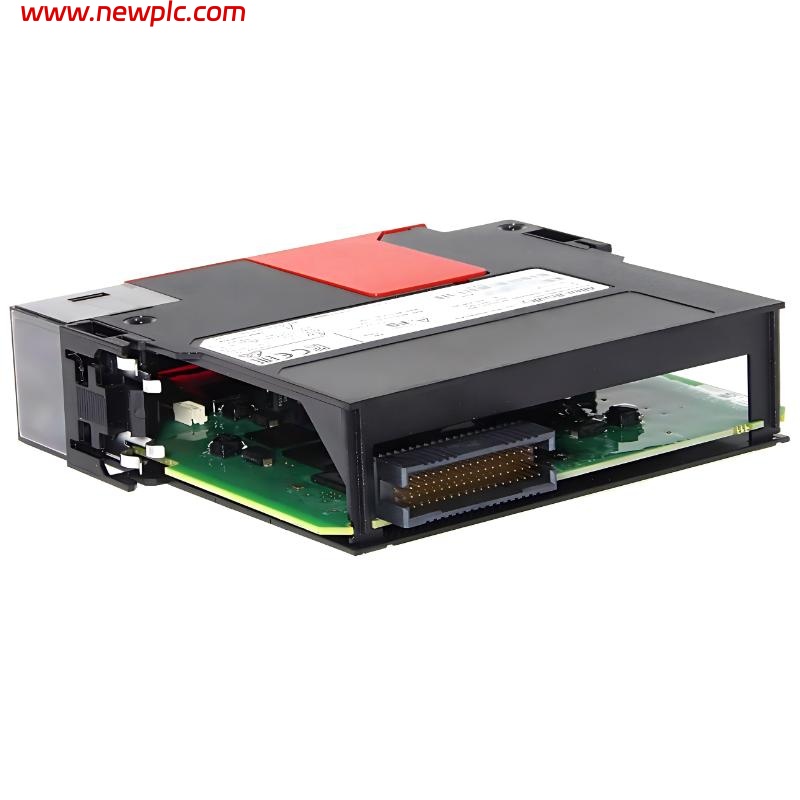

| Model | Allen-Bradley 1756-L7SPK |
| Product Type | Safety Partner Controller |
| Series | GuardLogix / ControlLogix 5570 |
| Controller Type | Safety Partner Module |
| Compatible Controllers | 1756-L71S, 1756-L72S, 1756-L73S |
| Safety Function | SIL 3 / PLe Safety Processing |
| Safety Memory | Dedicated Safety Memory Synchronization |
| Communication with Primary Controller | High-Speed Backplane Interface |
| Conformal Coating | Yes |
| Isolation Voltage | 30V Continuous |
| Current Draw @ 1.2V DC | 5 mA |
| Current Draw @ 5.1V DC | 800 mA |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Chassis Compatibility | 1756 ControlLogix Chassis |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 2 g @ 10–500 Hz |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | Approx. 0.35 kg |
| Certifications | TÜV, UL, CE, CSA, ATEX, IECEx |
| Safety Standards | IEC 61508, ISO 13849 |
| Product Lifecycle | Active Mature |
FAQ
FAQ
Q1: What is the purpose of the 1756-L7SPK module?
The 1756-L7SPK is a GuardLogix safety partner controller used together with specific GuardLogix primary controllers to provide redundant safety processing for SIL 3 and PLe safety applications.
Q2: Which controllers are compatible with the 1756-L7SPK?
It is designed to operate with GuardLogix controllers such as the 1756-L71S, 1756-L72S, and 1756-L73S.
Q3: Can the 1756-L7SPK operate as a standalone PLC?
No. It functions only as a safety partner module and must be paired with a compatible GuardLogix safety controller.
Q4: What safety certifications does the module support?
The module supports SIL 3 (IEC 61508) and Performance Level e (ISO 13849) safety requirements.
Q5: What does the “K” suffix indicate?
The “K” suffix indicates conformal coating for additional environmental protection in harsh industrial conditions.
Q6: Does the module contain user application memory?
The module works in conjunction with the primary GuardLogix controller and mirrors safety-related processing rather than acting as an independent controller.
Q7: What chassis is required for installation?
The module installs into a standard 1756 ControlLogix chassis.
Q8: Is the 1756-L7SPK still available?
Yes. Rockwell Automation currently classifies the module as Active Mature within the GuardLogix platform.
