Technical Specifications
| Parameter | Specification |
|---|---|

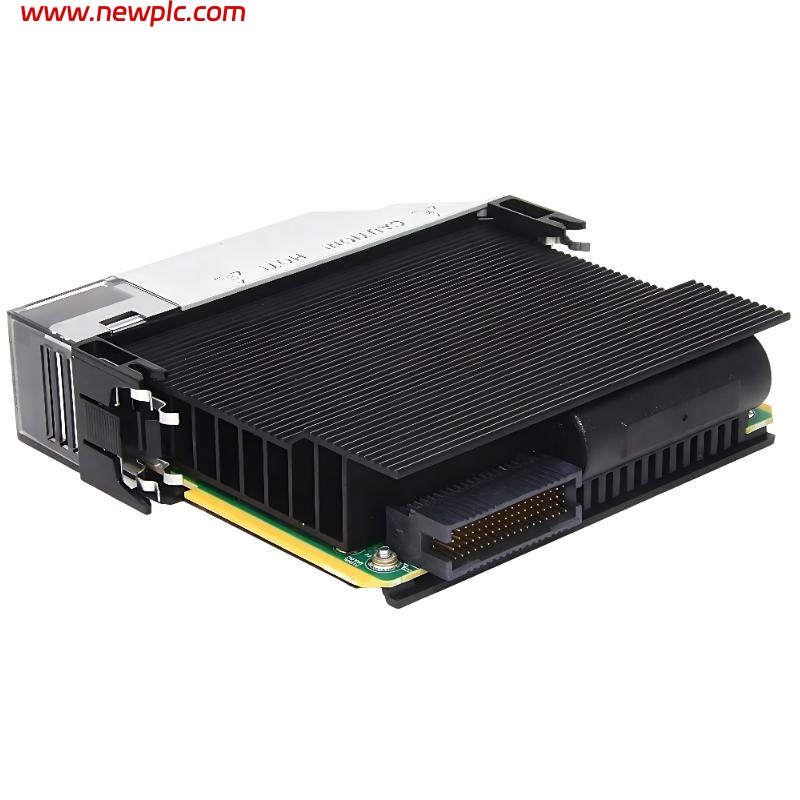

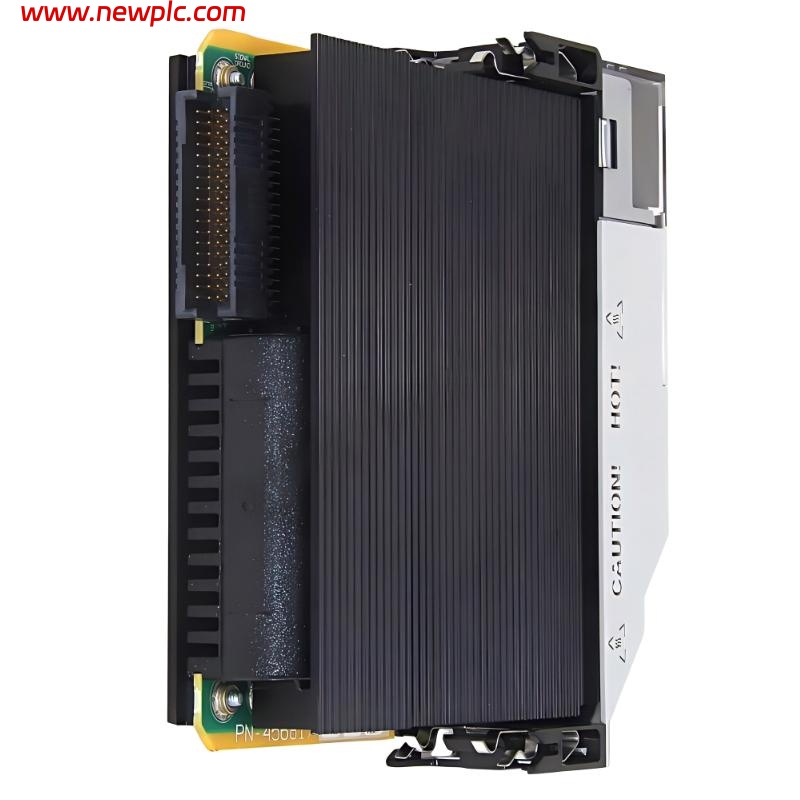

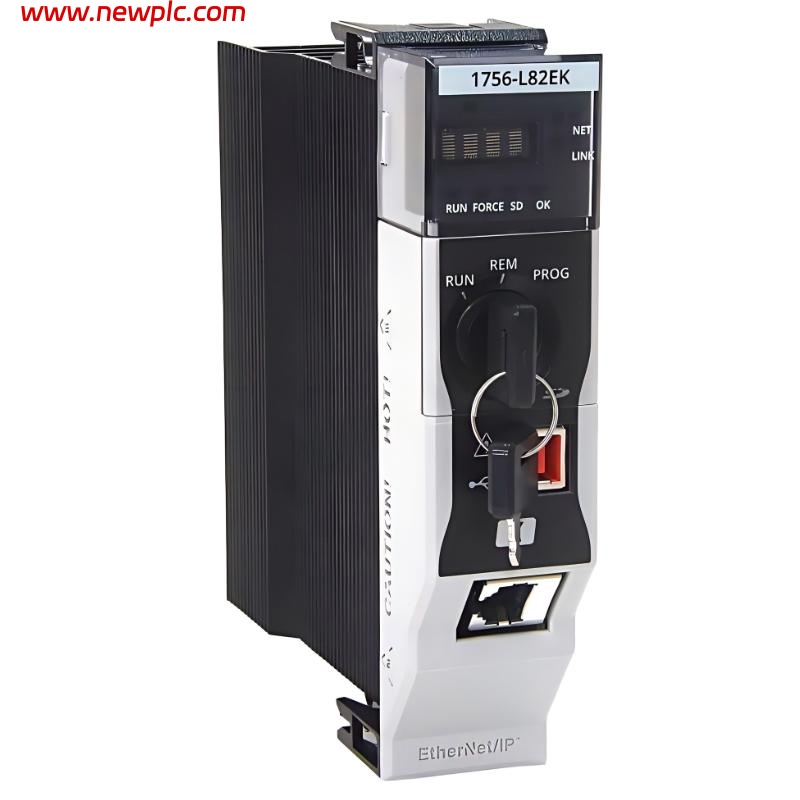

| Model | Allen-Bradley 1756-L82EK |
| Product Type | ControlLogix 5580 Controller |
| Series | ControlLogix 5580 |
| Controller Family | Logix 5582 |
| User Memory | 5 MB |
| Embedded Ethernet Port | Yes — 1 Gigabit EtherNet/IP Port |
| Ethernet Speed | 10/100/1000 Mbps |
| USB Port | 1 USB Programming Port |
| Motion Axis Support | Up to 256 Axes |
| Maximum Digital I/O | 128,000 Points |
| Maximum Analog I/O | 4,000 Points |
| Nonvolatile Memory | Secure Digital (SD) Card |
| Energy Storage | Embedded, Non-removable |
| Current Draw @ 1.2V DC | 5 mA |
| Current Draw @ 5.1V DC | 1.20 A |
| Power Dissipation | 6.2 W |
| Thermal Dissipation | 21.2 BTU/hr |
| Isolation Voltage | 50V Continuous |
| Conformal Coating | Yes |
| Display | 4-Character Alphanumeric Display |
| Chassis Compatibility | 1756 ControlLogix Chassis |
| Mounting Type | Chassis Mount |
| Dimensions (H × W × D) | 145 × 35 × 140 mm |
| Weight | Approx. 0.394 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Certifications | UL, CE, ATEX, IECEx, CCC, UKCA |
| Product Lifecycle | End of Life (effective Dec 31, 2026) |
| Replacement Model | 1756-L82EXT |
FAQ
FAQ
Q1: What is the primary function of the 1756-L82EK controller?
The 1756-L82EK is a high-performance ControlLogix 5580 programmable automation controller designed for large-scale industrial automation and motion applications.
Q2: What does the “K” suffix mean in 1756-L82EK?
The “K” designation indicates conformal coating for harsh industrial environments.
Q3: Does the controller include built-in Ethernet communication?
Yes. It includes an embedded 1 Gigabit EtherNet/IP communication port.
Q4: How much memory does the controller provide?
The controller includes 5 MB of user memory and supports Secure Digital (SD) nonvolatile storage.
Q5: Does the 1756-L82EK support motion control?
Yes. It supports integrated motion applications with up to 256 axes.
Q6: What are the physical dimensions of the controller?
The dimensions are 145 mm (H) × 35 mm (W) × 140 mm (D).
Q7: Is the 1756-L82EK still available?
Rockwell Automation lists the product as End of Life, with discontinuation scheduled for December 31, 2026.
Q8: What replacement controller is recommended?
Rockwell Automation recommends the 1756-L82EXT as the replacement model.
