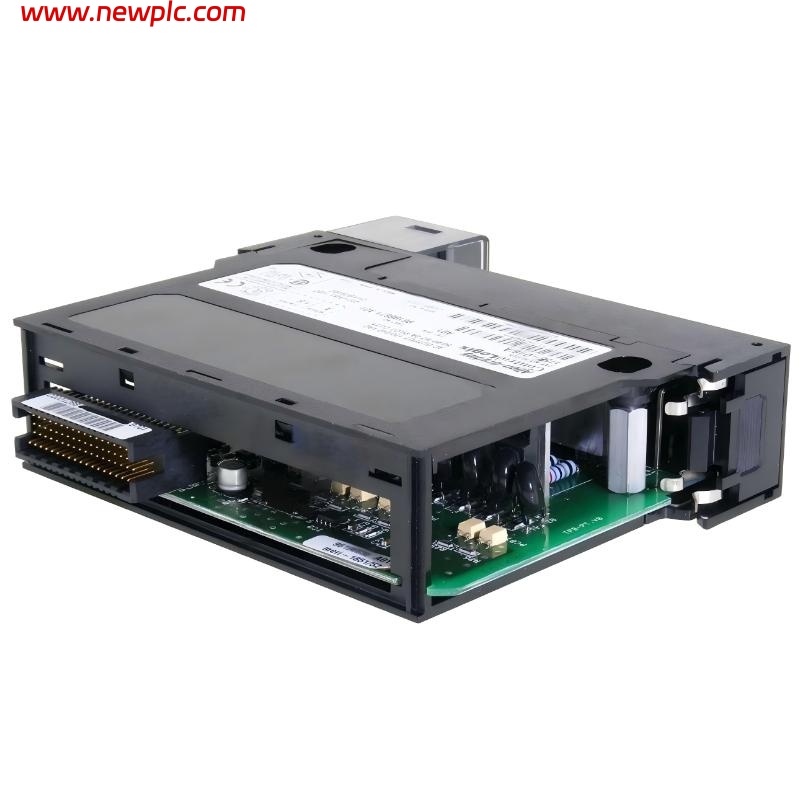

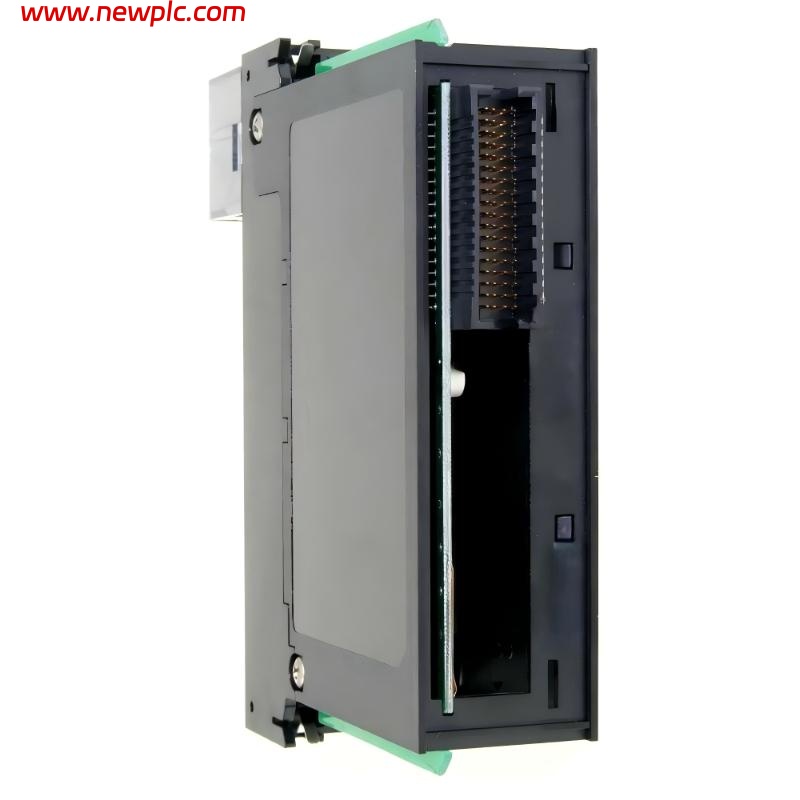

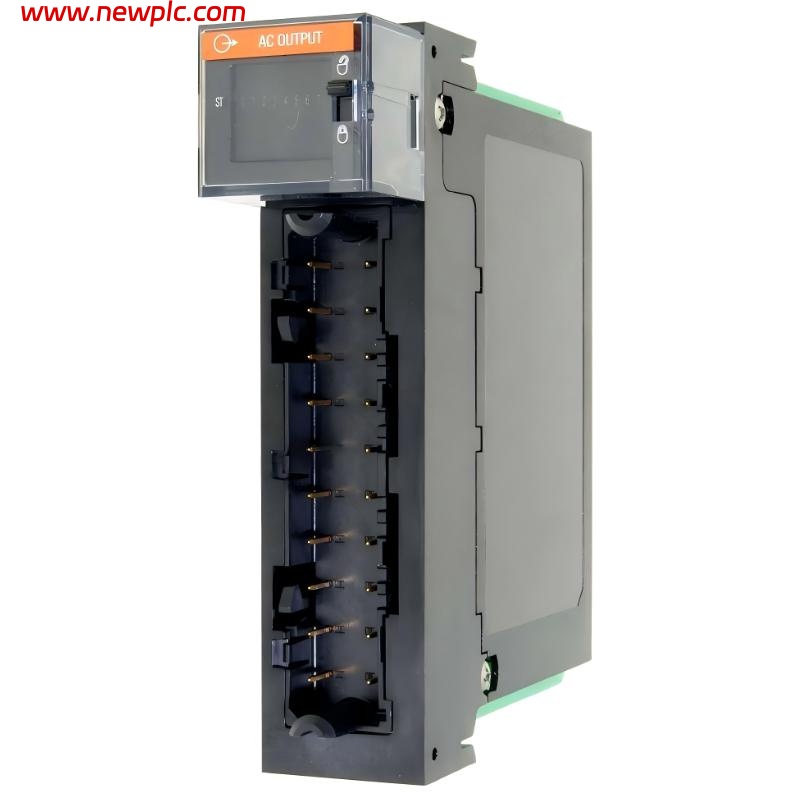

| Product Name | Allen‑Bradley 1756‑OA8 ControlLogix Digital AC Output Module |
| Module Type | Digital AC output module (8 points) |
| Series | ControlLogix |
| Number of Outputs | 8 output channels (2 groups of 4) |
| Output Voltage Range | 74–265 VAC, 47–63 Hz |
| Voltage Category | 120/240 VAC, 50/60 Hz |
| Output Current per Point | Up to 2.0 A per point (derated with temperature) |
| Maximum Output Current per Module | ~5 A @ 30 °C, ~4 A @ 60 °C |
| Minimum Load Current | ~10 mA per point |
| Surge Current per Point | ~20 A for 43 ms per point |
| Output Delay Time | ~9.3 ms @ 60 Hz, ~11 ms @ 50 Hz |
| Backplane Current (5.1 VDC) | ~200 mA |
| Backplane Current (24 VDC) | ~2 mA |
| Power Dissipation | ~5.1 W @ 60 °C |
| Isolation Voltage | ~250 V continuous between groups of 4 outputs |
| Connection Type | Removable terminal block (e.g., 1756‑TBNH or 1756‑TBSH) |
| Mounting | ControlLogix chassis slot |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | −40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Dimensions (H × W × D) | ~300 mm × 38.1 mm × 111.25 mm (standard 1756 module size) |
| Weight | ~0.43 kg (~0.94 lbs) |
FAQ
FAQ
Q1: What is the main purpose of the 1756‑OA8 module?
It provides eight AC digital outputs for controlling field devices such as relays, contactors, lamps, and solenoids.
Q2: How many outputs are available and how are they grouped?
There are 8 outputs arranged in two groups of four channels each.
Q3: What AC voltage range does this module support?
It supports a wide operating range of 74–265 VAC at 47–63 Hz.
Q4: What is the maximum current per output point?
Each point can handle up to approximately 2 A, derated at higher temperatures.
Q5: Are there any isolation features?
Yes, there is continuous isolation voltage of approximately 250 V between groups of four outputs.
Q6: What are the physical size and weight of the module?
The module measures about 300 mm × 38.1 mm × 111.25 mm and weighs around 0.43 kg.
Q7: What type of terminal connection does the module use?
It uses removable terminal blocks such as 1756‑TBNH or 1756‑TBSH.
Q8: What are the environmental operating limits?
It operates from 0 °C to 60 °C with storage from −40 °C to 85 °C and supports up to 95 % non‑condensing humidity.
