Technical Specifications
| Specification | Details |
|---|---|

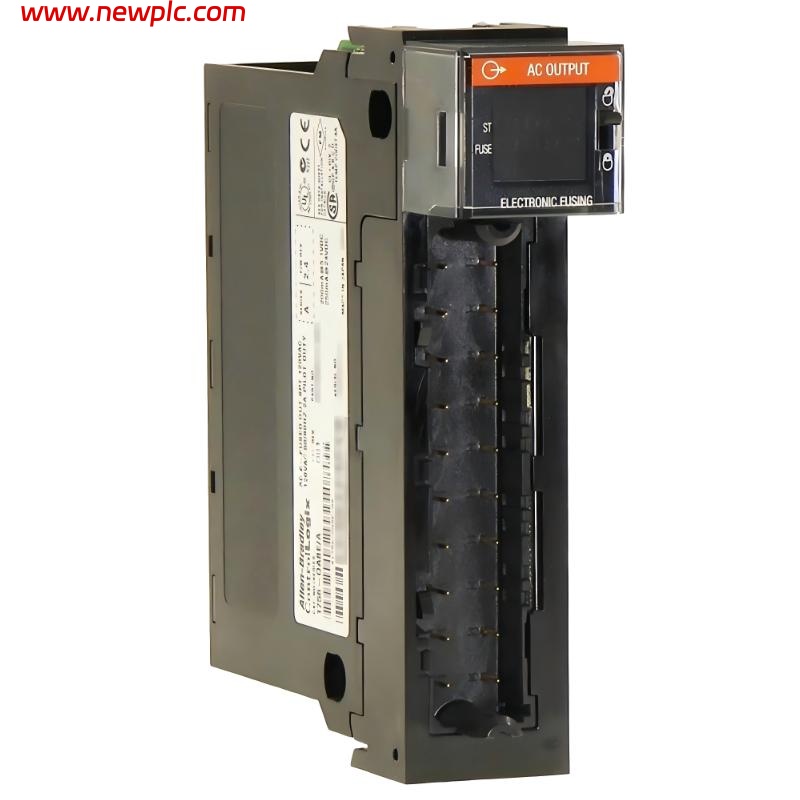

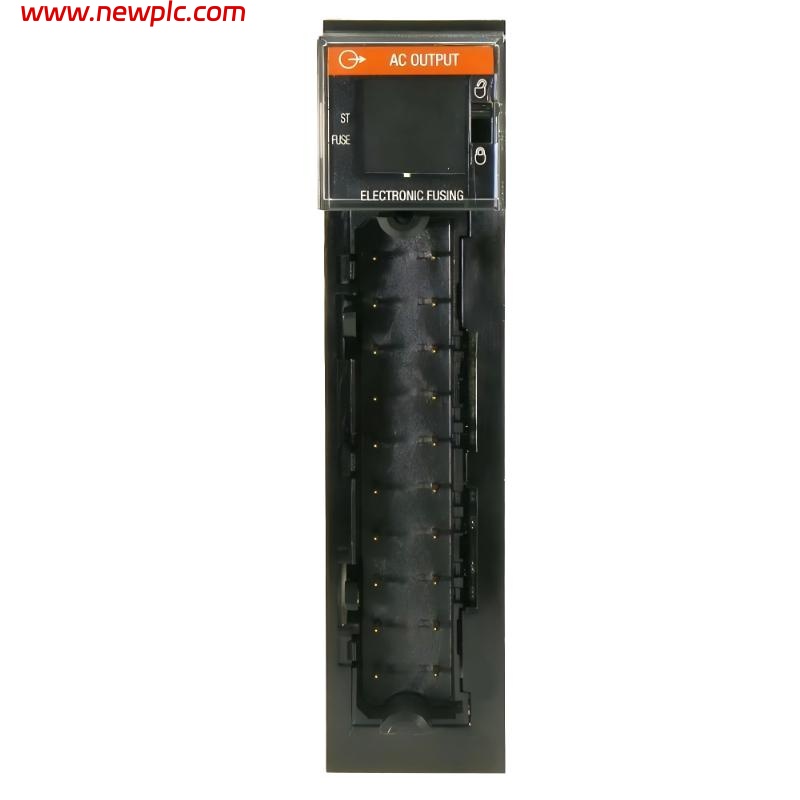

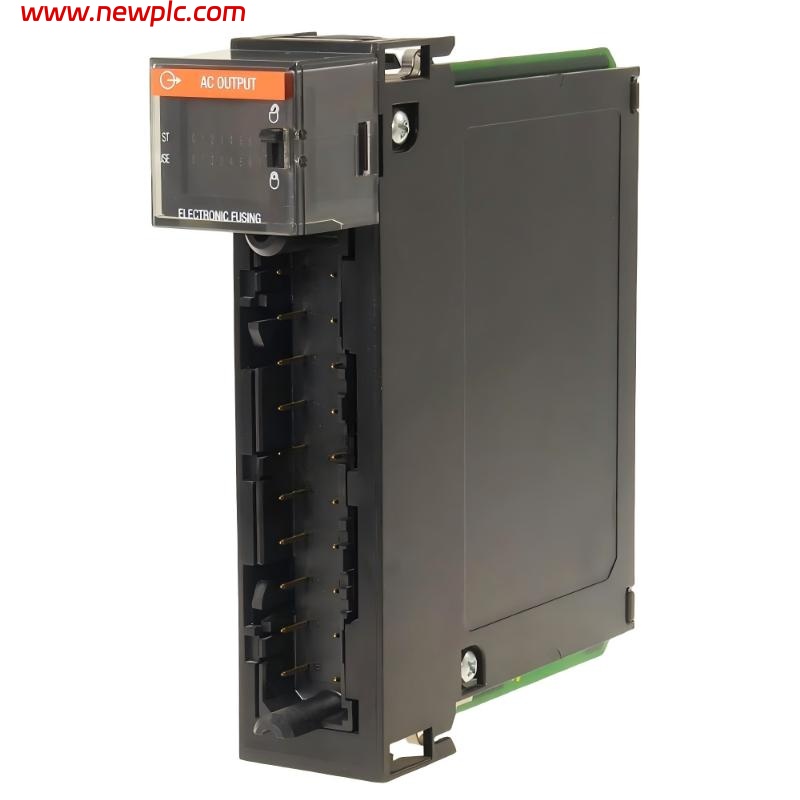

| Product Name | Allen‑Bradley 1756‑OA8E ControlLogix Fused AC Output Module |
| Module Type | Digital AC output module with electronic fusing |
| Series | ControlLogix 1756 I/O family |
| Number of Outputs | 8 output channels (4 points per group, 2 groups) |
| Output Voltage Range | Approximately 74–132 VAC, 47–63 Hz |
| Voltage Category | 120 VAC operational category |
| Output Current per Point | 2.0 A point‑rated (at 60 °C) |
| Output Current per Group/Module | 4 A per group @ 30 °C / 2 A @ 60 °C ▲ 8 A per module @ 30 °C / 4 A @ 60 °C ▲ |
| Isolation Voltage | 125 V continuous (group‑to‑group & outputs‑to‑backplane) |
| Backplane Current (5.1 VDC) | ~200 mA |
| Backplane Current (24 VDC) | ~250 mA |
| Power Dissipation (Max) | ~5.5 W @ 60 °C |
| Output Delay (Response Time) | ~9.3 ms @ 60 Hz / ~11 ms @ 50 Hz |
| Minimum Load | ~10 mA per point |
| Surge Current | ~20 A for ~43 ms per point |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | −40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Mounting | ControlLogix chassis slot |
| Connection Type | Removable terminal block (e.g., 1756‑TBNH / 1756‑TBSH) |
| Dimensions (H × W × D) | ~300 mm × 38.1 mm × 111.25 mm (standard 1756 module footprint) |
| Weight | ~0.45 kg (~1.0 lb) |
FAQ
FAQ
Q1: What type of outputs does the 1756‑OA8E provide?
It provides eight electronically fused AC output channels in two groups of four.
Q2: What voltage range is supported by the outputs?
The outputs operate within approximately 74–132 VAC at industrial AC frequencies.
Q3: What is the maximum current per point?
Each output can carry up to 2 A per channel (rated at 60 °C).
Q4: Is isolation provided between output groups?
Yes, there is approximately 125 V continuous isolation between output groups and backplane.
Q5: How fast do outputs switch in response to commands?
Typical output delay is around 9.3 ms at 60 Hz or 11 ms at 50 Hz.
Q6: What are the physical size and footprint of this module?
The module matches standard ControlLogix I/O dimensions (about 300 mm × 38.1 mm × 111.25 mm).
Q7: What are the operating and storage environments?
It operates from 0 °C to 60 °C and can be stored from −40 °C to 85 °C.
Q8: How is this module powered and connected?
It draws backplane power (~200 mA @ 5.1 V and ~250 mA @ 24 V) and uses removable terminal blocks for field wiring.
