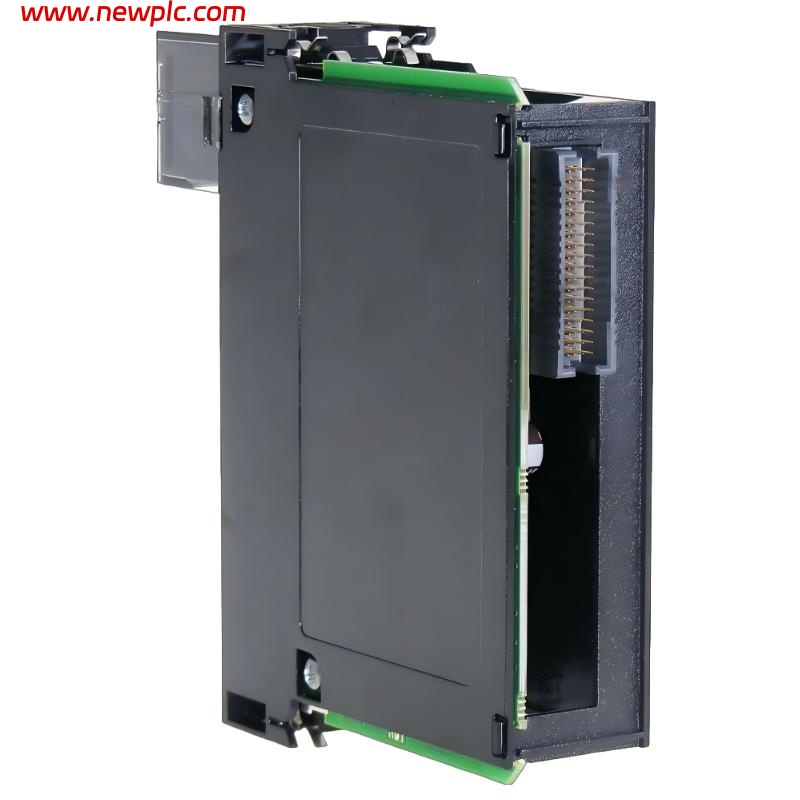

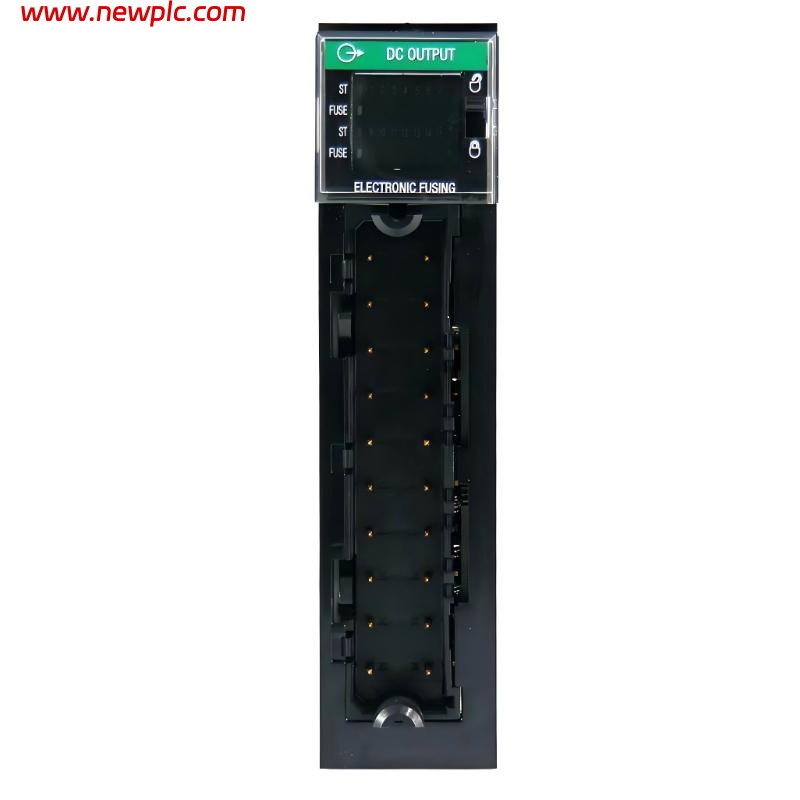

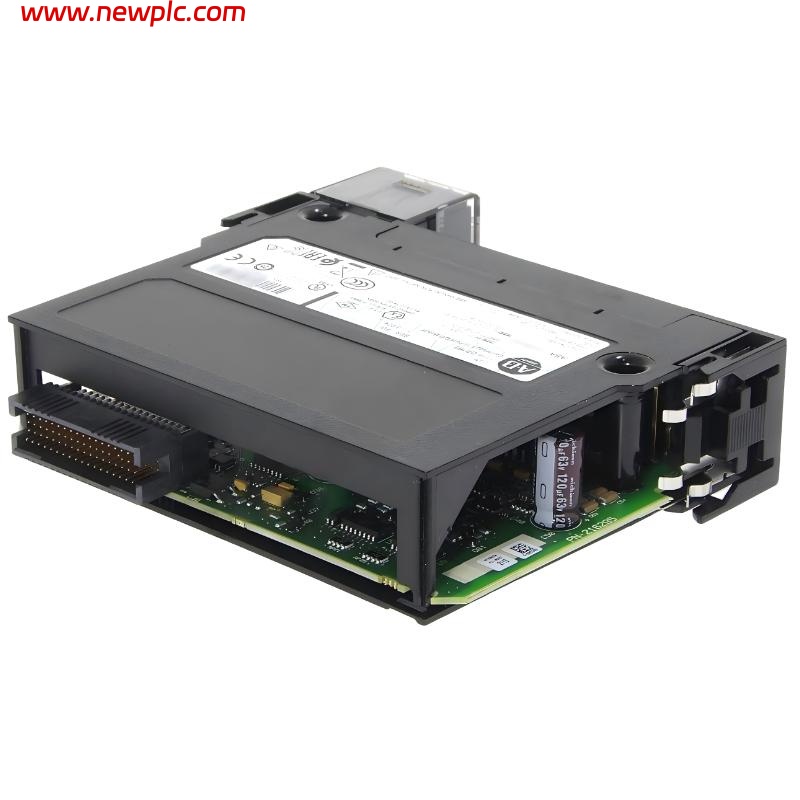

| Product Name | Allen‑Bradley 1756‑OB16E ControlLogix Digital DC Output Module |
| Module Type | Electronically fused DC output module (sourcing) |
| Series | ControlLogix 1756 I/O family |
| Number of Outputs | 16 DC output channels (2 groups of 8, electronically fused) |
| Output Voltage Range | 10–31.2 V DC (nominal 12/24 V DC source) |
| Output Current per Point | Up to ~1 A per point @ 60 °C (140 °F) |
| Total Output Current per Module | ~8 A @ 60 °C (140 °F) |
| Off‑State Leakage Current | ~1 mA per point max |
| On‑State Voltage Drop | ~400 mV DC @ 1 A max |
| Surge Current (Per Point) | ~2 A for 10 ms per point, repeatable every 2 s |
| Minimum Load Current | ~3 mA per point |
| Output Delay Time | OFF→ON: ~70 µs nom / ≤1 ms max |
| ON→OFF: ~360 µs nom / ≤1 ms max | |
| Backplane Current (5.1 VDC) | ~250 mA |
| Backplane Current (24 VDC) | ~2 mA |
| Total Backplane Power | ~1.32 W |
| Power Dissipation (Max) | ~4.1 W @ 60 °C (140 °F) |
| Thermal Dissipation | ~13.98 BTU/hr |
| Isolation Voltage | ~250 V continuous between groups of 8 outputs and backplane (no isolation between individual outputs) |
| Connection | Removable terminal block (e.g., 1756‑TBNH or 1756‑TBSH) |
| Mounting | Installed in a ControlLogix chassis slot |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C (typical) |
| Relative Humidity (Non‑Condensing) | 5 % to 95 % |
| Dimensions (H × W × D) | ~300 mm × 38.1 mm × 111.25 mm (standard 1756 module footprint) |
| Weight | ~0.26 kg (~0.56 lbs) |
FAQ
FAQ
Q1: What is the purpose of the 1756‑OB16E module?
It provides 16 discrete DC output channels with electronic fusing to drive DC field loads such as solenoids, lamps, and relays.
Q2: What voltage range does the 1756‑OB16E support?
It supports an operating voltage range from ~10 V to ~31.2 V DC with 12/24 V nominal category.
Q3: How is output current rated?
Each output can supply up to ~1 A at 60 °C and the module total up to ~8 A at 60 °C.
Q4: Does this module include output isolation?
Yes, it has continuous ~250 V isolation between groups of 8 outputs and the backplane, but no isolation between individual outputs.
Q5: What is the typical output response time?
OFF to ON delay is ~70 µs nominal (≤1 ms max) and ON to OFF ~360 µs nominal (≤1 ms max).
Q6: How much backplane power does it use?
It draws about ~250 mA at 5.1 VDC and ~2 mA at 24 VDC, totaling ~1.32 W.
Q7: What are the environmental operating limits?
It operates from 0 °C to 60 °C and can be stored from −40 °C to 85 °C with up to 95 % non‑condensing humidity.
Q8: What are the physical size and weight of the module?
Typical dimensions are ~300 mm × 38.1 mm × 111.25 mm and weight ~0.26 kg.
