Technical Specifications
| Specification | Details |
|---|---|

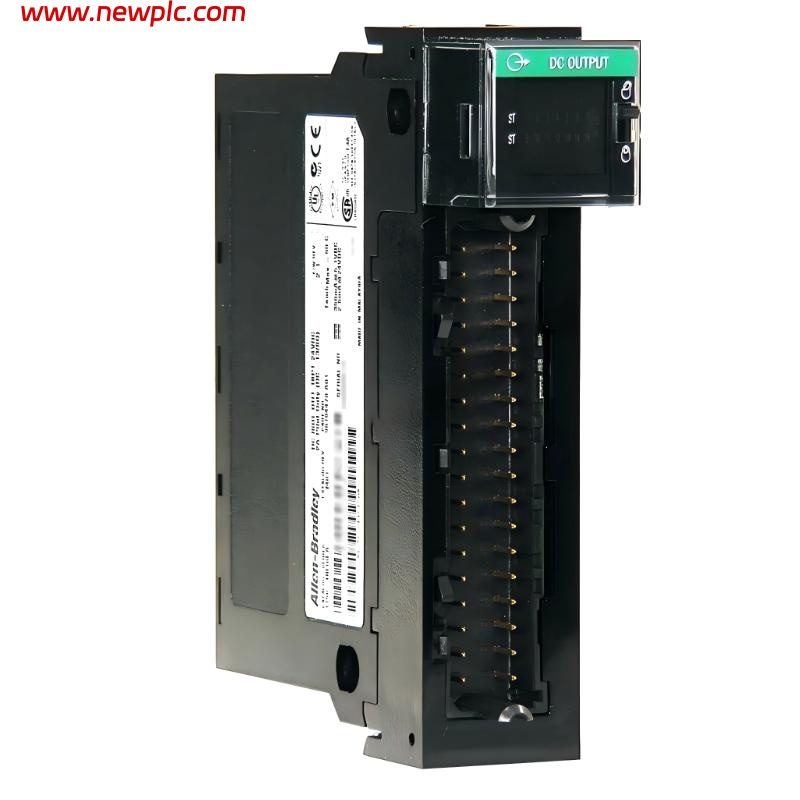

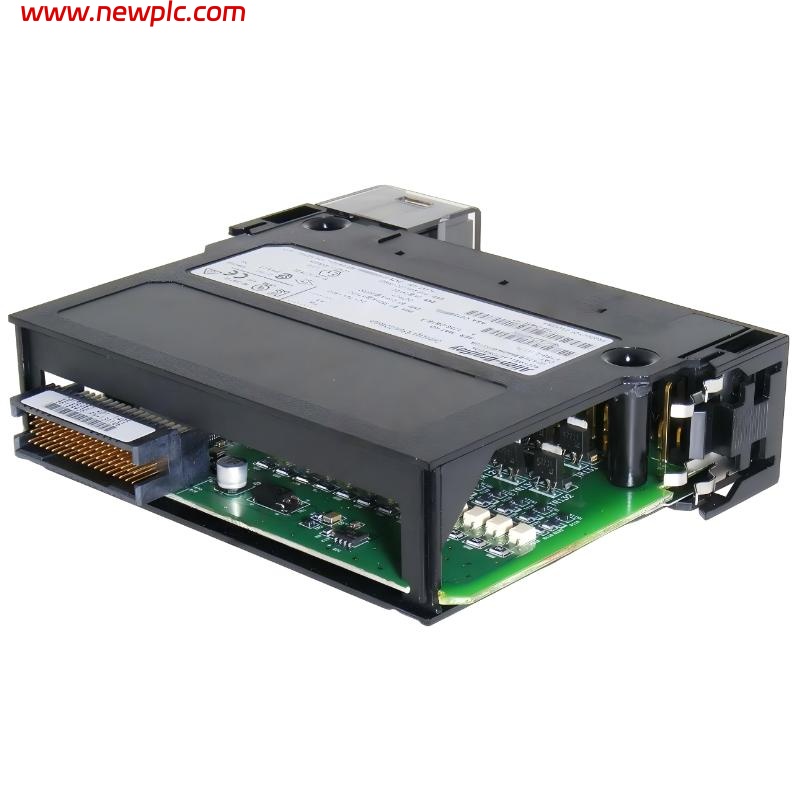

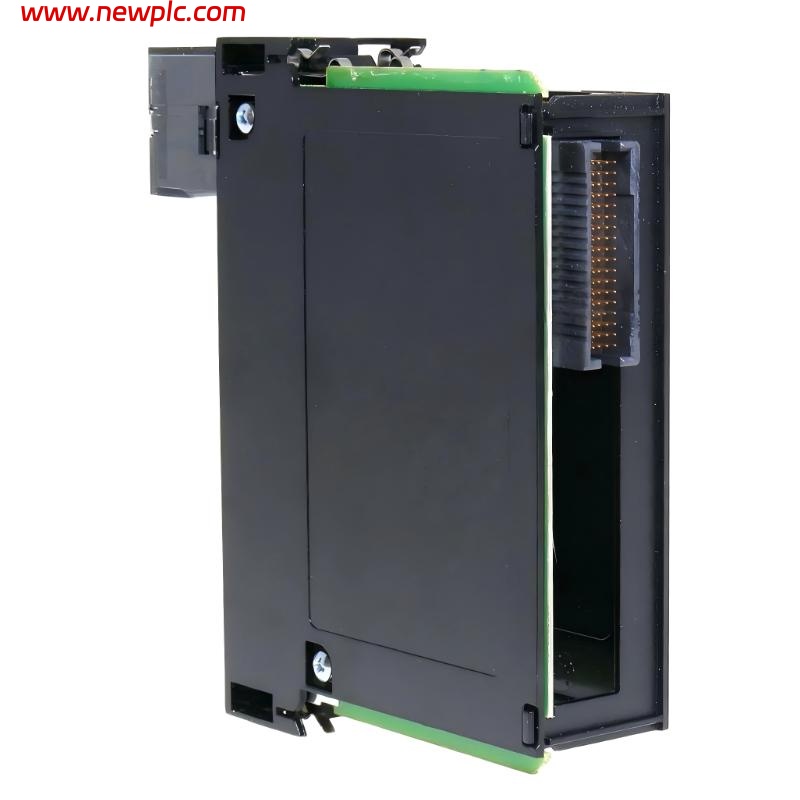

| Product Name | Allen‑Bradley 1756‑OB16I ControlLogix Isolated Digital DC Output Module |
| Module Type | Individually isolated digital DC output |
| Series | ControlLogix 1756 I/O family |
| Number of Outputs | 16 individually isolated DC output channels |
| Output Voltage Range | 10 – 30 V DC (nominal 12/24 V source) |
| Output Configuration | Sink/source outputs with individual isolation |
| Output Current per Point | Up to 2 A @ 30 °C, derated to 1 A @ 60 °C |
| Total Output Current | ~8 A @ 30 °C, ~4 A @ 60 °C (linear derating) |
| Isolation Voltage | ~250 V continuous (outputs‑to‑backplane) |
| Backplane Current (5.1 VDC) | ~350 mA |
| Backplane Current (24 VDC) | ~2.5 mA |
| Power Dissipation (Max) | ~3.6 W @ 60 °C |
| Minimum Load Current | ~1 mA per point typical |
| Surge Current per Point | ~4 A for 10 ms, repeatable every 2 s |
| Output Delay Time | OFF→ON ~1 ms max, ON→OFF ~2 ms max |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Connection Type | Removable terminal block (e.g., 1756‑TBCH / 1756‑TBS6H) |
| Mounting | Installed in ControlLogix chassis slot |
| Dimensions (H × W × D) | ~300 mm × 38.1 mm × 111.25 mm (standard 1756 module footprint) |
| Weight | ~0.34 kg |
FAQ
FAQ
Q1: What is the main purpose of the 1756‑OB16I module?
It provides 16 individually isolated DC output channels for switching external loads in a ControlLogix system.
Q2: What DC voltage range does this module operate in?
It supports an operating range of 10 – 30 V DC, with a nominal 12/24 V source.
Q3: How much current can each output channel supply?
Each channel can supply up to 2 A at 30 °C, derated to 1 A at 60 °C.
Q4: Is there electrical isolation in this module?
Yes, each output is individually isolated with approximately 250 V continuous isolation to the backplane.
Q5: What is the typical backplane power usage?
It draws about 350 mA at 5.1 VDC and about 2.5 mA at 24 VDC.
Q6: What are the output switching time characteristics?
Typical OFF→ON delay is up to ~1 ms and ON→OFF up to ~2 ms.
Q7: What are the typical physical dimensions of the module?
It follows the standard ControlLogix I/O module size, about 300 mm × 38.1 mm × 111.25 mm.
Q8: How much does the module weigh?
Approximately 0.34 kg.
