Technical Specifications
| Specification | Details |
|---|---|

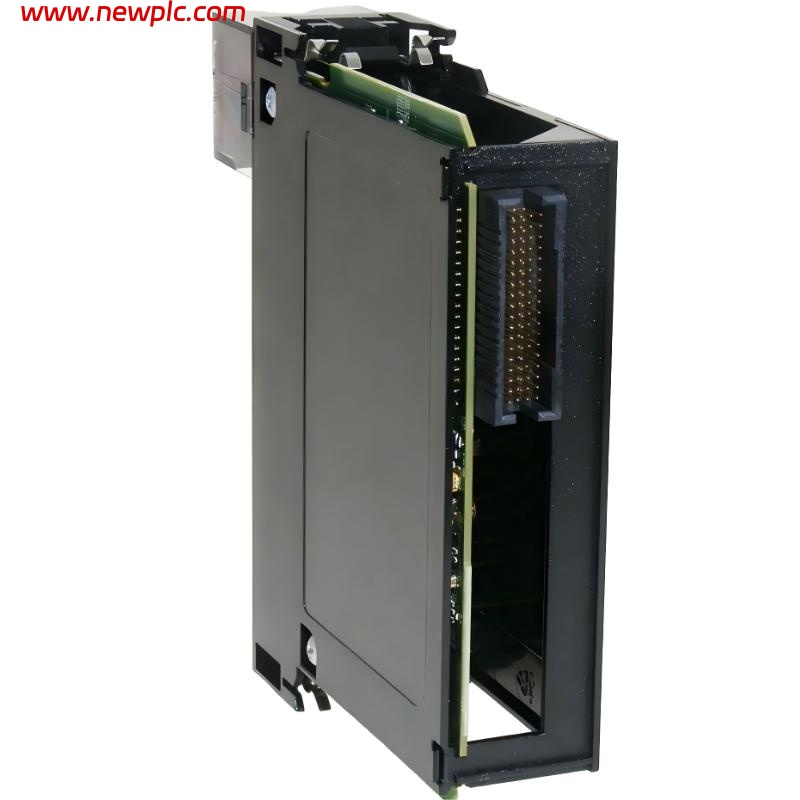

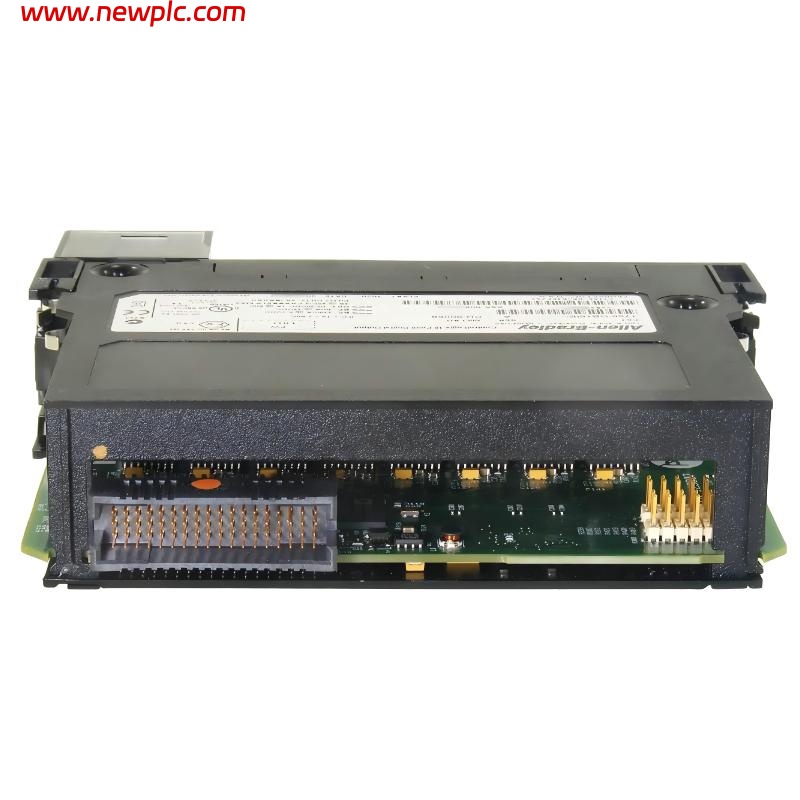

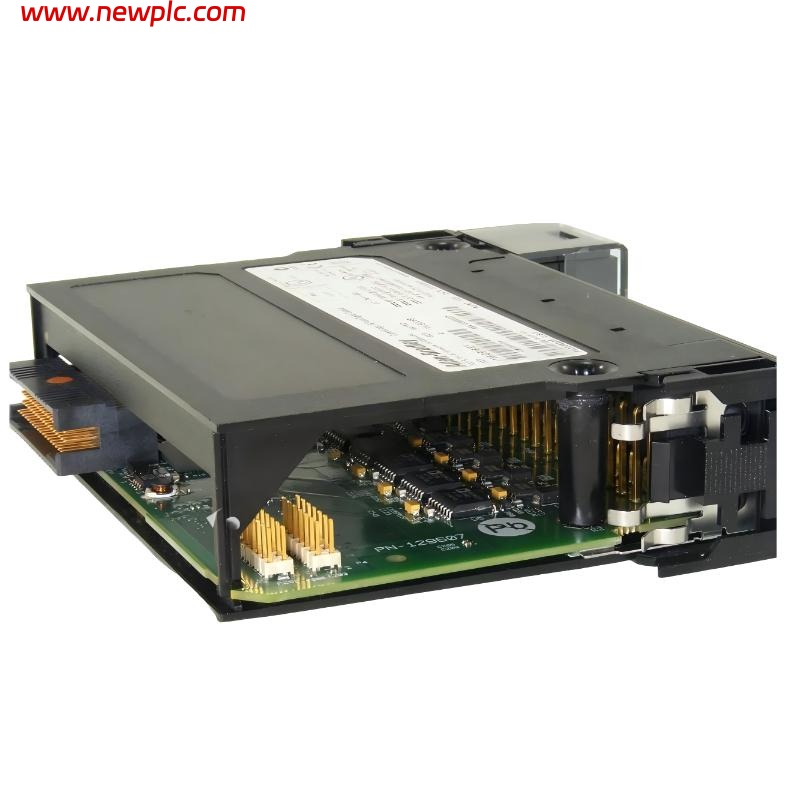

| Product Name | Allen‑Bradley 1756‑OB16IEF ControlLogix DC Isolated Output Module |
| Module Type | Digital DC output module with individual isolation and electronic fusing |
| Series | ControlLogix 1756 I/O family |
| Number of Outputs | 16 DC output channels (individually isolated) |
| Output Voltage Range | 10 – 30 V DC (nominal 12/24 V DC sink/source) |
| Output Current per Point | Up to 2 A per channel @ ~45 °C, derated to ~1 A @ 60 °C |
| Total Output Current | Up to ~8 A total @ ~45 °C (with 2 A per channel) or ~16 A total @ ~60 °C (1 A per channel) |
| Surge Current | ~4 A for 10 ms per channel, repeatable every 2 s |
| Minimum Load Current | ~1 mA per point |
| On‑State Voltage Drop | ~0.2 V DC @ 1 A, ~0.4 V DC @ 2 A |
| Isolation Voltage | ~250 V continuous between outputs and backplane |
| Response Time | Ultra‑fast switching (nominal ~15 μs on/off) |
| Backplane Current (5.1 VDC) | ~320 – 350 mA |
| Backplane Current (24 VDC) | ~3 mA |
| Power Dissipation (Max) | ~3.6 W @ 60 °C |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | −40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Connection Type | Removable terminal block (e.g., 1756‑TBS6H, 1756‑TBCH) |
| Mounting | Installed in ControlLogix chassis slot |
| Dimensions (H × W × D) | ~57 mm × 165 mm × 250 mm (approx.) |
| Weight | ~0.34 kg (~0.75 lbs) |
FAQ
FAQ
Q1: What is the primary purpose of the 1756‑OB16IEF module?
It provides sixteen individually isolated DC output channels with high‑speed response and electronic fusing for industrial control applications.
Q2: What range of DC voltage does the module support?
The module supports an operating voltage range of approximately 10 V to 30 V DC.
Q3: How much current can each output channel deliver?
Each channel can deliver up to about 2 A at ~45 °C, derated to about 1 A at 60 °C.
Q4: Does the module provide electrical isolation?
Yes, it features continuous isolation (around 250 V) between each group of outputs and the backplane.
Q5: What is the response time of the outputs?
Outputs have ultra‑fast switching with typical on/off times around 15 μs.
Q6: What removable terminal blocks are compatible?
Terminal blocks such as 1756‑TBS6H and 1756‑TBCH are used for field wiring connections.
Q7: What environments can the module operate in?
Standard industrial conditions: 0 °C to 60 °C for operation and −40 °C to 85 °C for storage.
Q8: What are the approximate size and weight of this module?
Typical dimensions are about 57 mm × 165 mm × 250 mm and weight around 0.34 kg (~0.75 lbs).
