Technical Specifications
| Specification | Details |
|---|---|

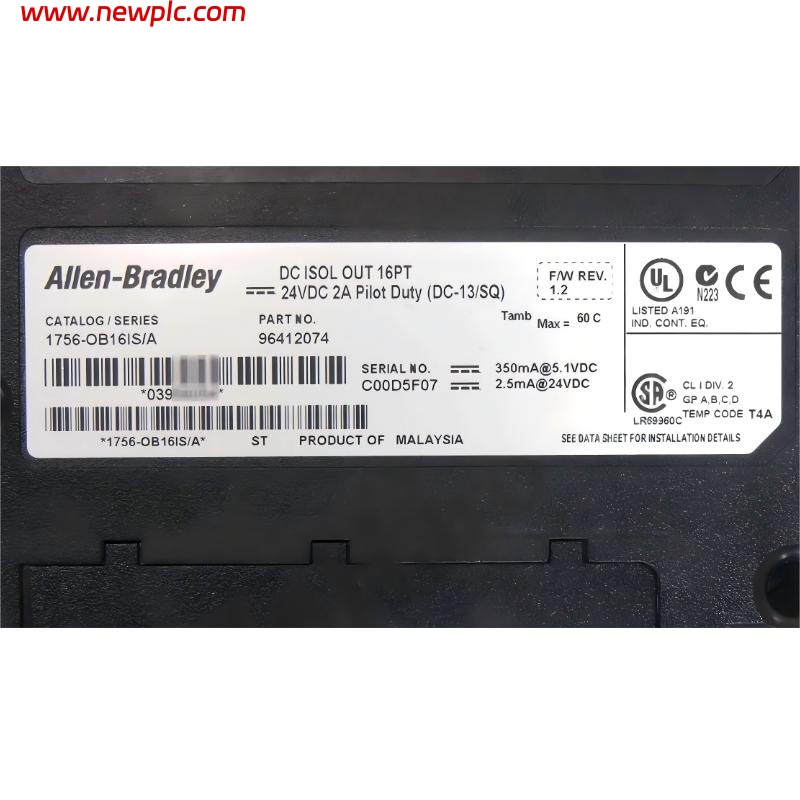

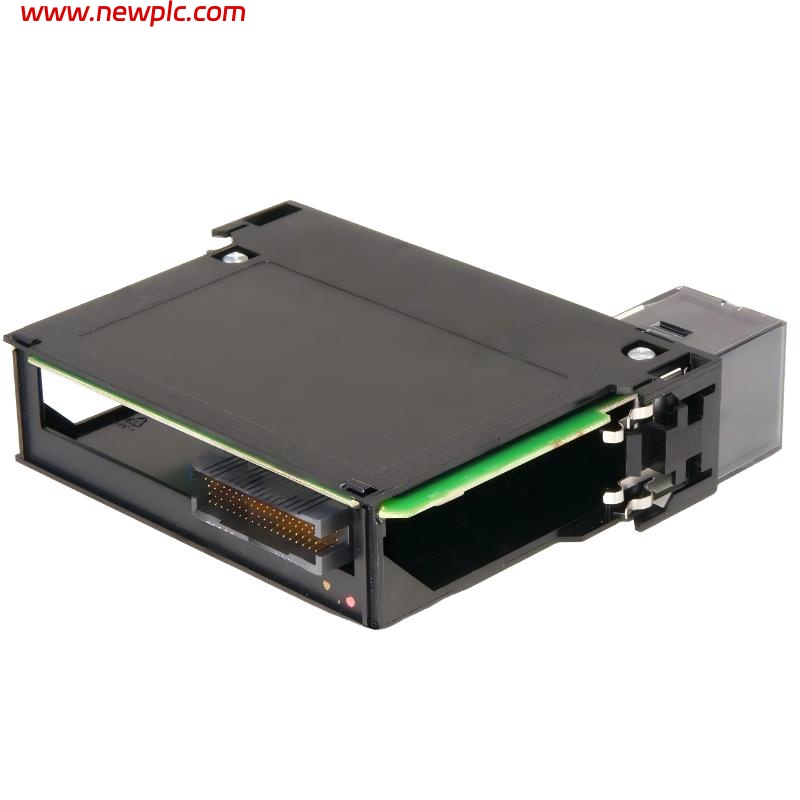

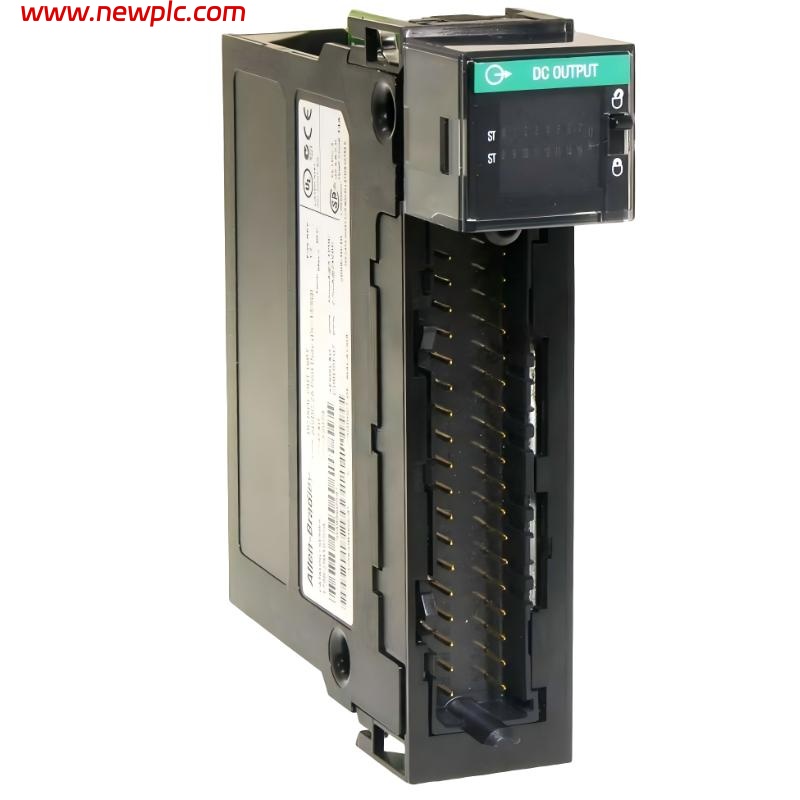

| Product Name | Allen‑Bradley 1756‑OB16IS ControlLogix Scheduled Isolated DC Output Module |
| Module Type | Digital DC output module with individual isolation and scheduled outputs |
| Series | ControlLogix 1756 I/O family |
| Number of Outputs | 16 individually isolated DC output channels, 8 scheduled |
| Output Voltage Range | 10 – 30 V DC (nominal 12/24 V DC) |
| Voltage Category | 12/24 V DC sink/source |
| Output Current per Point | 1 A per channel (@ 10–30 V DC) |
| Pilot Duty Rating | 2 A (DC‑13SQ) point rating (~30 °C) |
| Isolation Voltage | ~250 V continuous between outputs and backplane |
| Current Draw (Backplane) | ~350 mA @ 5.1 VDC / ~2.5 mA @ 24 VDC |
| Power Dissipation (Max) | ~3.6 W @ 60 °C (140 °F) |
| Output Delay Time | OFF→ON ~1 ms, ON→OFF ~2 ms max |
| Minimum Load Current | ~1 mA per point |
| Surge Current | ~4 A for 10 ms per point (repeatable) |
| Scheduled Output Feature | 8 of the 16 outputs can be synchronized/scheduled when coordinated system time is used |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Connection Type | Removable terminal block (e.g., 1756‑TBCH / 1756‑TBS6H) |
| Mounting | ControlLogix chassis slot |
| Dimensions (H × W × D) | ~300 mm × 38.1 mm × 111.25 mm (standard 1756 module footprint) |
| Weight | ~0.20 kg (0.44 lbs) |
FAQ
FAQ
Q1: What is the purpose of the 1756‑OB16IS module?
It provides 16 individually isolated DC output channels with scheduling support for controlled switching in industrial automation.
Q2: What DC voltage range does this module support?
The outputs operate over approximately 10 – 30 V DC with a nominal 12/24 V category.
Q3: How much current can each output deliver?
Each output channel is rated for 1 A continuous, with pilot duty up to 2 A at ~30 °C.
Q4: What is output isolation capability?
The module offers ~250 V continuous isolation between output channels and the backplane.
Q5: How many outputs are scheduled?
8 of the 16 outputs can be synchronized with coordinated system time for scheduled switching.
Q6: What are the typical backplane power requirements?
It draws about ~350 mA at 5.1 VDC and ~2.5 mA at 24 VDC from the backplane.
Q7: What are the typical output delay times?
OFF→ON delay is up to ~1 ms and ON→OFF delay up to ~2 ms.
Q8: What are the physical size and weight of the module?
It measures about 300 mm × 38.1 mm × 111.25 mm and weighs around ~0.20 kg.
