Technical Specifications
| Specification | Details |
|---|---|

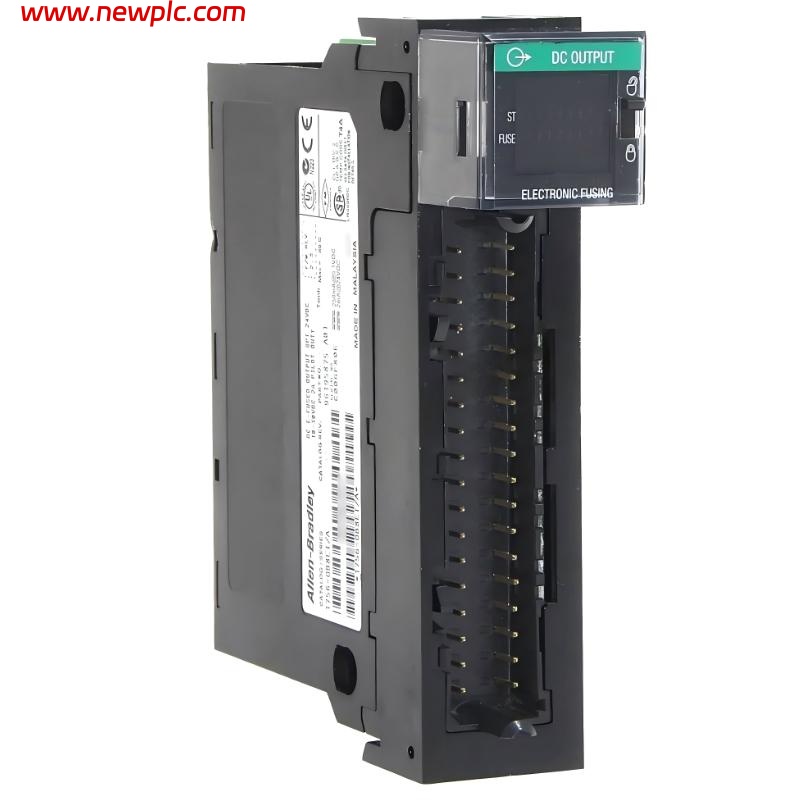

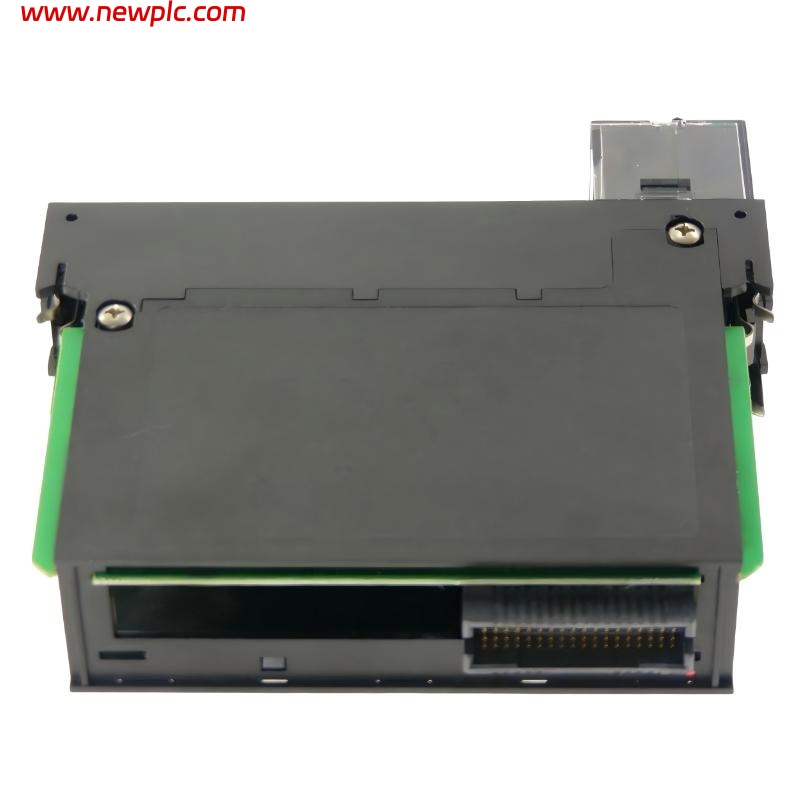

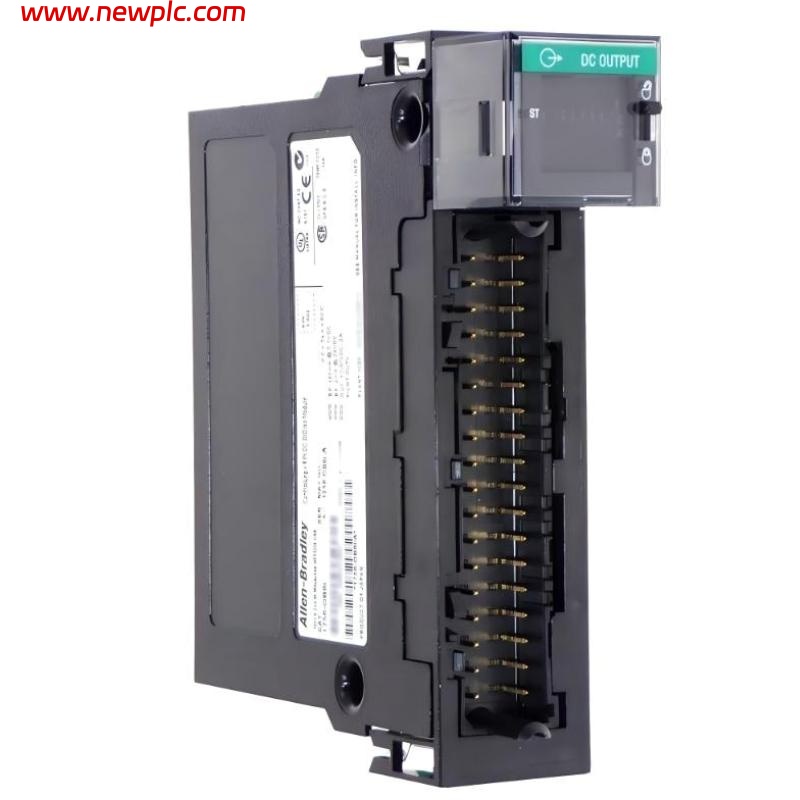

| Product Name | Allen‑Bradley 1756‑OB8 ControlLogix Digital DC Output Module |
| Module Type | Digital DC output module (sourcing) |
| Series | ControlLogix 1756 I/O family |
| Number of Outputs | 8 DC output channels |
| Output Voltage Range | 10 – 31.2 V DC (nominal 12/24 V supply) |
| Output Current per Point | Up to ~2 A per channel @ 30 °C, derated at higher temperatures |
| Total Output Current | ~8 A (max combined, derated at temperature) |
| Isolation Voltage | ~250 V continuous between outputs and backplane |
| Backplane Current (5.1 VDC) | ~200–300 mA |
| Backplane Current (24 VDC) | ~2 mA |
| Power Dissipation | ~2.5–4 W depending on load and temperature |
| Output Delay Time | Typical ~1 ms |
| Minimum Load Current | ~1 mA per channel |
| Surge Current | Pulse rating for fault and inrush conditions |
| Connection Type | Removable terminal block (e.g., 1756‑TBCH or 1756‑TBS6H) |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Dimensions (H × W × D) | ~300 mm × 38.1 mm × 111.25 mm (standard ControlLogix I/O format) |
| Weight | ~0.30–0.35 kg |
FAQ
FAQ
Q1: What is the main purpose of the 1756‑OB8 module?
It provides eight discrete DC output channels for driving external loads such as relays, solenoids, and actuators.
Q2: What DC voltage range does this module support?
It operates over approximately 10 – 31.2 V DC with a nominal 12/24 V supply.
Q3: How much current can each output channel deliver?
Each output can source up to around 2 A per point at 30 °C, with derating at higher temperatures.
Q4: Does the module provide isolation?
Yes, it provides continuous isolation (~250 V) between the output circuits and the backplane.
Q5: Does this module require separate power for outputs?
Yes — the DC outputs require an external DC power source (typically 24 V DC).
Q6: How is the module wired to field devices?
Field wiring connects through a removable terminal block such as 1756‑TBCH or 1756‑TBS6H.
Q7: What are the environmental operating limits?
It operates from 0 °C to 60 °C and can be stored from –40 °C to 85 °C with up to 95 % non‑condensing humidity.
Q8: What are the typical size and weight of the module?
Dimensions are roughly 300 mm × 38 mm × 111 mm and weight is about 0.30–0.35 kg.
