Technical Specifications
| Specification | Details |
|---|---|

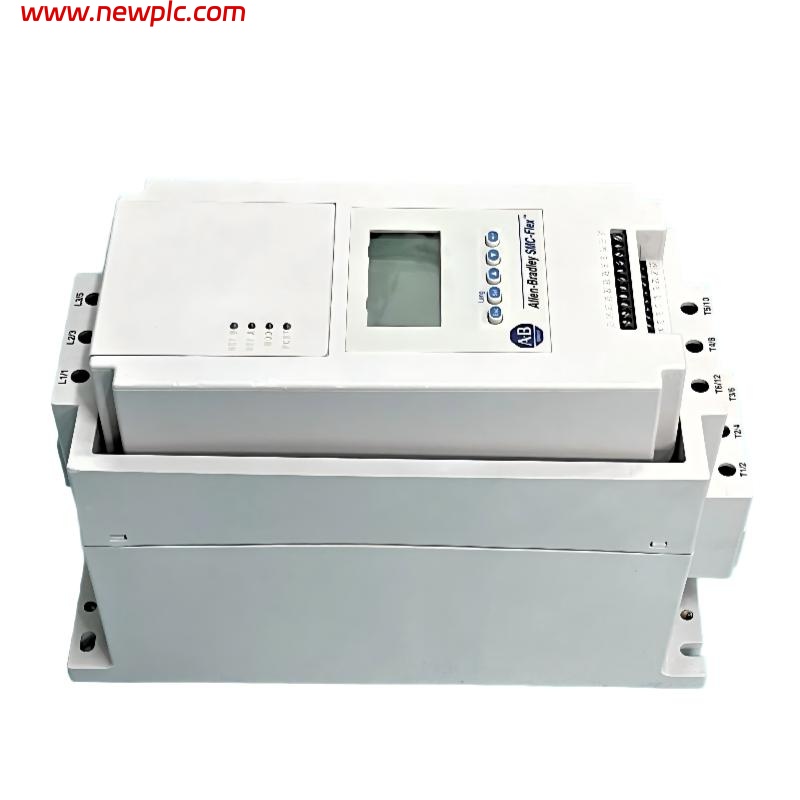

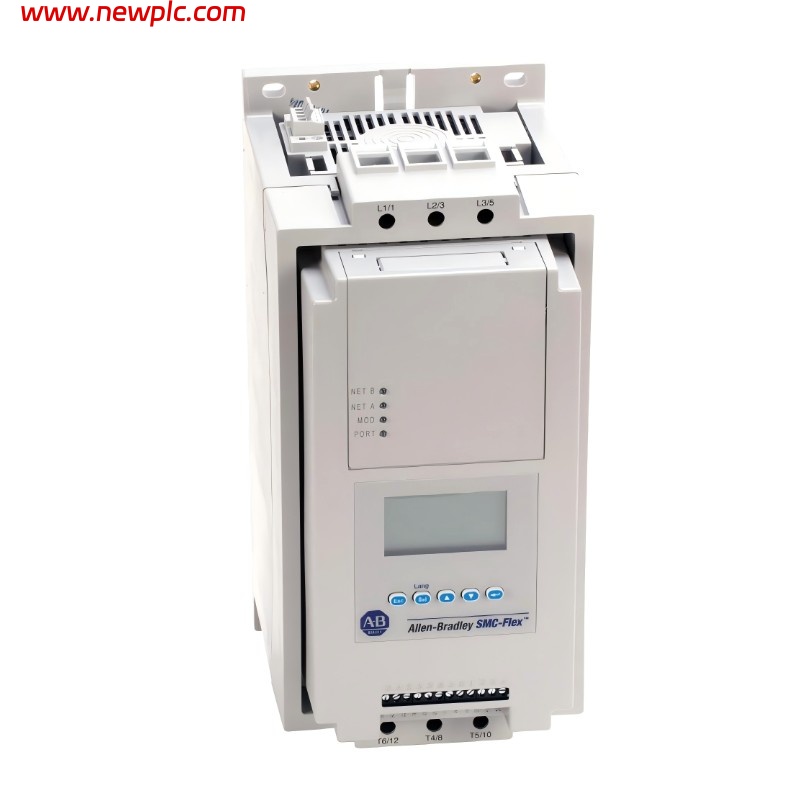

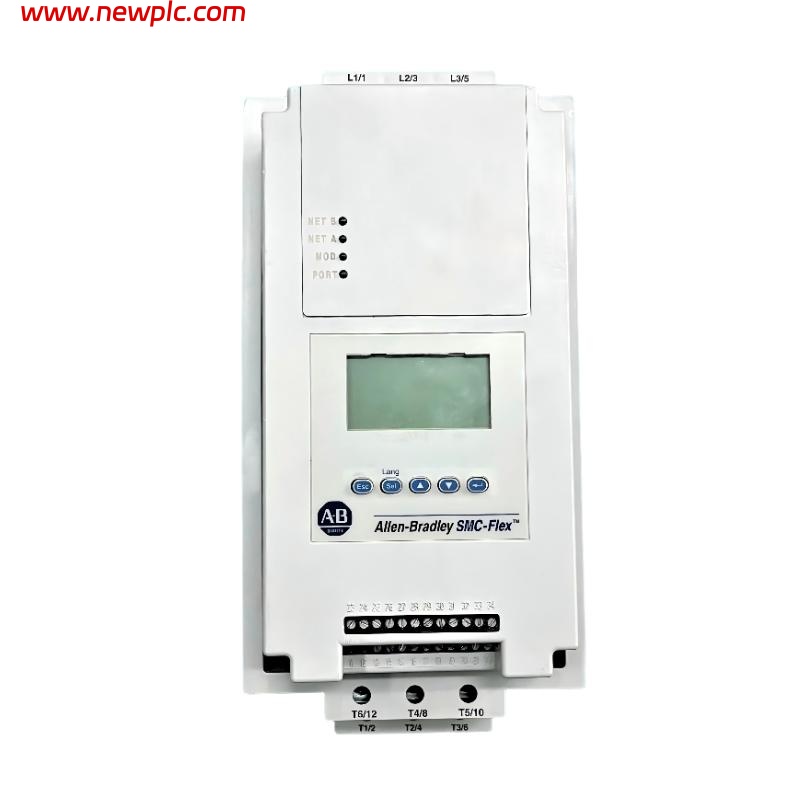

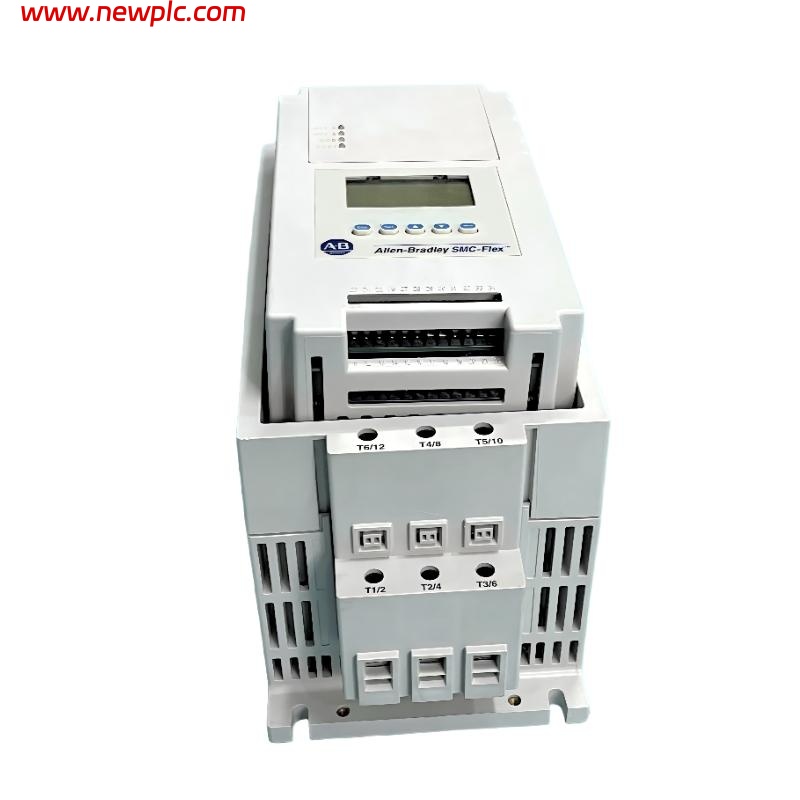

| Product Name | Allen-Bradley 150-F135NBD SMC-Flex Smart Motor Controller |
| Module Type | Solid-state soft starter |
| Series | SMC-Flex Series |
| Rated Current | 135 A |
| Input Voltage Range | 200 – 480 V AC (3-phase) |
| Control Voltage | 100 – 240 V AC / 24 V DC (depending on configuration) |
| Frequency Range | 50/60 Hz |
| Motor Power Rating | Up to ~75 kW (100 HP) @ 460 V |
| Starting Modes | Soft start, current limit start, kick start, full voltage start |
| Stopping Modes | Soft stop, coast stop |
| Bypass Contactor | Built-in internal bypass |
| Protection Features | Overload, phase loss, phase imbalance, stall, jam, underload |
| Communication | Optional modules (e.g., DeviceNet, EtherNet/IP, Modbus) |
| Interface | Keypad with LCD display |
| Operating Temperature Range | 0 °C to 50 °C (derating above typical limits) |
| Storage Temperature Range | –40 °C to 70 °C |
| Relative Humidity (Non-condensing) | 5 % to 95 % |
| Enclosure Type | Open type (panel mounting) |
| Dimensions (H × W × D) | ~290 mm × 220 mm × 210 mm |
| Weight | ~6.5 kg |
FAQ
FAQ
Q1: What is the 150-F135NBD used for?
It is a soft starter designed to control the acceleration and deceleration of three-phase induction motors.
Q2: What voltage range does this soft starter support?
It supports 200 – 480 V AC three-phase power systems.
Q3: What motor size can it handle?
It can control motors up to approximately 75 kW (100 HP) at 460 V.
Q4: Does it include a bypass contactor?
Yes, it has an integrated bypass contactor to reduce heat and improve efficiency during run mode.
Q5: What starting methods are available?
It supports soft start, current limit, kick start, and full voltage start modes.
Q6: What protection functions are built in?
It includes overload, phase loss, phase imbalance, stall, jam, and underload protection.
Q7: Can it communicate with other systems?
Yes, it supports optional communication modules such as EtherNet/IP, DeviceNet, and Modbus.
Q8: What are the physical size and weight of the unit?
The unit measures about 290 mm × 220 mm × 210 mm and weighs around 6.5 kg.
