Technical Specifications
| Specification | Details |
|---|---|

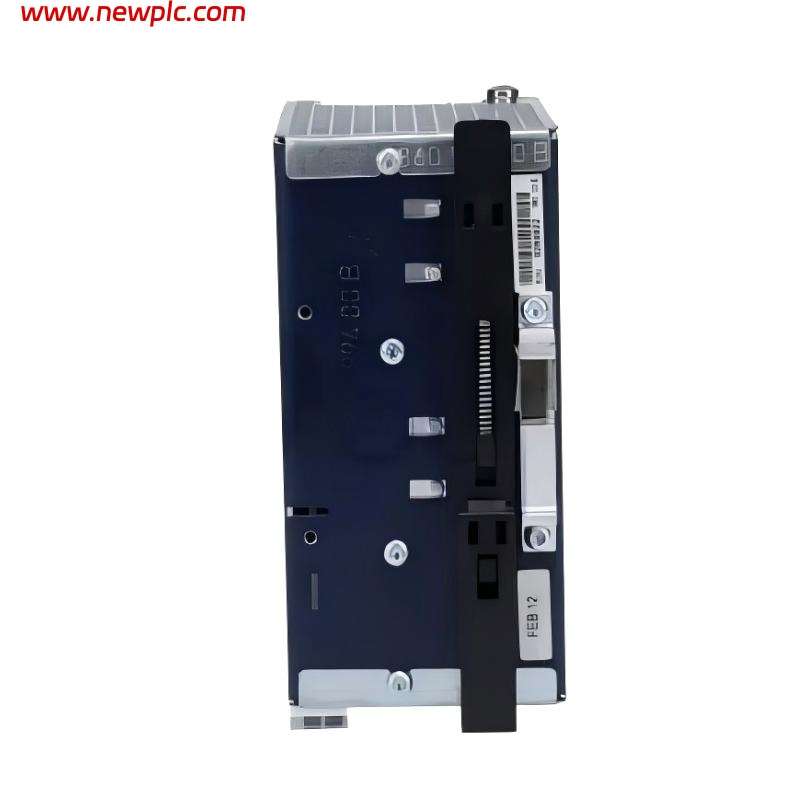

| Product Name | Allen-Bradley 1606-XLE240E Essential Power Supply |
| Module Type | Industrial switching power supply |
| Series | Bulletin 1606 XLE Series |
| Input Voltage Range | 100 – 240 V AC (85 – 264 V AC wide range) |
| Input Frequency | 50/60 Hz |
| Input Current | ~2.6 A @ 120 V AC / ~1.3 A @ 230 V AC |
| Output Voltage | 24 V DC (adjustable approx. 24 – 28 V DC) |
| Output Current | 10 A |
| Output Power | 240 W |
| Efficiency | ~94 % typical |
| Hold-up Time | ~20 ms @ full load |
| Ripple & Noise | < 50 mV peak-to-peak |
| Overload Protection | Yes (power boost / current limiting) |
| Overvoltage Protection | Yes |
| Short Circuit Protection | Yes |
| Parallel Operation | Supported for increased current |
| Connection Type | Screw terminals |
| Mounting | DIN rail mount |
| Operating Temperature Range | –25 °C to 70 °C (derating above ~60 °C) |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non-condensing) | 5 % to 95 % |
| Enclosure Type | IP20 (open type) |
| Dimensions (H × W × D) | ~124 mm × 40 mm × 117 mm |
| Weight | ~0.60 kg |
FAQ
FAQ
Q1: What is the main function of the 1606-XLE240E?
It converts AC input power into a stable 24 V DC output for industrial control systems.
Q2: What input voltage range does it support?
It supports a wide input range of 85 – 264 V AC, making it suitable for global use.
Q3: How much output power can it deliver?
It provides up to 240 W with a 24 V DC output at 10 A.
Q4: Can the output voltage be adjusted?
Yes, the output voltage can be adjusted slightly, typically between 24 V and 28 V DC.
Q5: Does it support parallel operation?
Yes, multiple units can be connected in parallel to increase total output current.
Q6: What protections are included?
It includes overload, overvoltage, and short-circuit protection for safe operation.
Q7: What mounting method is used?
It is designed for DIN rail mounting in control panels.
Q8: What are the size and weight of the power supply?
It measures approximately 124 mm × 40 mm × 117 mm and weighs about 0.60 kg.
