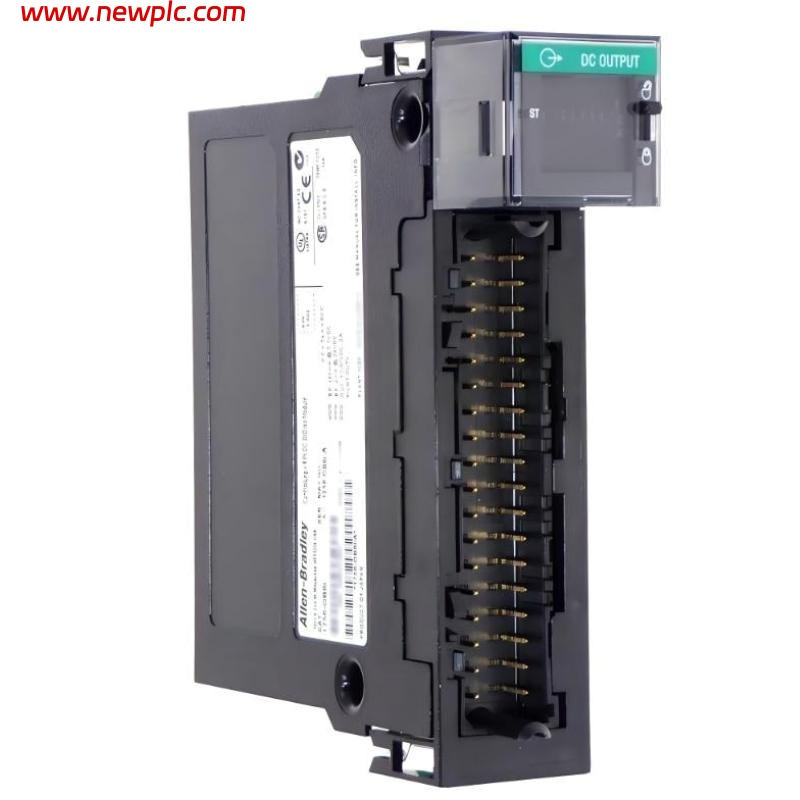

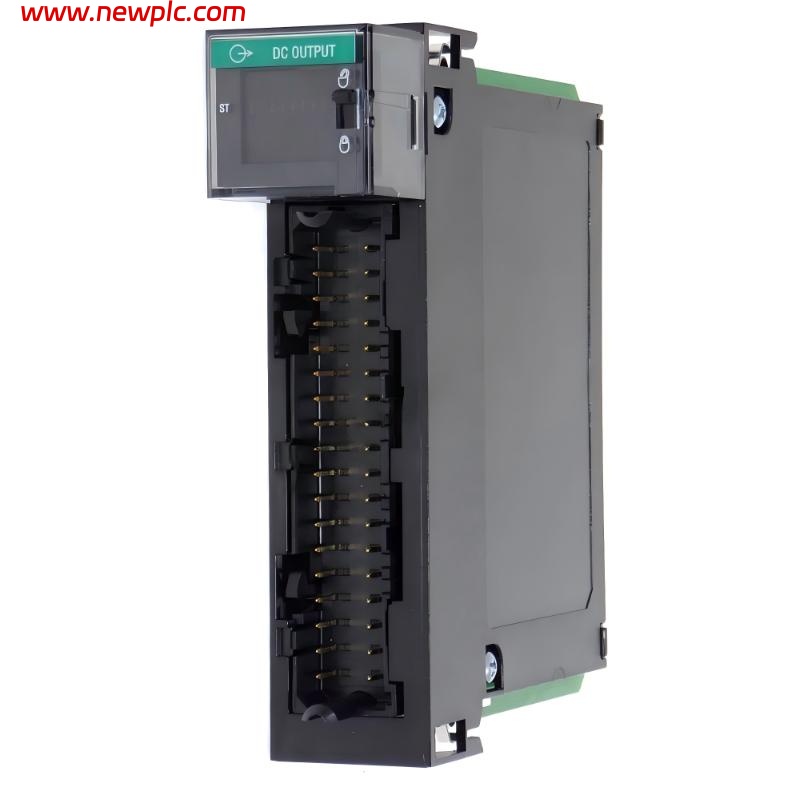

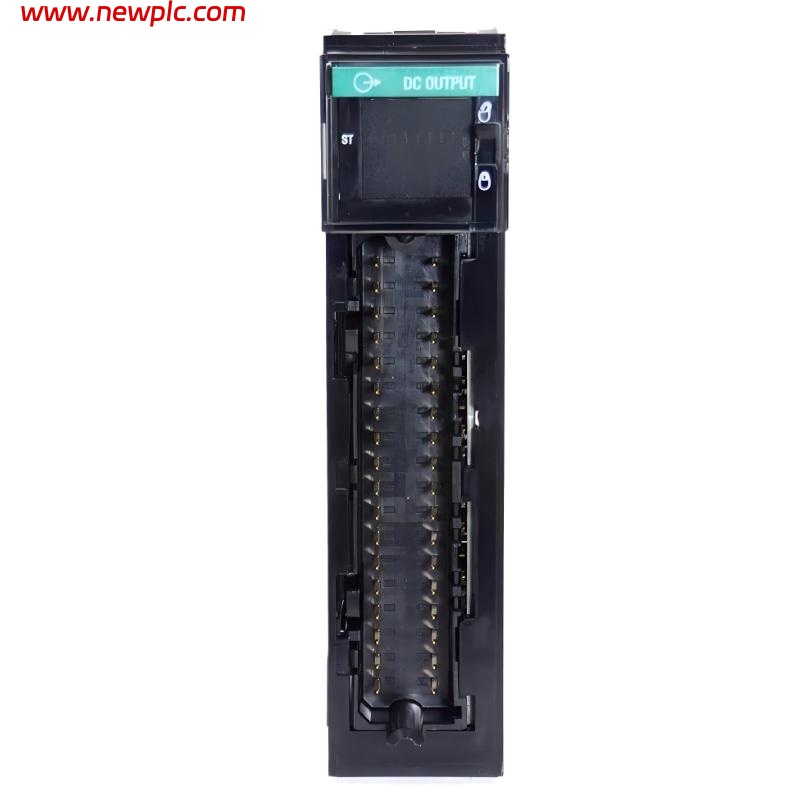

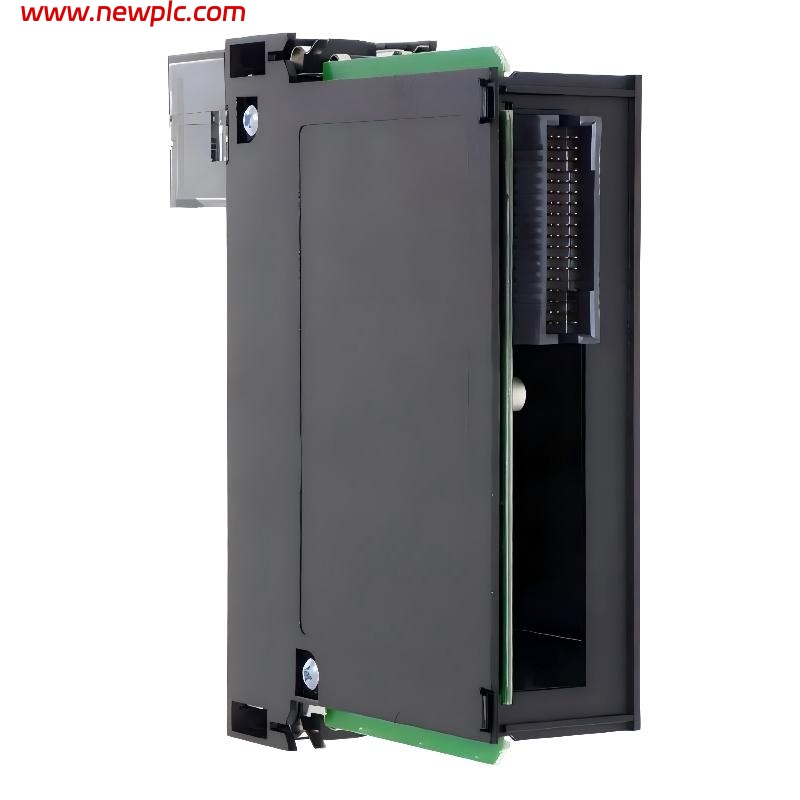

Allen Bradley 1756-OB8I Individually isolated digital DC output module

FAQ

Q1: What is the function of the 1756-OB8I module?
It provides 8 individually isolated DC output channels for controlling field devices in ControlLogix systems.

Q2: What voltage range does this module support?
It operates within 10 – 30 V DC, suitable for standard 12 V and 24 V DC systems.

Q3: How much current can each output handle?
Each channel can supply up to about 2 A at 30 °C, with derating at higher temperatures.

Q4: Does each output have isolation?
Yes, each output channel is individually isolated, improving protection and reducing electrical interference.

Q5: What type of loads can it control?
It can drive relays, solenoids, contactors, and other DC loads.

Q6: Does it require an external power supply?
Yes, an external DC power supply (typically 24 V DC) is required for field outputs.

Q7: What are the switching response times?
Typical switching times are up to ~1 ms for ON and ~2 ms for OFF transitions.

Q8: What are the physical size and weight?
The module measures about 300 mm × 38.1 mm × 111.25 mm and weighs approximately 0.30 kg.
