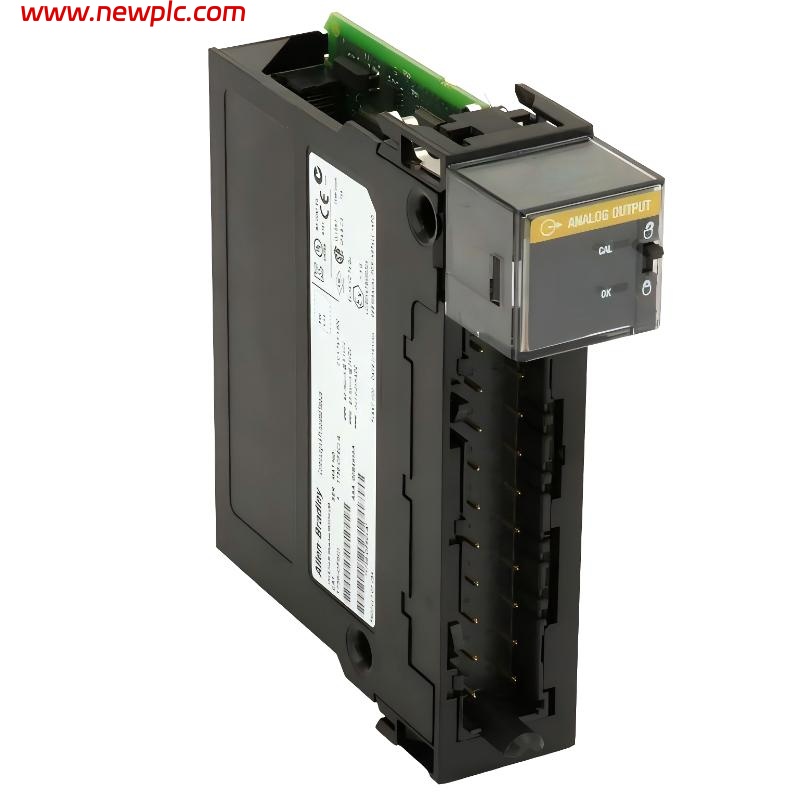

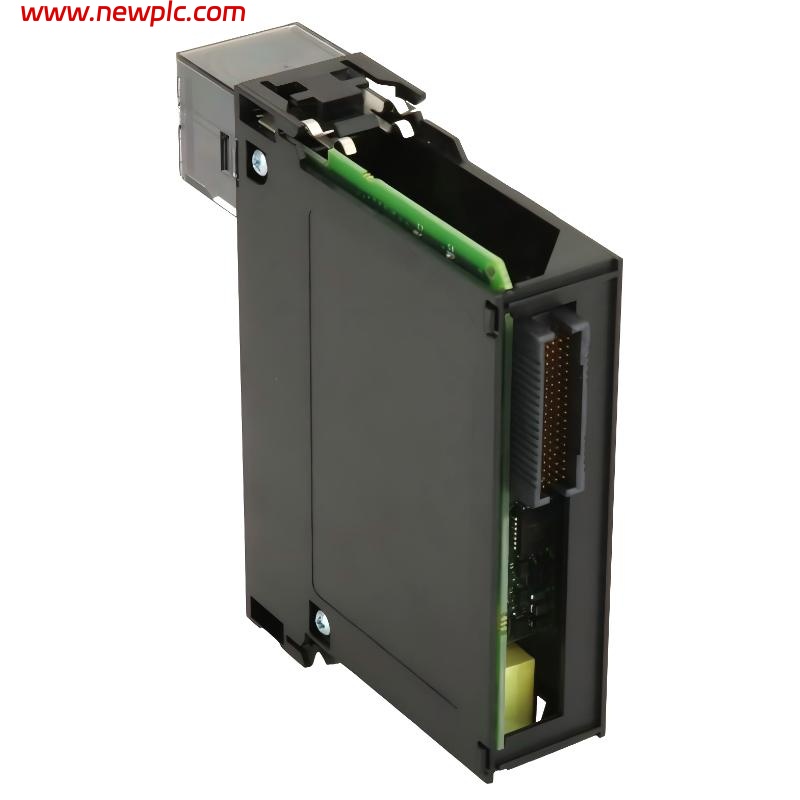

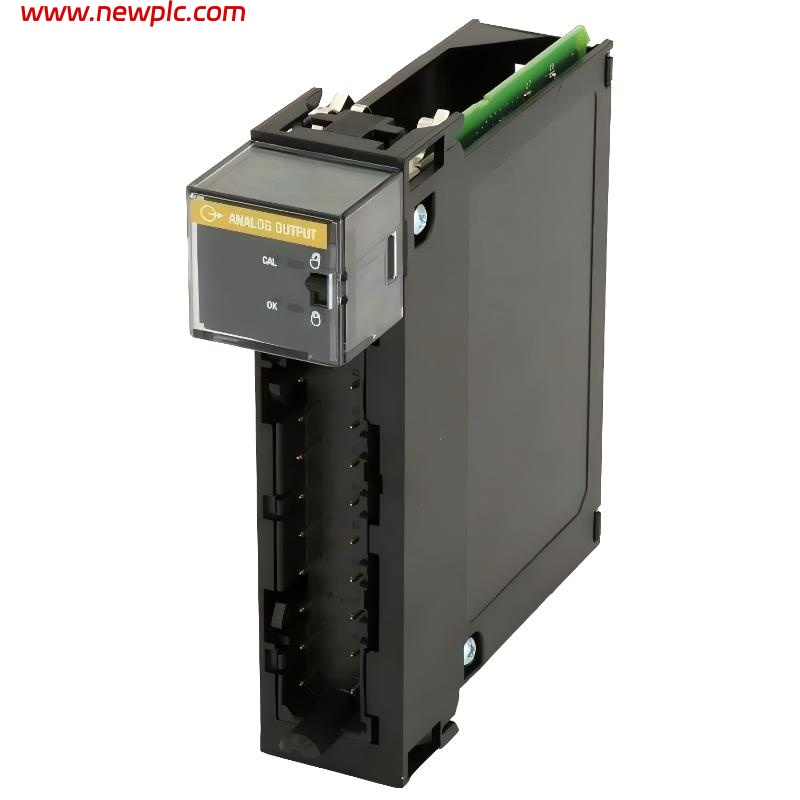

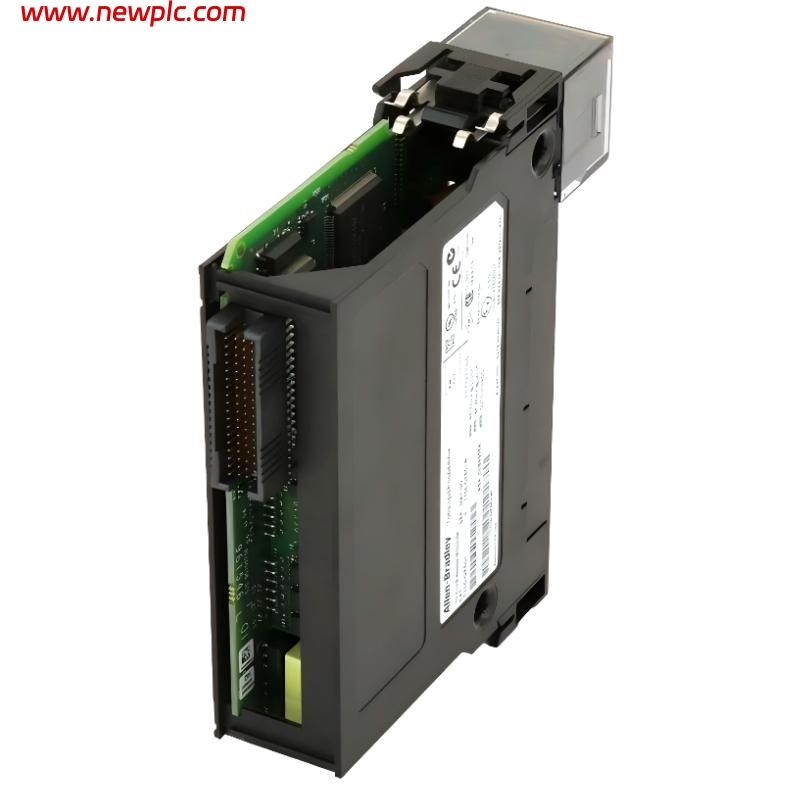

Allen Bradley 1756-OF6CI Isolated analog current output module

FAQ

Q1: What is the main function of the 1756-OF6CI module?
It provides six isolated analog current outputs for precise control of field devices such as valves and actuators.

Q2: What output signal types are supported?
It supports standard industrial current signals including 0–20 mA and 4–20 mA.

Q3: How many channels are available?
The module offers 6 independently isolated output channels.

Q4: Does each channel have isolation?
Yes, each output channel is individually isolated to improve noise immunity and system protection.

Q5: What is the typical resolution and accuracy?
It provides about 13-bit resolution with typical accuracy around ±0.1 % of full scale.

Q6: What are the backplane power requirements?
It draws approximately 250 mA at 5.1 VDC and about 300 mA at 24 VDC.

Q7: What wiring accessories are required?
It requires removable terminal blocks such as 1756-TBNH or 1756-TBSH for field wiring.

Q8: What are the physical dimensions and weight?
The module measures approximately 51 mm × 406 mm × 254 mm and weighs about 0.40 kg.
