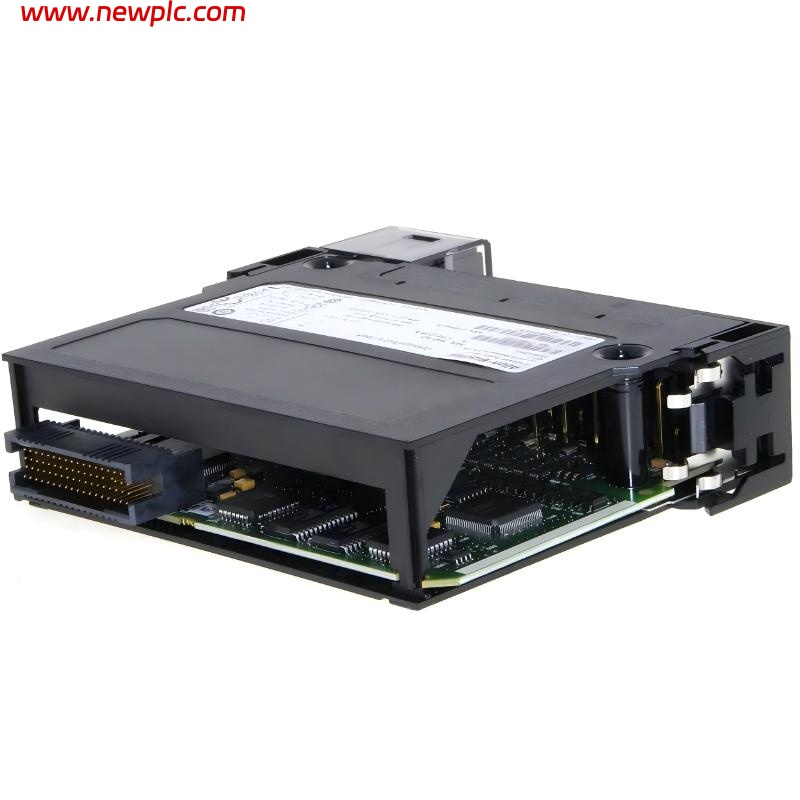

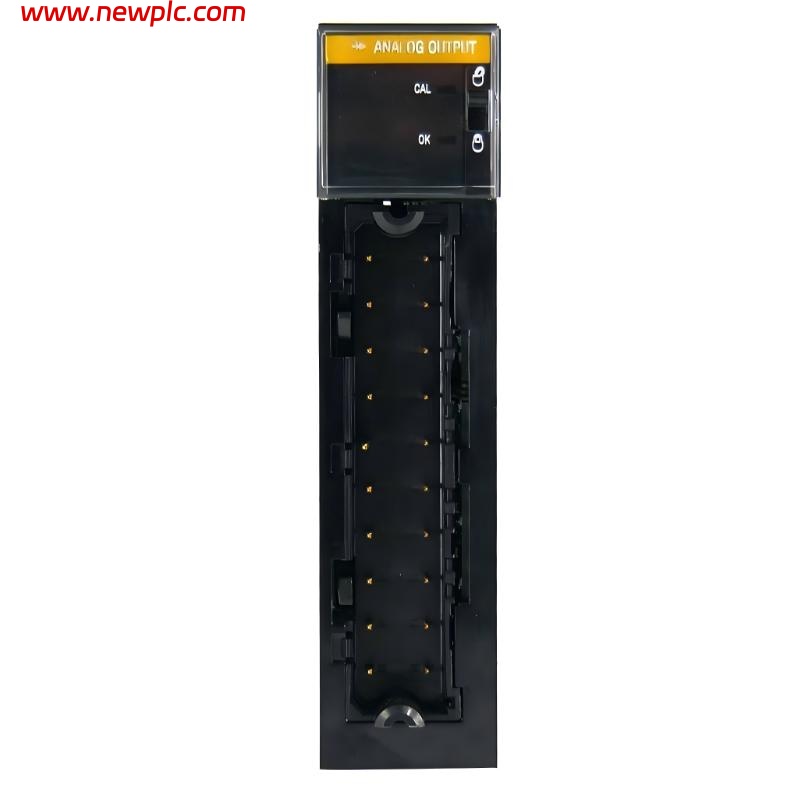

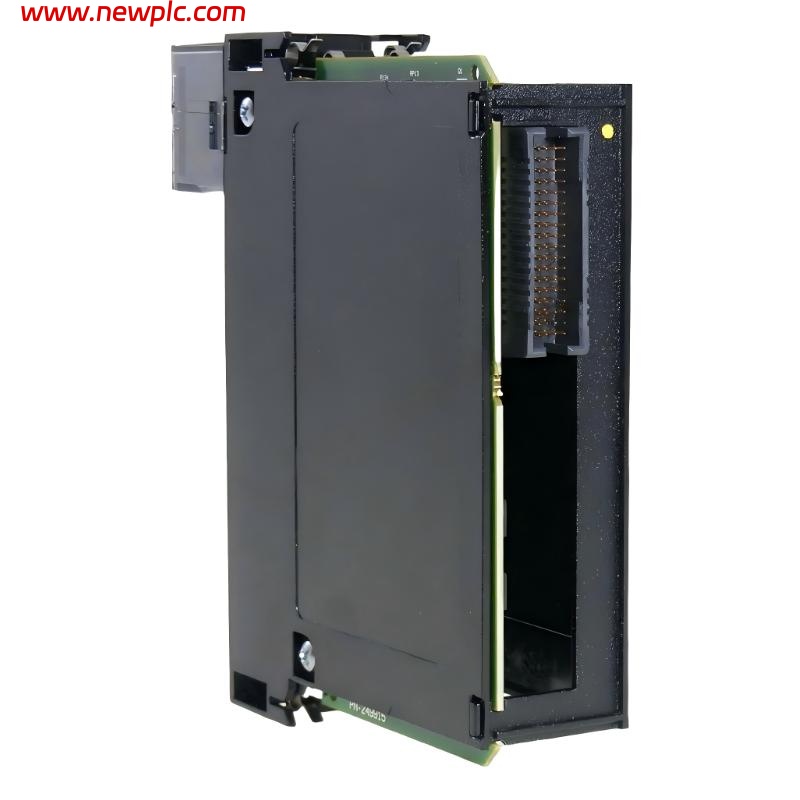

Allen Bradley 1756-OF8 Analog output module

FAQ

Q1: What types of signals can the 1756-OF8 output?
It supports both voltage (0–10 V, ±10 V) and current (0–20 mA, 4–20 mA) signals.

Q2: How many channels does this module provide?
The module provides 8 independent analog output channels.

Q3: What is the resolution of the outputs?
Each channel features 16-bit resolution for precise signal control.

Q4: What load requirements must be met?
Voltage outputs require at least 2 kΩ load, and current outputs support up to 500 Ω load.

Q5: Can each channel be configured individually?
Yes, each output channel can be configured independently via software.

Q6: What is the typical update speed?
The module updates outputs at approximately 1 ms per channel.

Q7: What are the physical dimensions and weight?
It measures about 300 mm × 38.1 mm × 111.25 mm and weighs approximately 0.36 kg.

Q8: What environmental conditions can it operate in?
It operates from 0 °C to 60 °C and can be stored from –40 °C to 85 °C with up to 95 % non-condensing humidity.
