Technical Specifications
| Specification | Details |
|---|---|

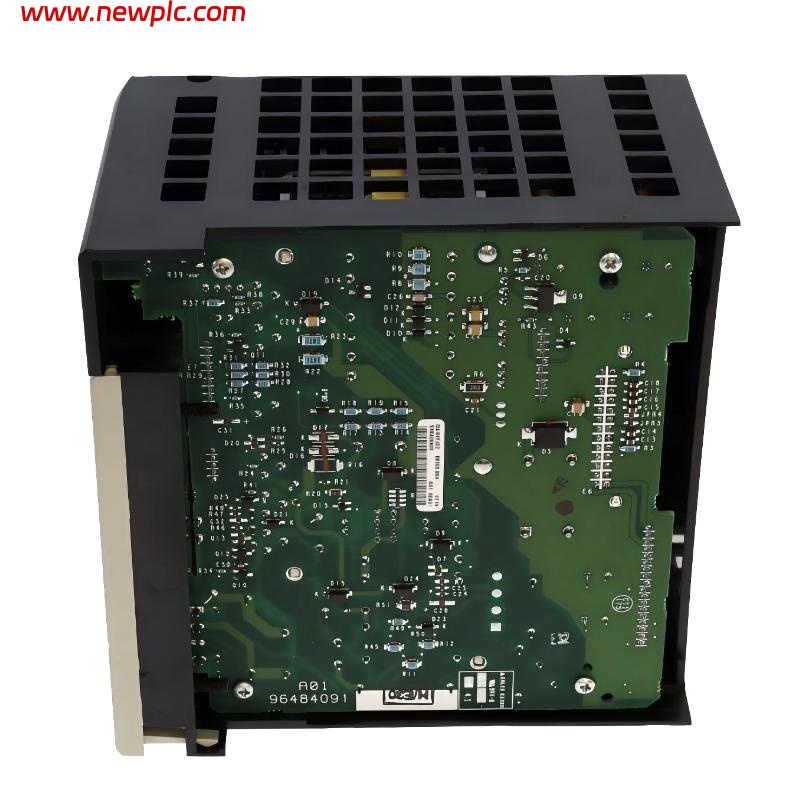

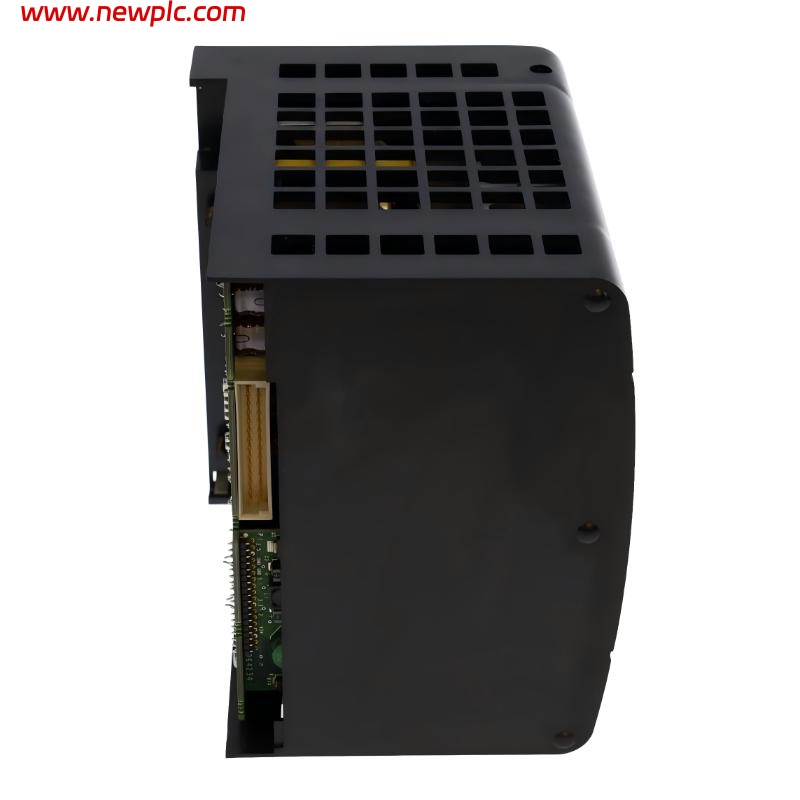

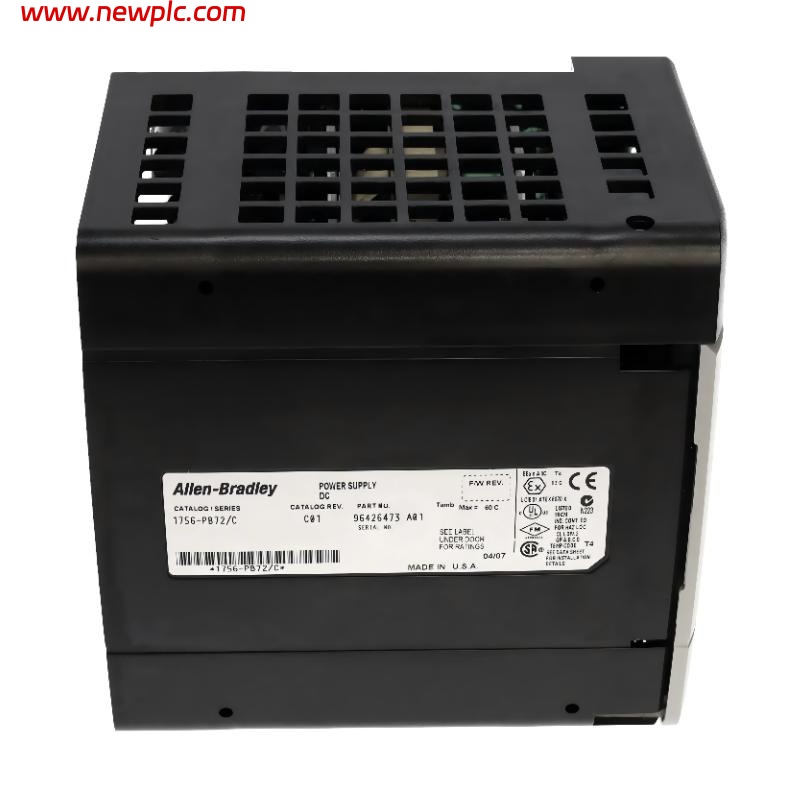

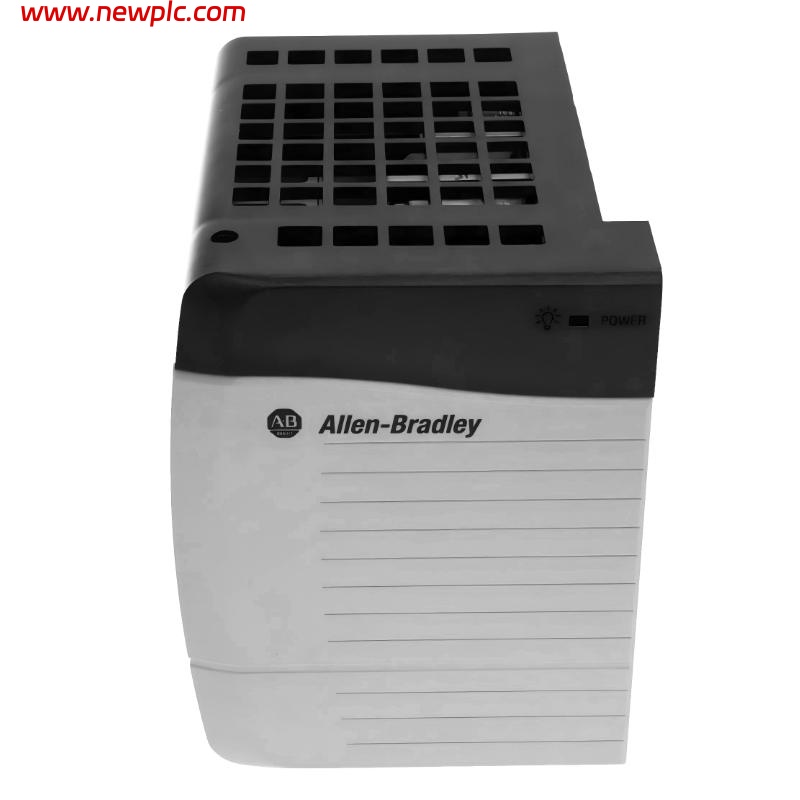

| Product Name | Allen‑Bradley 1756‑PB72 ControlLogix Power Supply |
| Module Type | AC power supply for ControlLogix chassis |
| Series | ControlLogix 1756 I/O family |
| Input Voltage Range | 85 – 265 VAC, 47 – 63 Hz |
| Nominal Input Voltage | 120/240 VAC |
| Input Current (Max) | ~9 A @ 120 VAC |
| Output Voltage | 24 V DC (backplane rail) |
| Output Current | 7.2 A |
| Output Power | ~172.8 W |
| Backplane Rails Provided | 1.2 V, 3.3 V, 5.1 V, 24 V DC |
| Hold‑Up Time | ~10 ms @ full load |
| Protections | Overload, overvoltage, short‑circuit protection |
| LED Indicators | Power OK / Fault |
| Mounting | Installed in ControlLogix chassis left‑side power slot |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Isolation Voltage | ~250 V continuous (input‑to‑output/backplane) |
| Connection Type | Chassis backplane connection |
| Dimensions (H × W × D) | ~178 mm × 79 mm × 158 mm |
| Weight | ~1.5 kg |
FAQ
FAQ
Q1: What is the 1756‑PB72 used for?
It supplies DC backplane power to ControlLogix chassis and modules.
Q2: What AC input range does it support?
It accepts a wide AC range from 85 VAC to 265 VAC at 47–63 Hz.
Q3: How much DC current can it deliver?
It provides up to approximately 7.2 A of 24 V DC output current.
Q4: What is the total output power?
The module’s output power is about 172.8 W.
Q5: What protection features are included?
It has built‑in protection for overloads, overvoltage, and short circuits.
Q6: Does it indicate status?
Yes — LED indicators show power‑OK and fault conditions.
Q7: Where is this power supply installed?
It installs in the dedicated left‑side power slot of a ControlLogix chassis.
Q8: What are the physical size and weight?
It measures about 178 mm × 79 mm × 158 mm and weighs approximately 1.5 kg.
