Technical Specifications
| Specification | Details |
|---|---|

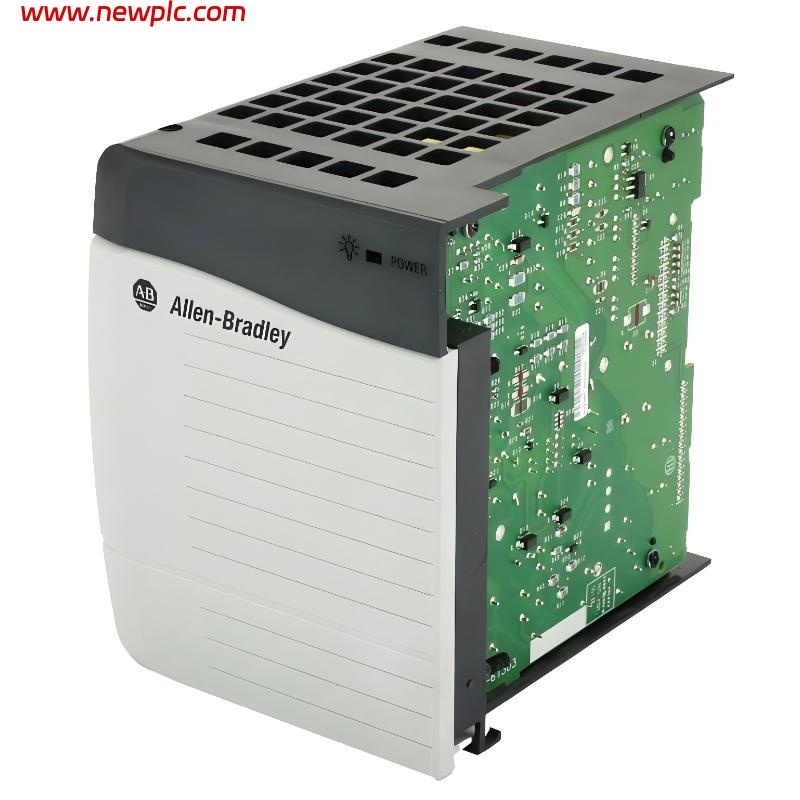

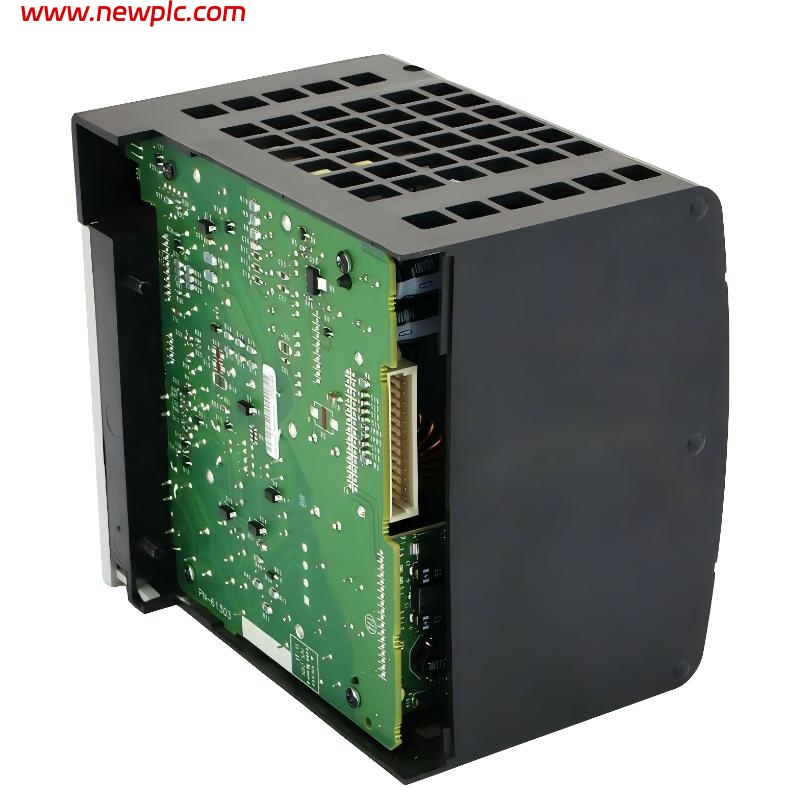

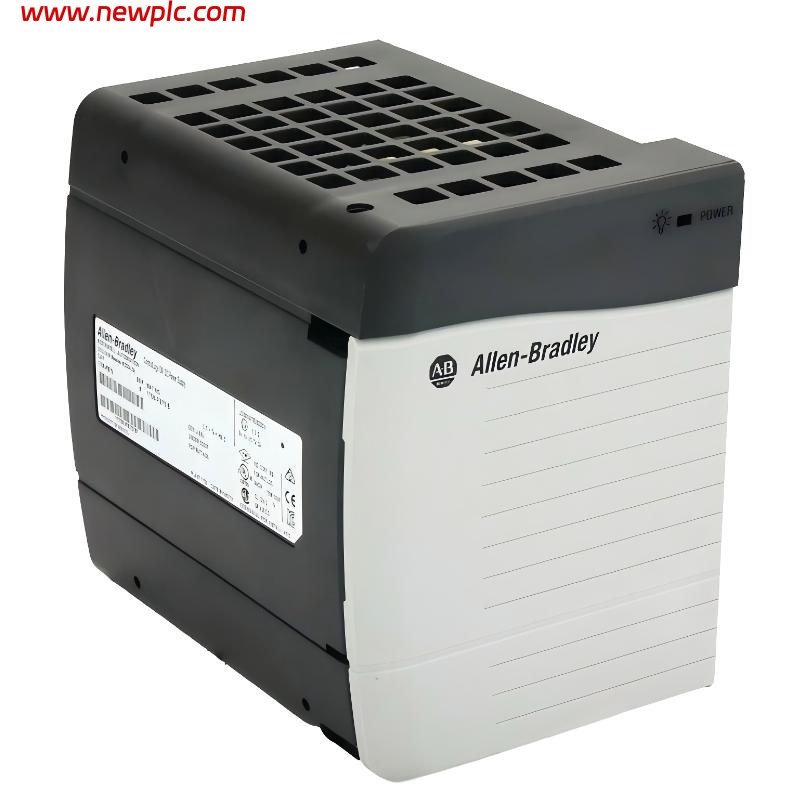

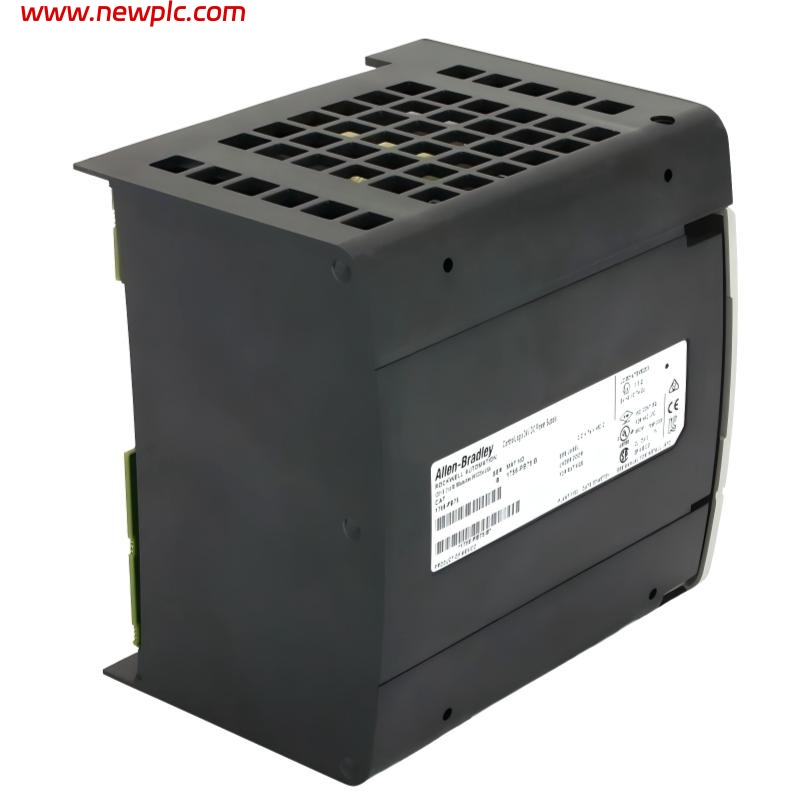

| Product Name | Allen‑Bradley 1756‑PB75 ControlLogix DC Power Supply |
| Module Type | Standard DC power supply module |
| Series | ControlLogix 1756 I/O family |
| Input Voltage Range | 18 – 32 V DC (nominal 24 V DC) |
| Nominal Input Voltage | 24 V DC |
| Input Power | ~95 W max |
| Output Power | 75 W @ 0 – 60 °C |
| Output Voltages & Currents | 1.2 V DC @ 1.5 A; 3.3 V DC @ 4 A; 5.1 V DC @ 13 A; 24 V DC @ 2.8 A |
| Hold‑Up Time | ~35–40 ms (depending on input level) |
| Isolation Voltage | ~250 V continuous reinforced insulation (input to backplane) |
| Max Inrush Current | ~30 A |
| Mounting | Installed in left‑side slot of ControlLogix chassis |
| Chassis Compatibility | Most 1756 Series B/C chassis (e.g., 1756‑A4, A7, A10, A13, A17) |
| Operating Temperature Range | 0 °C to 60 °C |
| Storage Temperature Range | –40 °C to 85 °C |
| Relative Humidity (Non‑condensing) | 5 % to 95 % |
| Connection Type | Chassis backplane connection |
| Dimensions (H × W × D) | ~140 mm × 112 mm × 145 mm |
| Weight | ~0.95 kg (~2.10 lb) |
FAQ
FAQ
Q1: What is the purpose of the 1756‑PB75 module?
It supplies DC backplane power to a ControlLogix chassis and its installed I/O modules.
Q2: What input voltage range does this power supply accept?
It operates from 18 V to 32 V DC with a nominal 24 V input.
Q3: How much output power does it provide?
It delivers up to approximately 75 W of total power to the chassis at 0 – 60 °C.
Q4: What output rails and currents are available?
It provides multiple backplane DC rails including 1.2 V, 3.3 V, 5.1 V, and 24 V with respective currents of ~1.5 A, ~4 A, ~13 A, and ~2.8 A.
Q5: Does this module have isolation protection?
Yes, it has reinforced insulation rated around 250 V continuous between the power input and backplane.
Q6: How long can it maintain output during brief input drops?
Hold‑up times are around 35–40 ms depending on input DC voltage level.
Q7: What chassis can it be installed in?
It fits the left‑side power slot of most Series B or C ControlLogix 1756 chassis such as A4, A7, A10, A13, or A17.
Q8: What are the size and weight of the module?
The unit measures approximately 140 mm × 112 mm × 145 mm and weighs about 0.95 kg.
