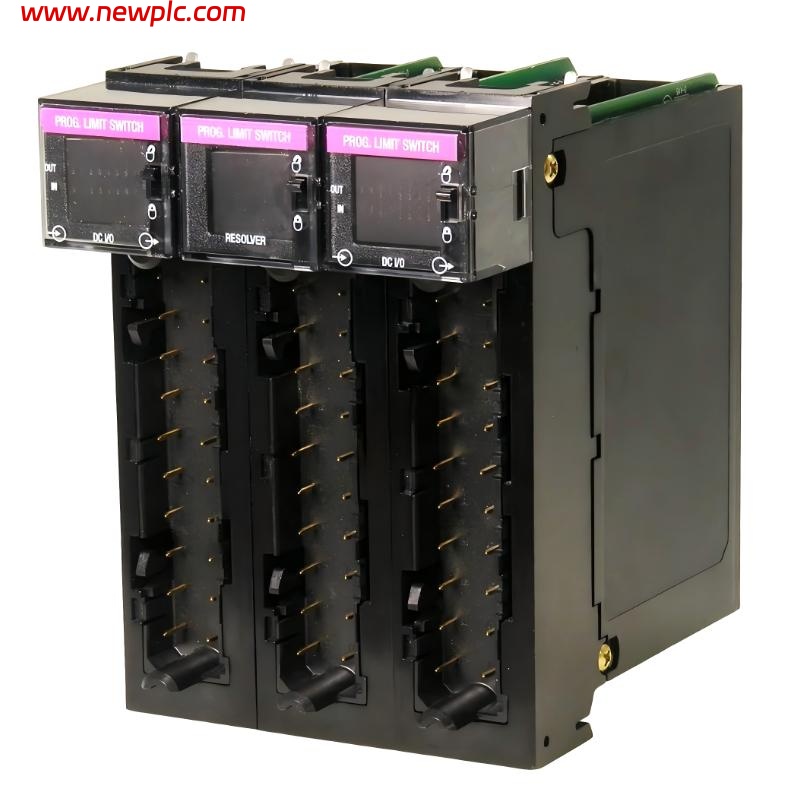

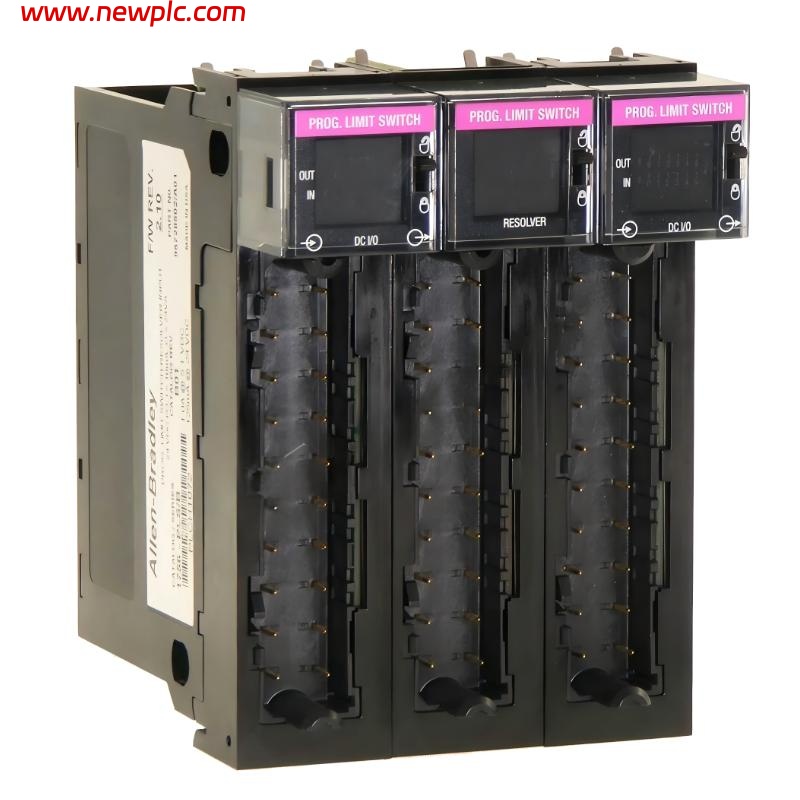

Technical Specifications

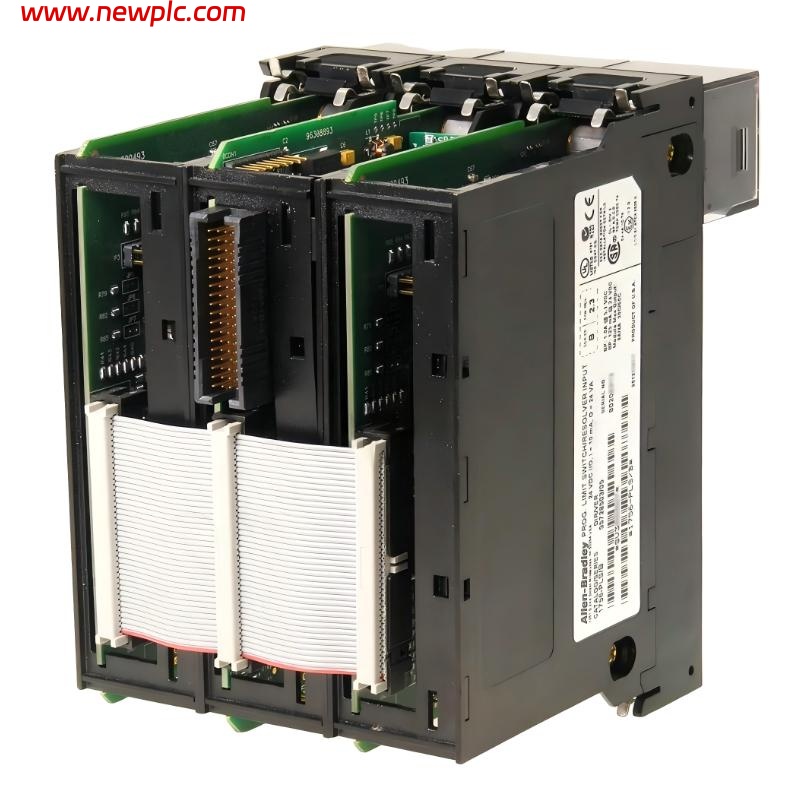

| Specification | Parameter |
|---|---|
| Part Number / Model | 1756-PLS |
| Module Type | Programmable Limit Switch Module |
| Lifecycle Status | Discontinued (as of Dec 31, 2025) |
| Input Type | Resolver input + Digital inputs |
| Resolver Signal | 2 Vrms reference output (differential), sine/cosine inputs |
| Digital Input Voltage Range | 10.8–31.2 V DC |
| Number of Inputs | 16 digital inputs |
| Number of Outputs | 16 digital outputs (up to 1 A) |
| I/O Configuration | 4 groups of 4 inputs and 4 outputs |
| Backplane Current | 1 A @ 5.1 V DC; 125 mA @ 24 V DC |
| Input Delay Time | OFF→ON <15 µs; ON→OFF <30 µs (typical) |
| Operating Voltage Range | 10–31.2 V DC |
| Mounting | Requires 3 contiguous chassis slots |
| Compatible Resolver | 846-SJxxxx-R3 series |
| Operating Temperature | 0–60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity (Operating) | 5–95 % non-condensing |
| Shock & Vibration | 30 G shock; 2 G @ 10–500 Hz |
| Dimensions (L × W × H) | ~140 mm × 112 mm × 145 mm |
| Weight | ~1.09 kg |
FAQ
FAQ
Q1: What is the main function of the 1756-PLS module?
It monitors machine position using a resolver and controls outputs based on programmable limit positions.
Q2: How many inputs and outputs does it provide?
It includes 16 digital inputs and 16 digital outputs.
Q3: What type of feedback device does it use?
It uses a resolver for position feedback, supporting sine and cosine signals.
Q4: How is the module installed in a chassis?
It requires three contiguous slots in a ControlLogix chassis.
Q5: What voltage range is supported for digital inputs?
The inputs operate within approximately 10–31.2 V DC.
Q6: Is this module still available for purchase?
No, it has been discontinued with no direct replacement announced.
Q7: What are typical industrial applications?
It is commonly used in packaging, material handling, and automated production systems.
Q8: What are the physical size and weight of the module?
It measures about 140 mm × 112 mm × 145 mm and weighs around 1.09 kg.
