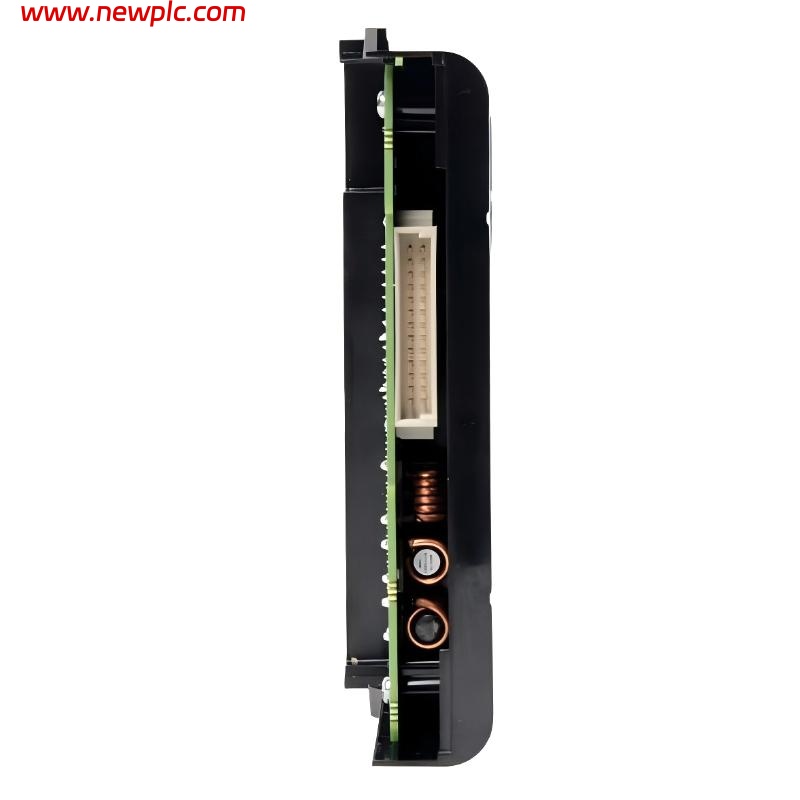

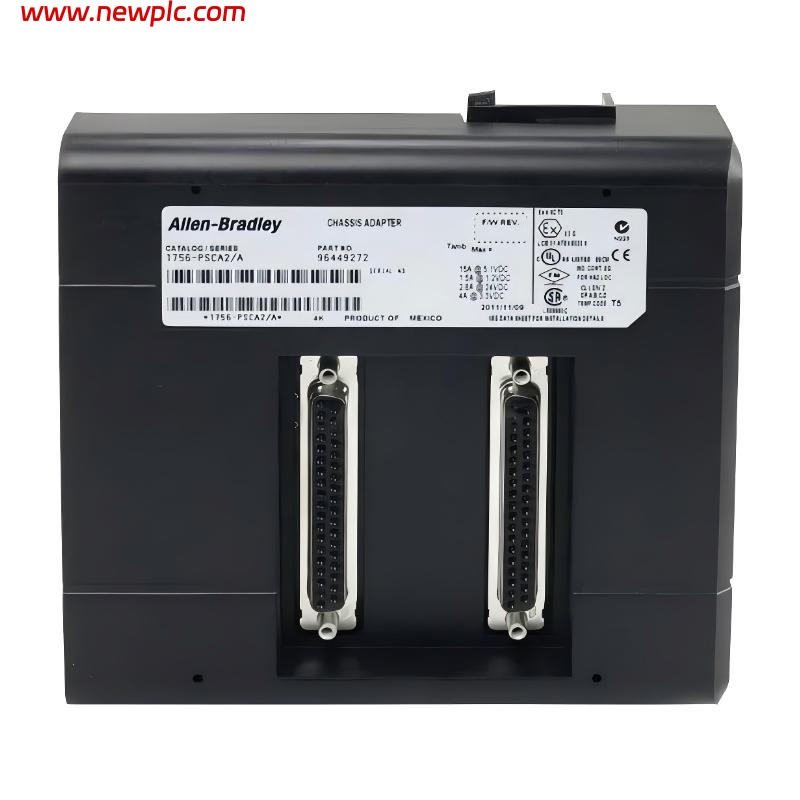

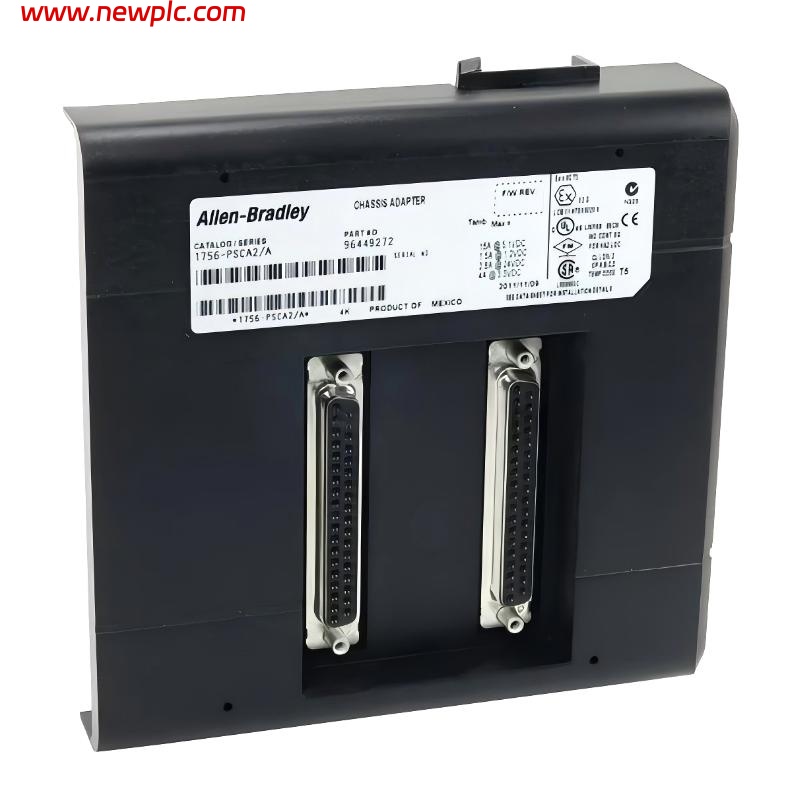

Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1756-PSCA2 |
| Module Type | Redundant Power Supply Chassis Adapter |
| Series | ControlLogix |
| Function | Connects one or two redundant power supplies to a single chassis backplane connector |
| Mounting Location | Left side of chassis |
| Backplane Current (24 V) | 125 mA |
| Power Dissipation | 25.7 W @ 30 °C; 21.3 W @ 60 °C |
| Current Capacity (1.2 V) | 1.5 A |
| Current Capacity (3.3 V) | 4 A |
| Current Capacity (5.1 V) | 15 A |
| Current Capacity (24 V) | 2.8 A |
| Cable Requirement | 1756-CPR2 cable (minimum bend radius 127 mm) |
| Removable Terminal Blocks | 3 (1756-TBSH or 1756-TBNH) |
| Operating Temperature | 0–60 °C |
| Storage Temperature | –40–85 °C |
| Humidity (Operating) | 5–95 % non-condensing |
| Shock & Vibration | 30 G shock; 2 G @ 10–500 Hz |
| Enclosure Type | Open-style (no enclosure) |
| Dimensions (L × W × H) | ~140 mm × 112 mm × 145 mm |
| Weight | ~0.23 kg |
FAQ
FAQ
Q1: What is the function of the 1756-PSCA2 module?
It combines power from one or two redundant power supplies into a single connection for the ControlLogix chassis backplane.
Q2: Where is the module installed?
It is mounted on the left side of the ControlLogix chassis.
Q3: Does this module contain active electronics?
No, it is a passive adapter designed to distribute power reliably.
Q4: What power supplies are compatible with this adapter?
It is commonly used with redundant power supplies such as 1756-PA75R and 1756-PB75R.
Q5: What are the current output capabilities?
It supports multiple voltage rails, including 1.5 A @ 1.2 V, 4 A @ 3.3 V, 15 A @ 5.1 V, and 2.8 A @ 24 V.
Q6: What are the environmental operating conditions?
The module operates between 0 °C and 60 °C with 5–95% non-condensing humidity.
Q7: What cable is required for installation?
A 1756-CPR2 cable is required, with a minimum bend radius of about 127 mm.
Q8: What are the physical dimensions and weight?
The module measures approximately 140 mm × 112 mm × 145 mm and weighs about 0.23 kg.
