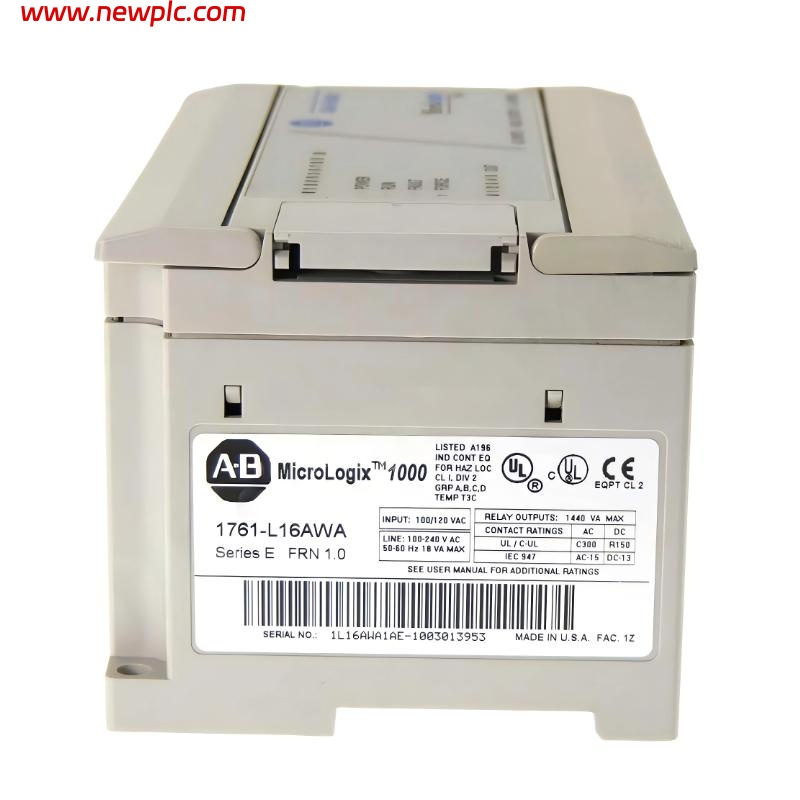

Technical Specifications

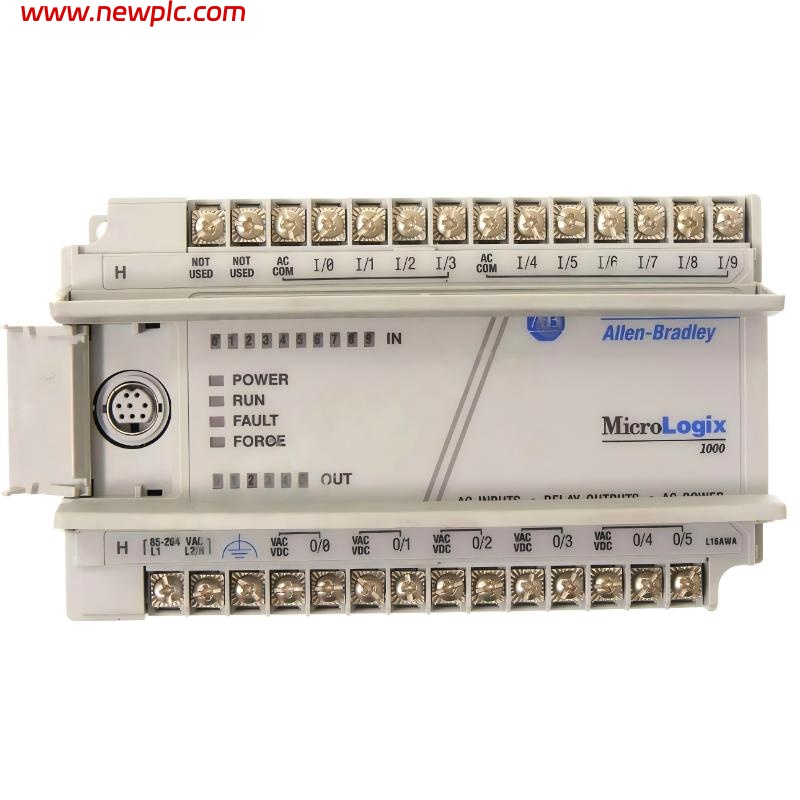

| Specification | Parameter |
|---|---|
| Part Number / Model | 1761‑L16AWA |
| Module Type | MicroLogix 1000 Programmable Controller |
| System Compatibility | MicroLogix 1000 PLC series |
| Power Supply | 120/240 V AC (85–264 VAC), 47–63 Hz |
| I/O Count | 16 total I/O points (10 digital inputs, 6 relay outputs) |
| Digital Inputs | Ten (10) 120 V AC inputs |
| Output Type | Six (6) relay outputs |
| Output Ratings | Relay contact outputs (typical AC/DC switching) |
| Communication Interface | RS‑232 serial port (DF1 protocol) |
| Memory | ~1 KB EEPROM (≈737 instruction words & 437 data words) |
| Master Control Relay | Included (safety feature) |
| Power Consumption | ~7 W input power |
| Mounting | DIN rail or panel mount (typical MicroLogix style) |
| Operating Temperature | ~0–55 °C (32–131 °F) |
| Environmental Rating | IP20 (open‑type controller) |
| Program Scan Time | ~2 ms typical |
| Dimensions (L × W × H) | ~133 mm × 40 mm × 80 mm (5.24″ × 1.57″ × 3.15″) |
| Weight | ~0.40 kg (≈0.88 lb) |
| Lifecycle Status | Discontinued/Obsolete (end of sale Jun 30, 2017) |
FAQ
FAQ
Q1: What type of controller is the 1761‑L16AWA?
It is a MicroLogix 1000 programmable controller designed for small automation tasks.
Q2: How many I/O points does it have?
It has 16 I/O points: ten digital inputs and six relay outputs.
Q3: What power supply does it require?
It operates on AC mains power (120/240 V AC).
Q4: What communication options are available?
It uses an RS‑232 serial port with the DF1 protocol.
Q5: How much memory does it have for programs?
It includes approximately 1 KB of EEPROM memory for user programs.
Q6: Does this controller have any built‑in safety feature?
Yes — it has a master control relay for emergency shutdown.
Q7: What are the physical size and weight?
Its dimensions are roughly 133 mm × 40 mm × 80 mm and it weighs about 0.40 kg.
Q8: Is the 1761‑L16AWA still current?
No — it has been discontinued and is considered obsolete.
