Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1761‑L20AWA‑5A |

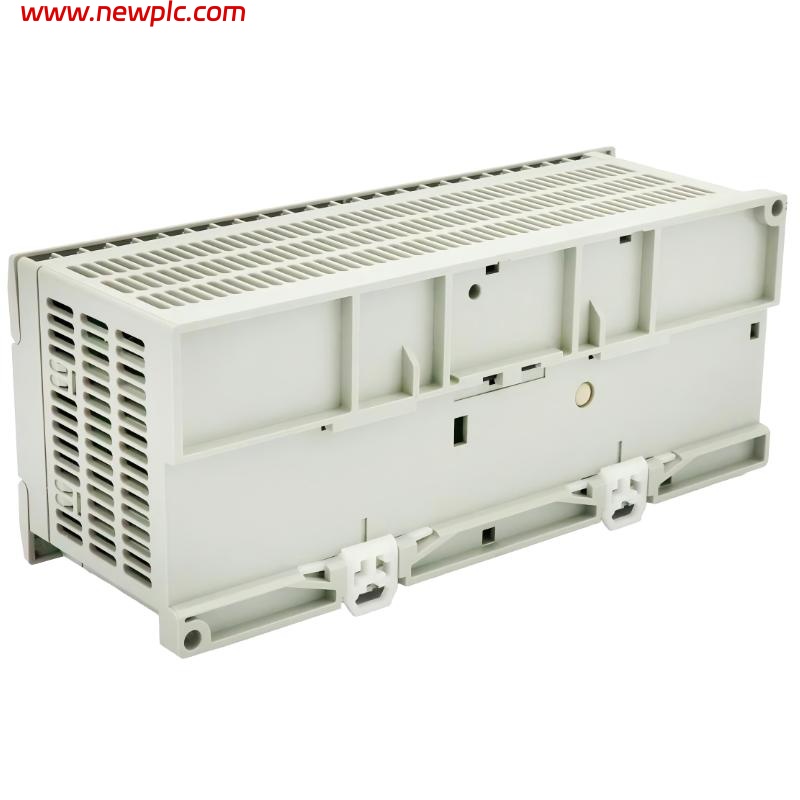

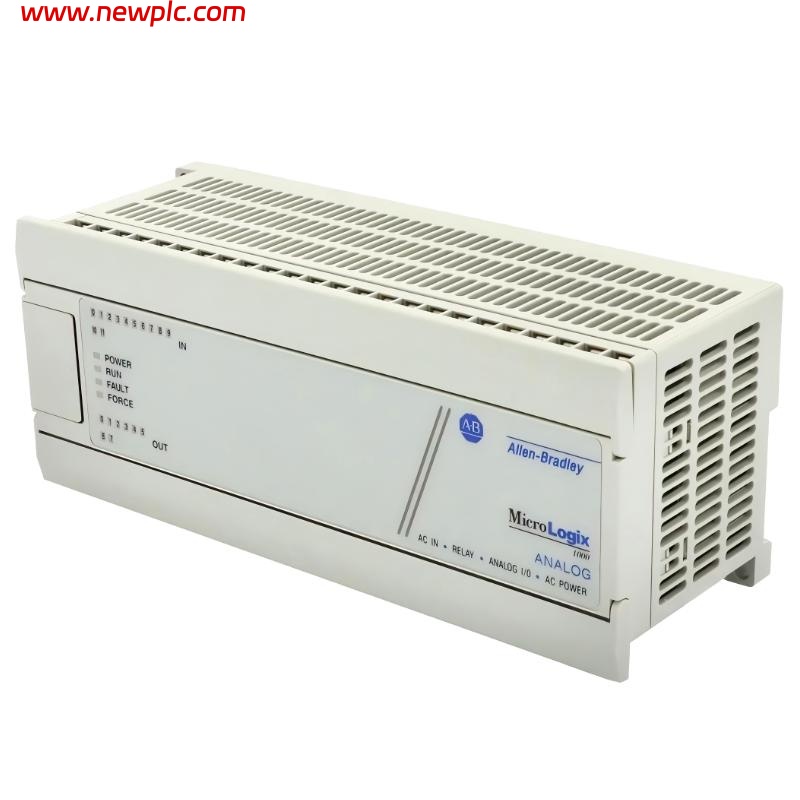

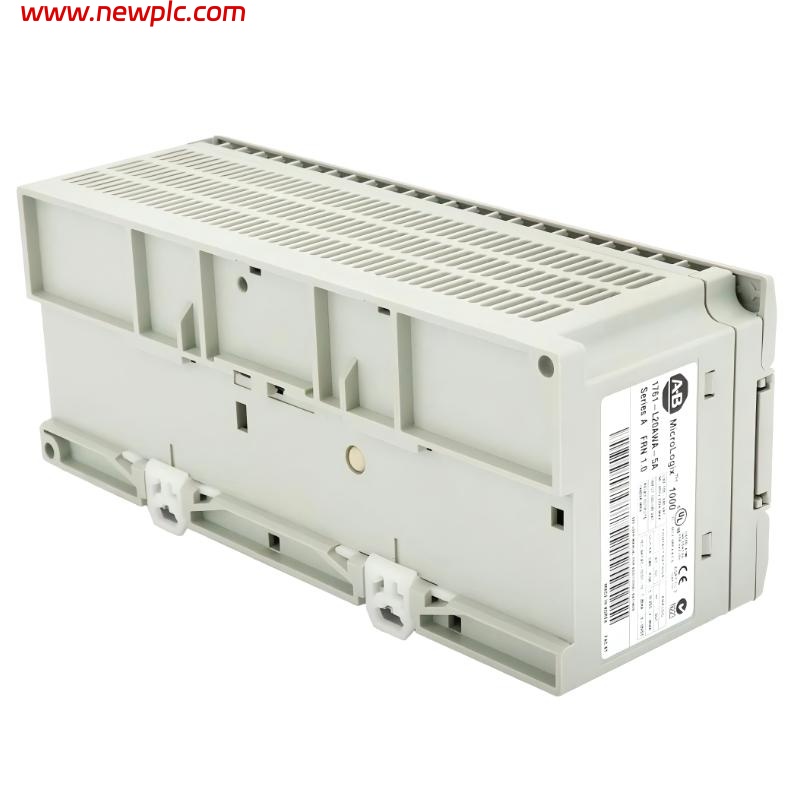

| Module Type | MicroLogix 1000 Programmable Controller |
| System Compatibility | MicroLogix 1000 PLC series |
| Power Supply | 120–240 V AC mains |
| Input Signal | 120 V AC digital inputs |
| I/O Count | 20 total I/O points (12 discrete inputs, 8 outputs) |
| Digital Inputs | Twelve (12) 120 V AC discrete inputs |
| Outputs | Eight (8) relay contact outputs |
| Analog I/O | Four (4) analog inputs; One (1) analog output |
| Analog Input Range | –10.5 V to +10.5 V DC; –21 mA to +21 mA current |
| Analog Output Range | 0–10 V DC or 4–20 mA (configurable) |
| Communication Interface | RS‑232 serial (DF1 protocol) |
| Memory | 1 KB EEPROM (program and data) |
| Safety Feature | Master Control Relay |
| Operating Temperature | 0–55 °C (typical) |
| Humidity (Operating) | 5–95 % non‑condensing |
| Physical Dimensions (L × D × H) | ~200 mm × ~73 mm × ~80 mm (~7.87″ × ~2.87″ × ~3.15″) |
| Weight | ~0.54 kg (1.19 lb) |
| Lifecycle Status | Discontinued/obsolete (end of sale May 18, 2017) |
FAQ
FAQ
Q1: What is the 1761‑L20AWA‑5A controller used for?
It is a compact programmable logic controller for small industrial automation tasks, integrating discrete and analog I/O.
Q2: How many digital input and output points does this controller have?
It has twelve 120 V AC digital inputs and eight relay outputs.
Q3: What analog capabilities does this model include?
It includes four analog inputs and one analog output for process signals.
Q4: What communication protocol is supported?
It supports DF1 communication via an RS‑232 serial interface.
Q5: What type of power supply is required?
The controller runs from 120–240 V AC mains power.
Q6: What is the onboard memory capacity?
It has 1 KB of EEPROM memory for user programs and data.
Q7: What are the physical size and weight of this controller?
It measures roughly 200 mm by 73 mm by 80 mm and weighs about 0.54 kg (1.19 lb).
Q8: Is the 1761‑L20AWA‑5A still current?
No — this model is discontinued and considered obsolete.
