Technical Specifications
| Specification | Parameter |
|---|---|
| Part Number / Model | 1761‑L32BBB |

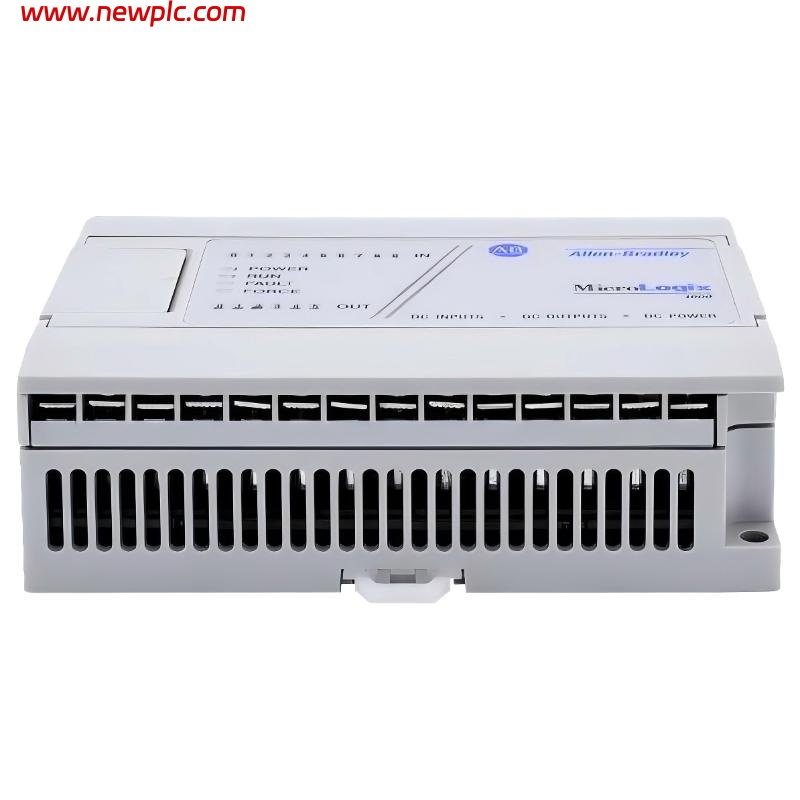

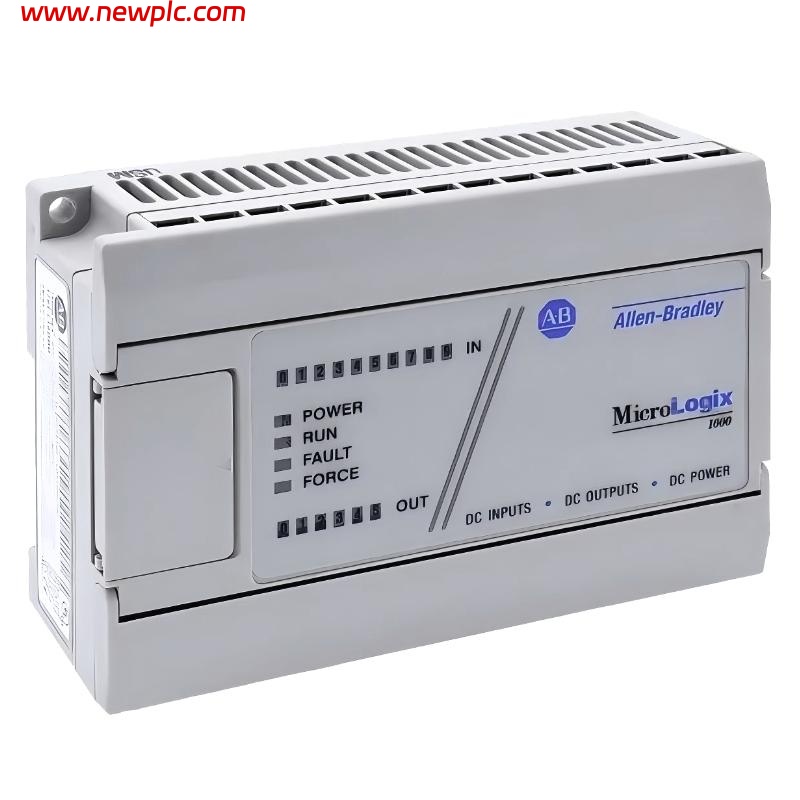

| Module Type | MicroLogix 1000 Programmable Controller |
| System Compatibility | MicroLogix 1000 PLC series |
| Power Supply | 24 V DC (typical 20.4 – 26.4 V DC) |
| I/O Count | 32 total I/O points |
| Digital Inputs | Twenty (20) 24 V DC discrete inputs |
| Outputs | Twelve (12) output points |
| Output Type | Ten (10) MOSFET sourcing 24 V DC outputs; Two (2) relay outputs |
| Communication Interface | RS‑232 serial port (DF1 protocol) |
| Memory Capacity | 1 KB EEPROM (program and data) |
| Master Control Relay | Yes (built‑in safety feature) |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0–55 °C (32–131 °F) |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Industrial‑rated shock and vibration |
| Dimensions (L × W × H) | ~200 mm × ~75 mm × ~80 mm (~7.87″ × ~2.95″ × ~3.15″) |
| Weight | ~0.32 kg (~0.71 lb) |
| Lifecycle Status | Discontinued/Obsolete |
FAQ
FAQ
Q1: What is the 1761‑L32BBB used for?
It is a compact programmable logic controller used for small automation and control applications.
Q2: How many I/O points does this controller provide?
It offers 32 I/O points — 20 digital inputs and 12 outputs.
Q3: What types of outputs does it have?
It includes ten MOSFET (sourcing 24 V DC) outputs and two relay outputs.
Q4: What power supply voltage does it require?
It operates from a 24 V DC power supply (20.4–26.4 V DC range).
Q5: What communication interface is provided?
It supports an RS‑232 serial port using the DF1 communication protocol.
Q6: Does the controller include any safety feature?
Yes — it has a built‑in Master Control Relay for safety logic.
Q7: What are the environmental operating limits?
Typical operating conditions are 0 °C to 55 °C with up to 95 % non‑condensing humidity.
Q8: Is the 1761‑L32BBB still current?
No — this model has been discontinued and is considered obsolete.
