Technical Specifications
| Specification | Parameter |
|---|---|

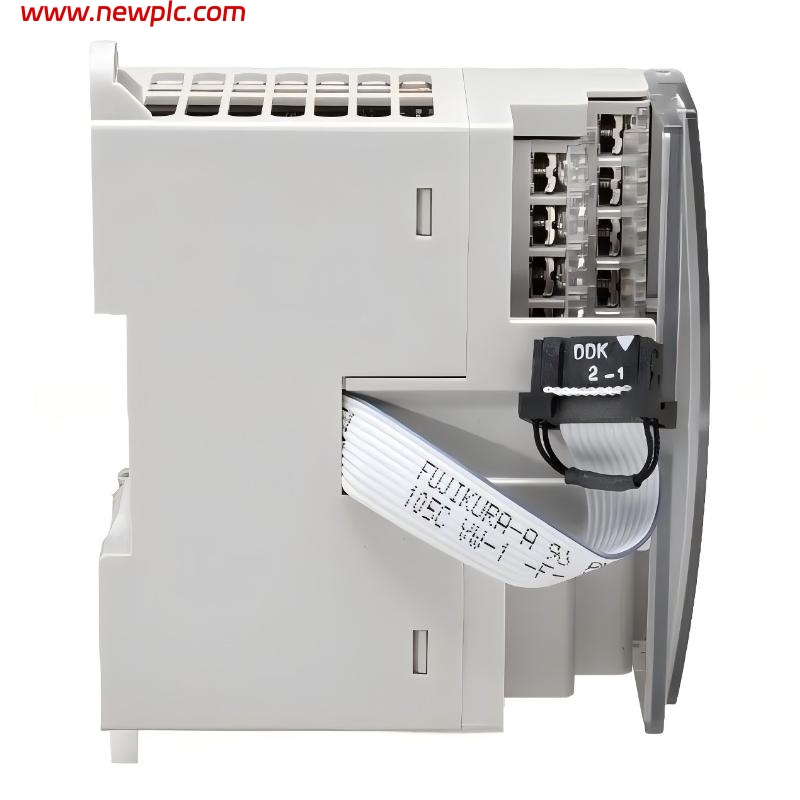

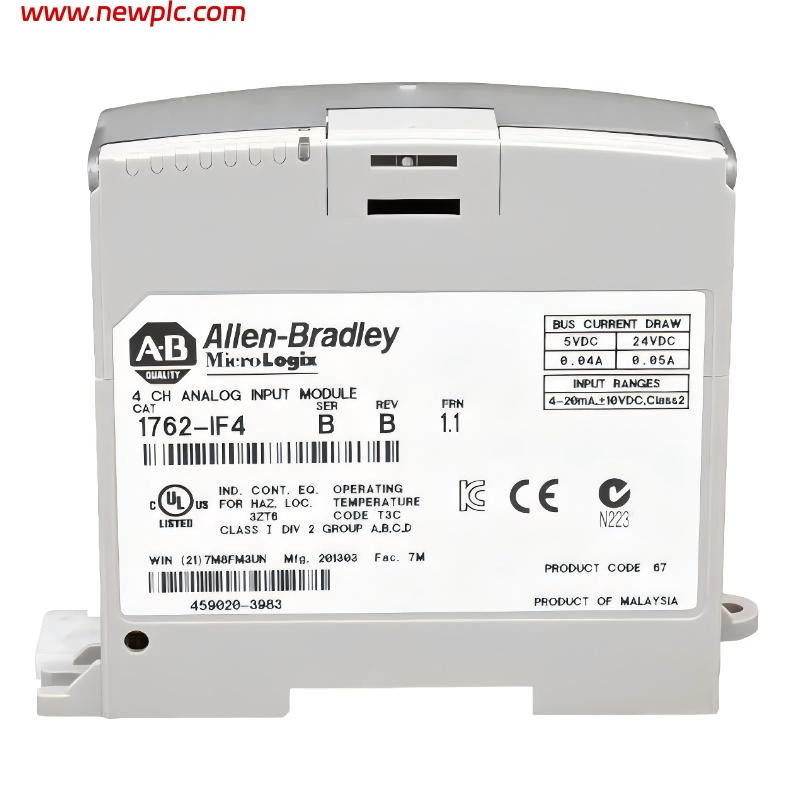

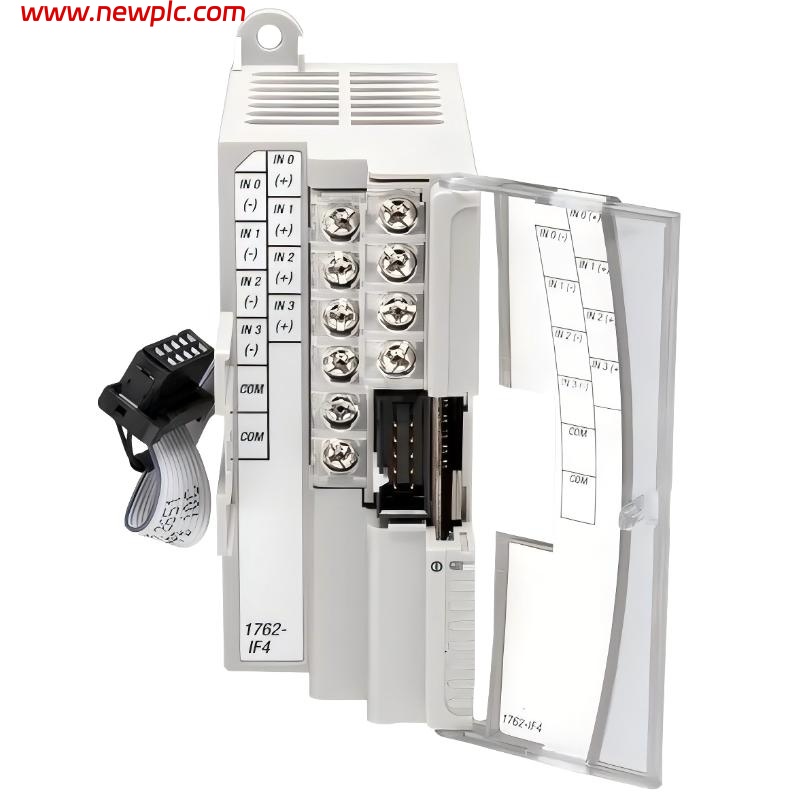

| Part Number / Model | 1762‑IF4 |
| Module Type | Analog Input Module |
| System Compatibility | MicroLogix 1100 / 1200 / 1400 PLC series |
| I/O Configuration | 4 analog inputs |
| Input Signal Types | Voltage and current (configurable) |
| Analog Input Voltage Range | ±10 V DC |
| Analog Input Current Range | 4–20 mA |
| Resolution | 12‑bit |
| Input Update Time | ~2.5 ms per channel |
| Isolation | Isolated analog input section |
| Bus Current Draw | ~30 mA @ 5 V DC; ~105 mA @ 24 V DC |
| Connection Type | Screw terminal field wiring |
| Indicators | Status LEDs |
| Operating Temperature | –20 °C to 65 °C |
| Storage Temperature | –40 °C to 85 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Shock & Vibration | Industrial‑rated |
| Dimensions (H × W × D) | ~90 mm × ~40 mm × ~87 mm |
| Weight | ~0.23 kg |
| Lifecycle Status | Active / Mature (still supported) |
FAQ
FAQ
Q1: What does the 1762‑IF4 module do?
It provides four analog input channels to MicroLogix PLCs for sensing voltage or current signals.
Q2: What types of analog inputs are supported?
Inputs can be configured for voltage (±10 V DC) or current (4–20 mA) signals.
Q3: What resolution does it provide?
The module uses 12‑bit resolution for analog conversions.
Q4: Does it include electrical isolation?
Yes — the analog inputs are isolated from the PLC backplane for noise immunity.
Q5: What PLC series is it compatible with?
It works with MicroLogix 1100, 1200, and 1400 series PLCs.
Q6: How fast are input updates?
Input channels typically update in about 2.5 ms each.
Q7: What are the environmental operating limits?
It operates from –20 °C to +65 °C with 5–95 % non‑condensing humidity.
Q8: What are the physical dimensions and weight?
The module is about 90 mm × 40 mm × 87 mm and weighs around 0.23 kg.
