Technical Specifications
| Specification | Parameter |
|---|---|

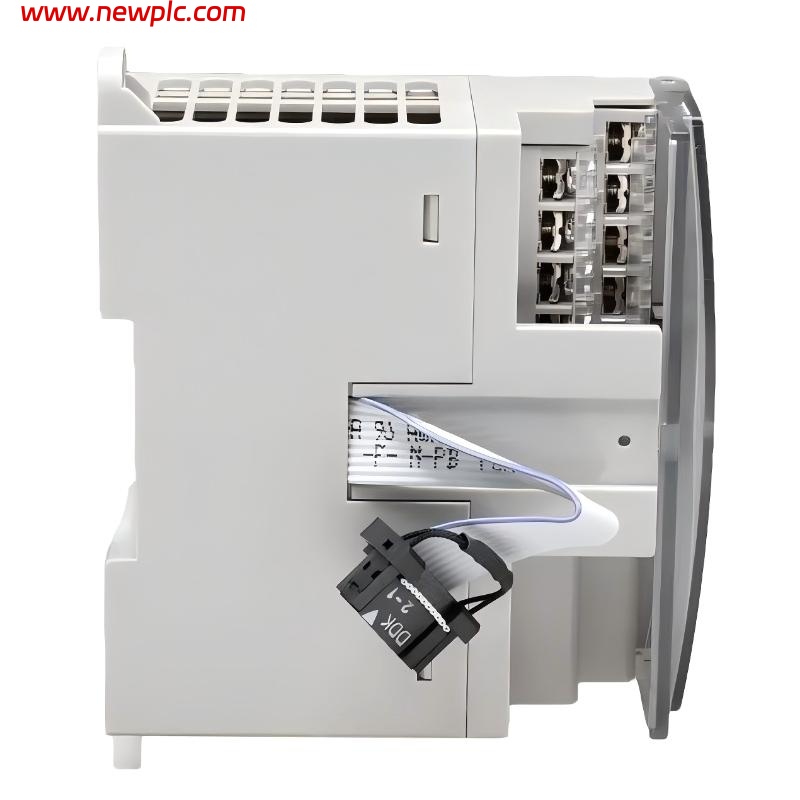

| Part Number / Model | 1762‑IQ32T |
| Module Type | MicroLogix 32‑Point Digital Input Module |
| System Compatibility | MicroLogix 1100 / 1200 / 1400 PLC series |
| Function | Expansion digital input module providing 32 DC input channels |
| Input Voltage Type | DC (24 V nominal) |
| Operating Voltage Range | 10–30 V DC (24 V typical) |
| Number of Inputs | 32 channels |
| Input Groups | 4 isolated groups of 8 inputs each |
| Input Configuration | Sink/source wiring supported |
| Nominal Input Impedance | ~4.7 kΩ |
| On‑State Current (Min) | ~1.6 mA @ 10 V DC; ~2 mA @ 15 V DC |
| Signal Delay | ~8 ms ON/OFF |
| I/O Isolation | Group‑to‑backplane reinforced isolation (1200 V AC / 1697 V DC test) |
| Bus Current Draw | ~170 mA @ 5 V DC (backplane) |
| Heat Dissipation | ~5.4–6.8 W |
| Connection Type | Screw terminal field wiring |
| Status Indicators | LEDs for channel/input status |
| Mounting | DIN rail or panel mount via backplane connector |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C and up |
| Humidity (Operating) | 5–95 % non‑condensing |
| Dimensions (H × W × D) | ~90 mm × ~40.4 mm × ~87 mm |
| Weight | ~0.20 kg |
| Lifecycle Status | Active / Mature product (still supported) |
FAQ
FAQ
Q1: What is the 1762‑IQ32T used for?
It is an expansion digital input module that adds 32 DC input points to a MicroLogix PLC system.
Q2: How many digital input channels does this module have?
It provides thirty‑two (32) discrete DC input channels.
Q3: What voltage range does the module support?
It supports 10–30 V DC input range with a nominal 24 V DC rating.
Q4: Can the inputs be wired as sink or source?
Yes — the module supports both sink and source wiring configurations.
Q5: What is the response time for input signals?
Typical signal ON/OFF transition delay is about 8 milliseconds.
Q6: Does the module provide isolation?
Yes — the inputs are grouped into four electrically isolated groups for improved noise immunity.
Q7: Where does it mount?
It mounts on DIN rail or panel and connects to the PLC backplane.
Q8: What are the physical size and weight?
It measures approximately 90 mm × 40.4 mm × 87 mm and weighs about 0.20 kg.
