Technical Specifications
| Specification | Parameter |
|---|---|

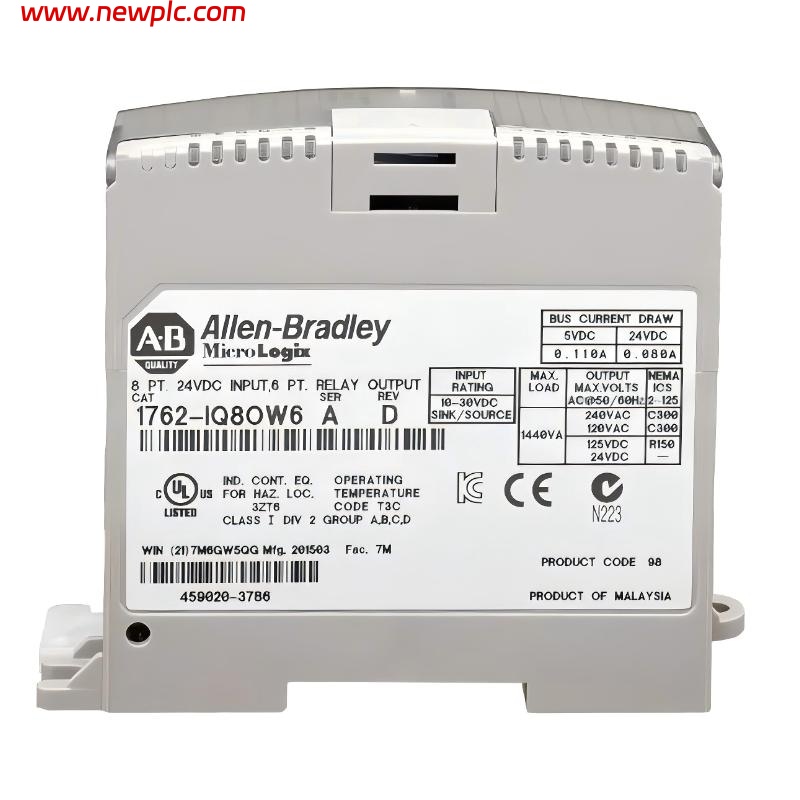

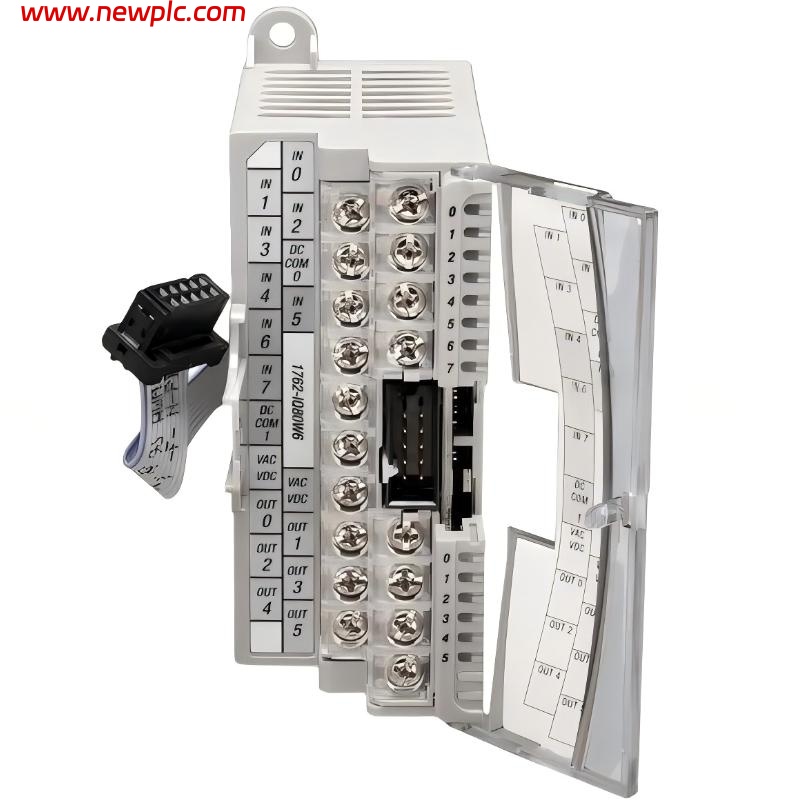

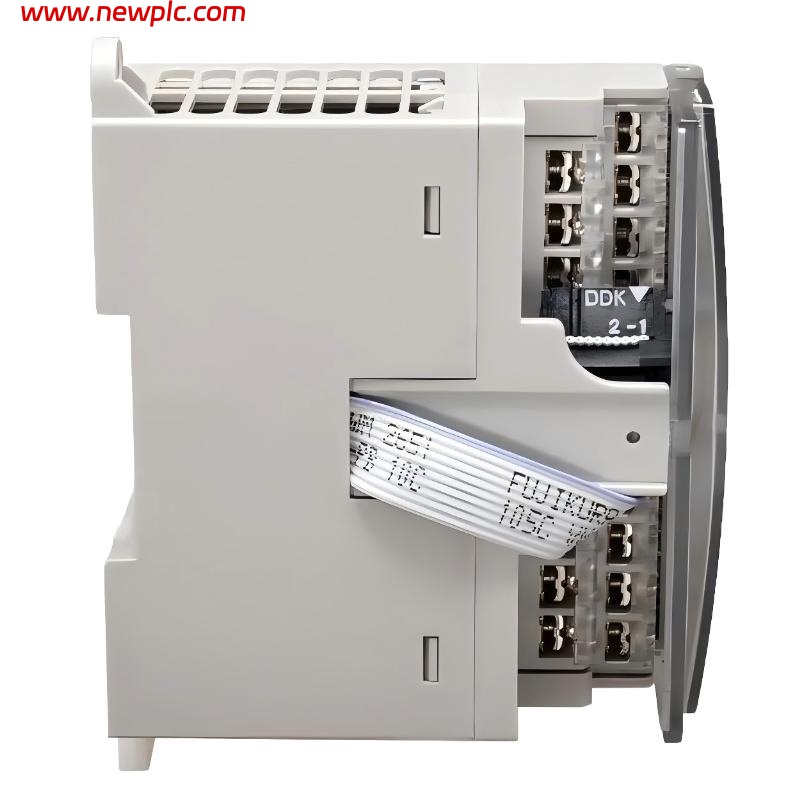

| Part Number / Model | 1762‑IQ8OW6 |
| Module Type | Digital Combination I/O Module |
| System Compatibility | MicroLogix 1100 / 1200 / 1400 expansion I/O series |
| Function | Provides discrete digital I/O expansion with inputs and relay outputs |
| Total I/O Points | 14 points (8 digital inputs + 6 relay outputs) |
| Digital Input Type | 24 V DC, sink/source inputs |
| Digital Output Type | Six (6) Form A relay outputs (normally open) |
| Input Voltage (Operating) | 10–30 V DC @ 30 °C; 10–26.4 V DC @ 65 °C |
| Nominal Input Impedance | ~3 kΩ |
| On‑State Current (Inputs) | ~8 mA @ 24 V DC (nominal) |
| On‑State Current (Outputs) | Depends on load: ~2.5 A @ 240 VAC/120 VAC; ~1 A @ 125 VDC; ~2 A @ 24 VDC |
| Signal Delay (Inputs) | ~8 ms on/off |
| I/O Isolation | Isolated groups (inputs and outputs) |
| Bus Current Draw | ~80 mA @ 24 V DC; ~110 mA @ 5 V DC backplane |
| Heat Dissipation | ~5.0 W @ 30 V DC |
| Number of Commons | Inputs: 2; Outputs: 1 |
| Mounting | DIN rail or panel mount via backplane connection |
| Operating Temperature | –20 °C to +65 °C |
| Humidity (Operating) | 5–95 % non‑condensing |
| Dimensions (W × H × D) | ~40.4 mm × 90 mm × 87 mm (~1.59″ × 3.54″ × 3.43″) |
| Weight | ~0.28 kg (~0.62 lb) |
| Lifecycle Status | Active Mature (still supported) |
FAQ
FAQ
Q1: What is the 1762‑IQ8OW6 module used for?
It expands a MicroLogix PLC with eight 24 V DC digital inputs and six relay outputs in one module.
Q2: How many input and output channels does it have?
It has 8 digital input channels and 6 relay output channels (14 total).
Q3: What voltage range do the inputs support?
Inputs support a 10–30 V DC range at standard operating temperatures.
Q4: What types of outputs are provided?
It offers six Form A (normally open) relay outputs capable of switching AC or DC loads.
Q5: Does this module require isolation?
Yes, the module’s I/O is isolated into groups for improved noise immunity.
Q6: How fast do the inputs respond?
Inputs have a typical signal delay of about ~8 ms for on/off transitions.
Q7: Where can this module be mounted?
It mounts via the PLC backplane into a control panel or DIN rail‑mounted PLC rack.
Q8: What are the physical size and weight of the module?
Approximate dimensions are 40.4 mm × 90 mm × 87 mm and it weighs around 0.28 kg.
