Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Allen-Bradley 1762-IQ16 |

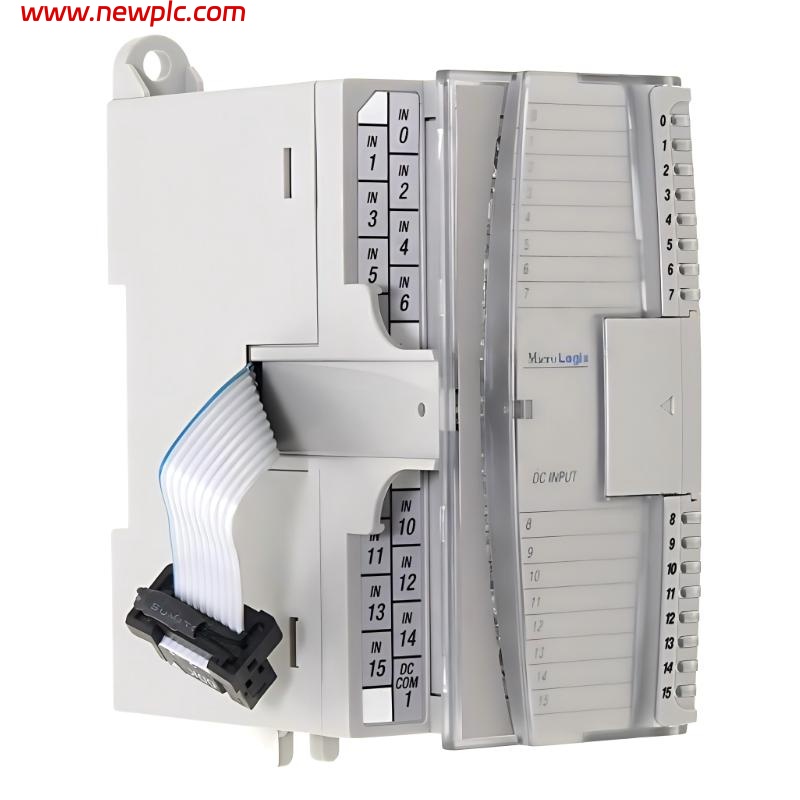

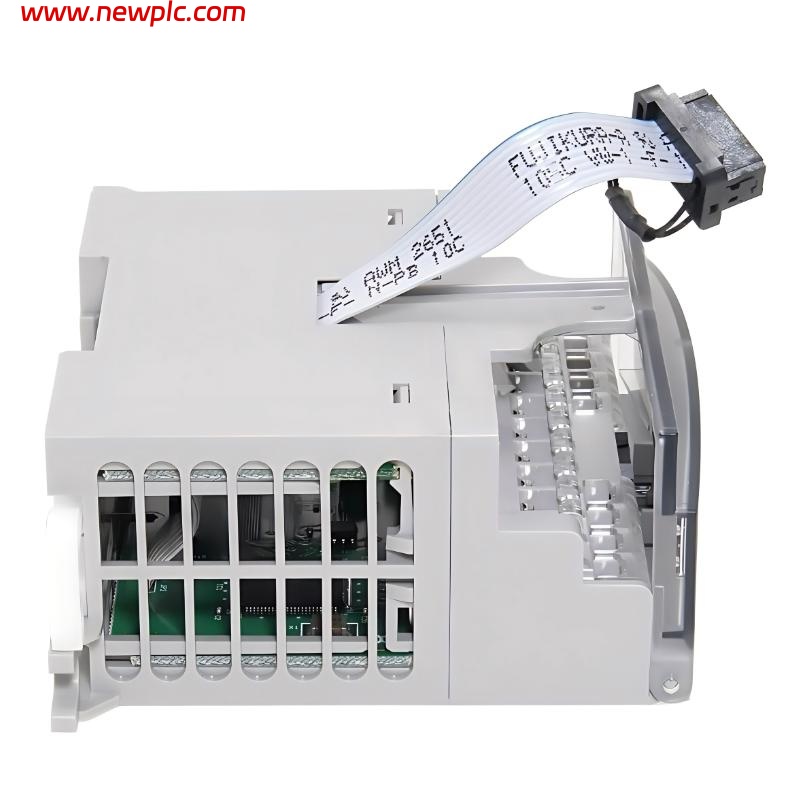

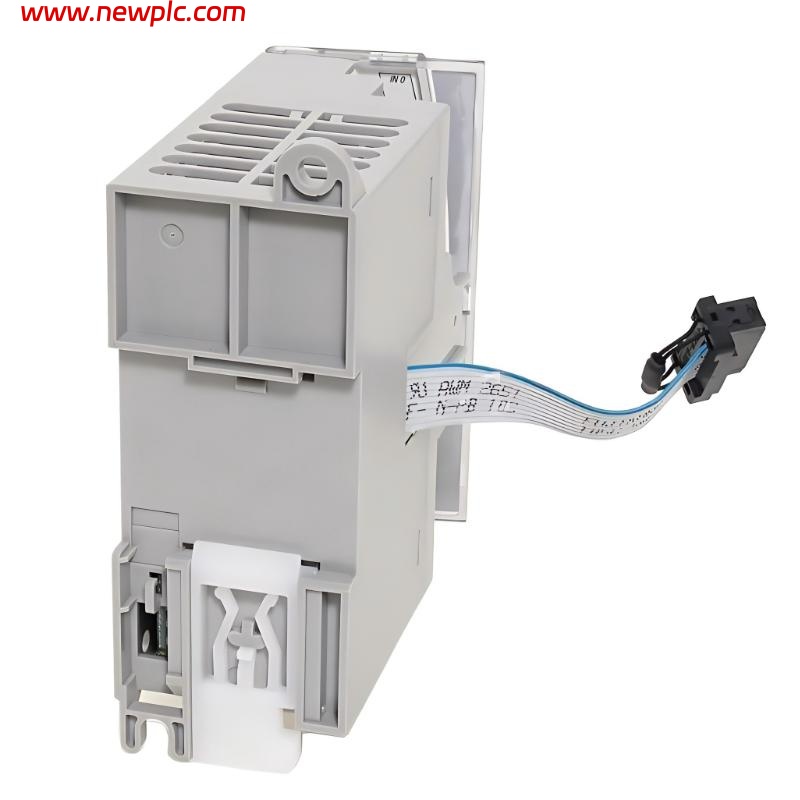

| Product Type | MicroLogix Digital DC Input Module |
| Series | MicroLogix 1200 Expansion I/O |
| Number of Inputs | 16 Digital Inputs |
| Input Type | 24V DC Sink/Source |
| Operating Voltage Range | 10…30V DC |
| Nominal Input Voltage | 24V DC |
| On-State Voltage | 10V DC Minimum |
| On-State Current | 2 mA min @ 10V DC / 8 mA nom @ 24V DC / 12 mA max @ 30V DC |
| Off-State Voltage | 5V DC Maximum |
| Off-State Current | 1.5 mA Maximum |
| Input Impedance | 3 kΩ |
| Signal Delay | 8 ms ON / 8 ms OFF |
| Number of Commons | 2 |
| Isolated Groups | Inputs 0–7 and Inputs 8–15 |
| Isolation Voltage | 75V DC Working Voltage |
| Bus Current Draw | 70 mA @ 5V DC |
| Heat Dissipation | 5.4 W Maximum |
| Wiring Connection | Screw Terminal |
| Mounting Type | DIN Rail or Panel Mount |
| Compatible Controllers | MicroLogix 1100, 1200, 1400 |
| Maximum Expansion Distance | Up to 6 modules from power supply |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 5 G @ 10–500 Hz |
| Shock Resistance | 30 G Operating |
| Enclosure Rating | IP20 |
| Dimensions (H × W × D) | 90 × 40.4 × 87 mm |
| Weight | Approx. 0.23 kg |
| Certifications | UL, CE, Class I Div 2 |
| Product Lifecycle | Active Mature |
FAQ
FAQ
Q1: What is the primary function of the 1762-IQ16 module?
The 1762-IQ16 is a 16-point 24V DC digital input expansion module for MicroLogix PLC systems.
Q2: Does the module support both sinking and sourcing devices?
Yes. The module supports both sink and source input wiring, allowing compatibility with NPN and PNP field devices.
Q3: What input voltage range does the module support?
The supported operating voltage range is 10…30V DC with a nominal voltage of 24V DC.
Q4: Which PLCs are compatible with the 1762-IQ16?
It is compatible with MicroLogix 1100, 1200, and 1400 controllers.
Q5: What are the physical dimensions of the module?
The dimensions are approximately 90 mm (H) × 40.4 mm (W) × 87 mm (D).
Q6: What type of field wiring connection is used?
The module uses screw terminal connections for field device wiring.
Q7: Is the module isolated?
Yes. The inputs are divided into two isolated groups with reinforced isolation between the input groups and the backplane.
Q8: Is the 1762-IQ16 still available?
Yes. Rockwell Automation currently lists the 1762-IQ16 lifecycle status as “Active Mature.”
