Technical Specifications
| Parameter | Specification |
|---|---|

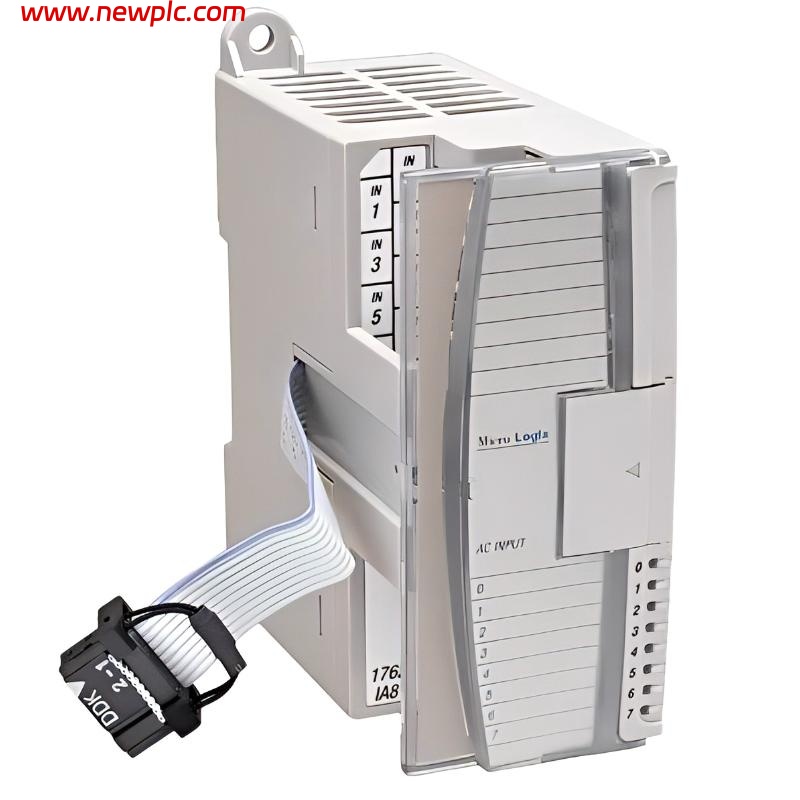

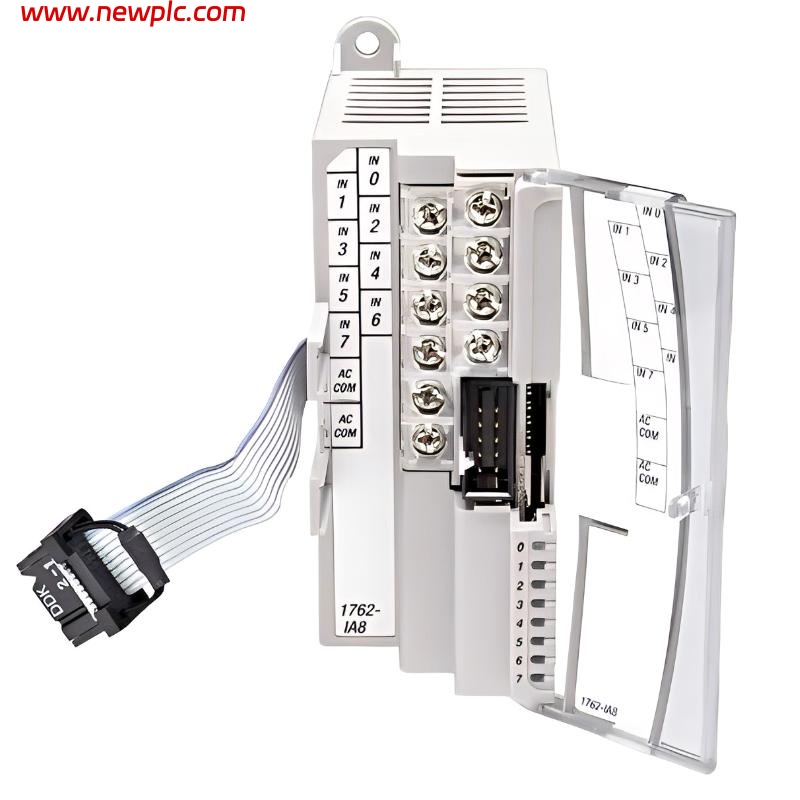

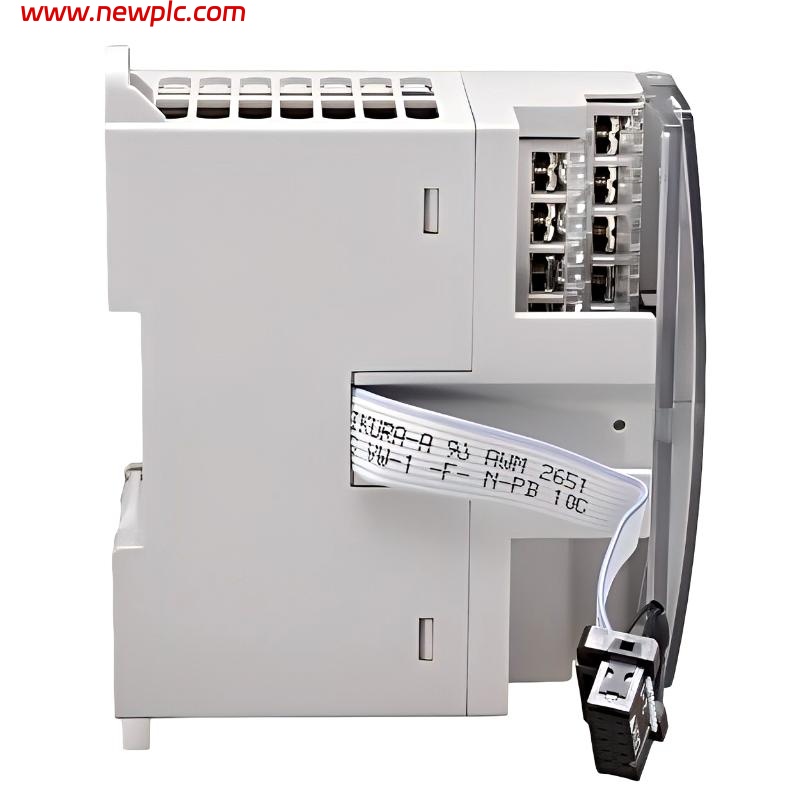

| Model | Allen-Bradley 1762-IA8 |
| Product Type | MicroLogix Digital AC Input Module |
| Series | MicroLogix 1200 Expansion I/O |
| Number of Inputs | 8 Digital Inputs |
| Input Voltage Type | 120V AC |
| Operating Voltage Range | 79…132V AC |
| Nominal Input Voltage | 120V AC |
| Input Frequency | 47…63 Hz |
| Input Current | 12 mA nominal @ 120V AC |
| Maximum Input Current | 16 mA @ 132V AC |
| Inrush Current | 250 mA Maximum |
| Off-State Voltage | 20V AC Maximum |
| Off-State Current | 2.5 mA Maximum |
| Nominal Impedance | 12 kΩ @ 50 Hz |
| Signal Delay | 20 ms ON / 20 ms OFF |
| Isolation | Input Group to Backplane Isolated |
| Isolation Voltage | 132V AC Working Voltage |
| Number of Commons | 1 |
| Wiring Connection | Screw Terminal |
| Bus Current Draw | 50 mA @ 5V DC |
| Heat Dissipation | 2 W Maximum |
| Mounting Type | DIN Rail or Panel Mount |
| Compatible Controllers | MicroLogix 1100, 1200, 1400 |
| Maximum Expansion Distance | Up to 6 modules from power supply |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 5 G @ 10…500 Hz |
| Shock Resistance | 30 G Operating |
| Dimensions (H × W × D) | 90 × 40.4 × 87 mm |
| Weight | Approx. 0.20–0.21 kg |
| Enclosure Rating | IP20 |
| Certifications | UL, CE, Class I Div 2 |
| Product Lifecycle | Active Mature |
FAQ
FAQ
Q1: What is the primary function of the 1762-IA8 module?
The 1762-IA8 is an 8-point 120V AC digital input expansion module for MicroLogix PLC systems.
Q2: Which PLC families support the 1762-IA8?
It is compatible with MicroLogix 1100, 1200, and 1400 controllers.
Q3: What voltage range does the module support?
The module supports 79…132V AC at 47…63 Hz, with a nominal voltage of 120V AC.
Q4: What are the physical dimensions of the module?
The dimensions are approximately 90 mm (H) × 40.4 mm (W) × 87 mm (D).
Q5: What type of wiring connection is used?
The module uses screw terminal connections for field wiring.
Q6: Is the module isolated?
Yes. The input group is isolated from the backplane using reinforced insulation.
Q7: What is the signal response time?
The ON and OFF signal delay is approximately 20 ms.
Q8: Is the 1762-IA8 still available?
Yes. Rockwell Automation currently lists the 1762-IA8 as an Active Mature product.
