Technical Specifications
| Parameter | Specification |
|---|---|

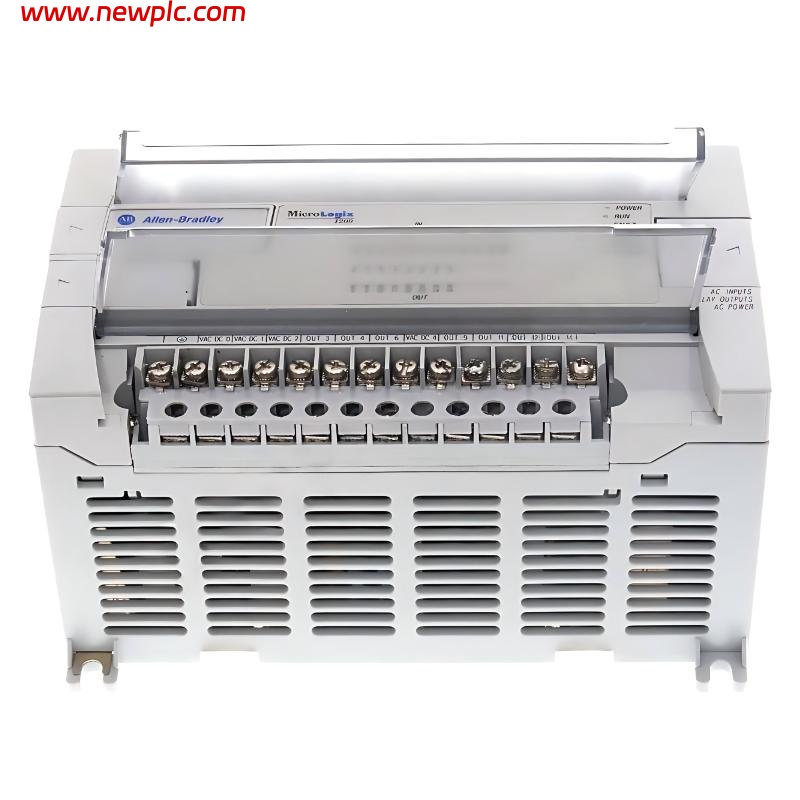

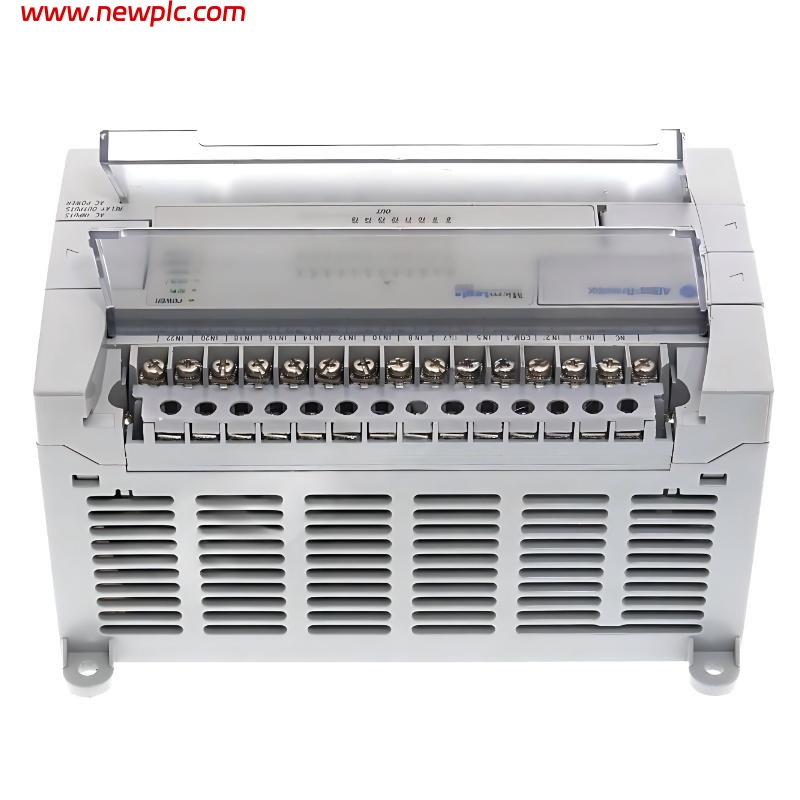

| Model | Allen-Bradley 1762-L40AWA |
| Product Type | MicroLogix 1200 Programmable Controller |
| Series | MicroLogix 1200 |
| Integrated I/O | 40 Points |
| Digital Inputs | 24 × 120V AC Inputs |
| Relay Outputs | 16 Relay Outputs |
| Power Supply | 85…265V AC |
| Nominal Supply Voltage | 120/240V AC |
| Input Frequency | 47…63 Hz |
| User Memory | 6 KB |
| Program Memory Backup | EEPROM Optional |
| Communication Port | 1 RS-232 Serial Port |
| Supported Protocols | DF1 Full/Half Duplex, DH-485, ASCII |
| Real-Time Clock | Yes |
| Expansion I/O Support | Up to 6 Expansion Modules |
| High-Speed Counters | 6 Inputs |
| Relay Output Rating | 2 A @ 30V DC / 125…240V AC |
| Isolation Voltage | 1200V Between User Circuits and Logic |
| Programming Software | RSLogix 500 |

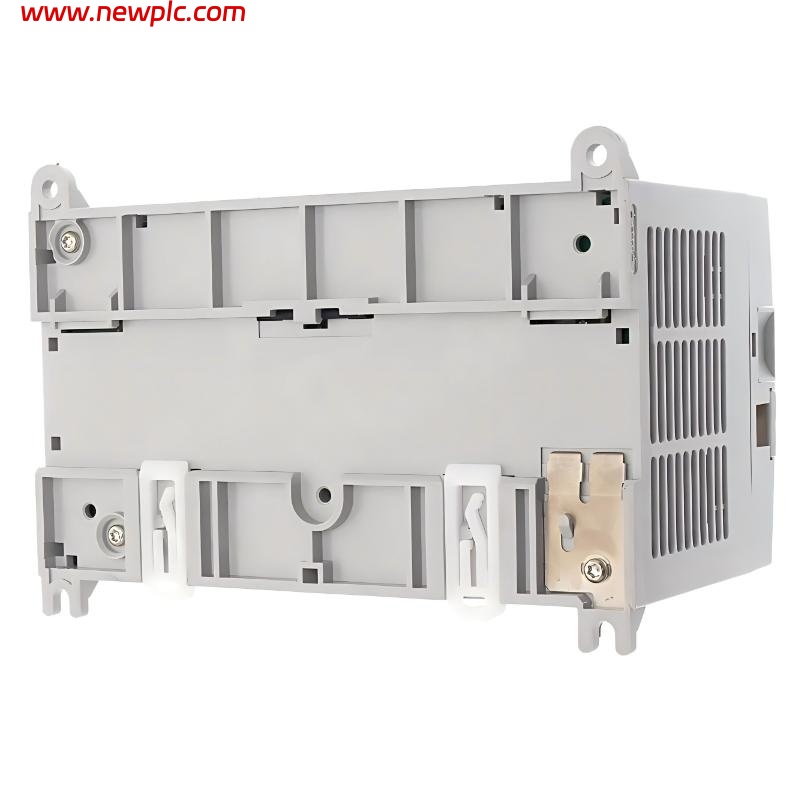

| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 5 g @ 10…500 Hz |
| Shock Resistance | 30 g Operating |
| Dimensions (H × W × D) | 90 × 285 × 87 mm |
| Weight | Approx. 1.1 kg |
| Certifications | UL, CE, CSA, Class I Div 2 |
FAQ
FAQ
Q1: What is the primary function of the 1762-L40AWA?
The 1762-L40AWA is a compact MicroLogix 1200 PLC used for small and medium industrial automation applications requiring AC inputs and relay outputs.
Q2: What does “AWA” mean in the part number?
- A = AC power supply
- WA = AC digital inputs
- A/R = Relay outputs
This controller uses AC power, AC inputs, and relay outputs.
Q3: How many built-in I/O points are included?
The controller includes 40 integrated I/O points consisting of 24 AC inputs and 16 relay outputs.
Q4: Can the controller be expanded with additional modules?
Yes. The controller supports up to 6 MicroLogix 1200 expansion I/O modules.
Q5: Which software is used to program the PLC?
The controller is programmed using RSLogix 500 software.
Q6: What communication interface is available?
It includes one RS-232 serial communication port supporting DF1, DH-485, and ASCII protocols.
Q7: What are the physical dimensions of the controller?
The dimensions are approximately 90 mm (H) × 285 mm (W) × 87 mm (D).
Q8: Is the 1762-L40AWA still available?
No. Rockwell Automation has discontinued the MicroLogix 1200 family, including the 1762-L40AWA.
