Technical Specifications
| Parameter | Specification |
|---|---|

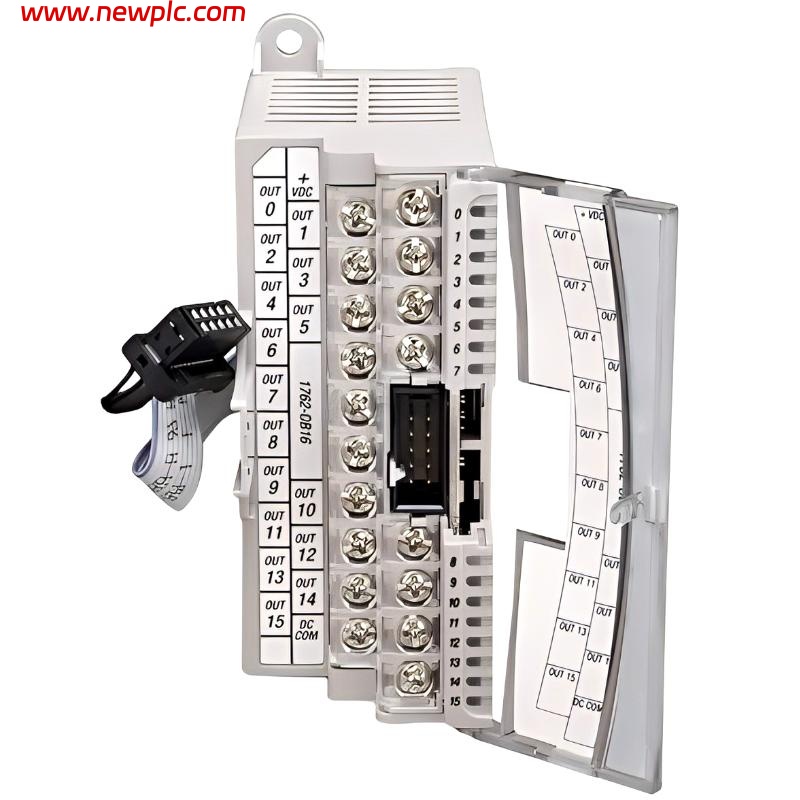

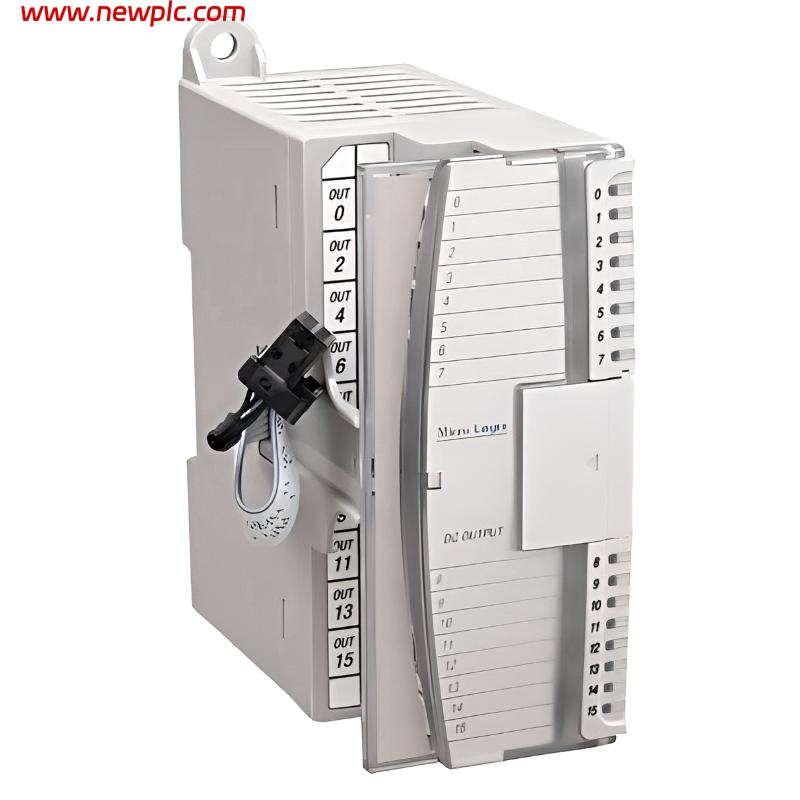

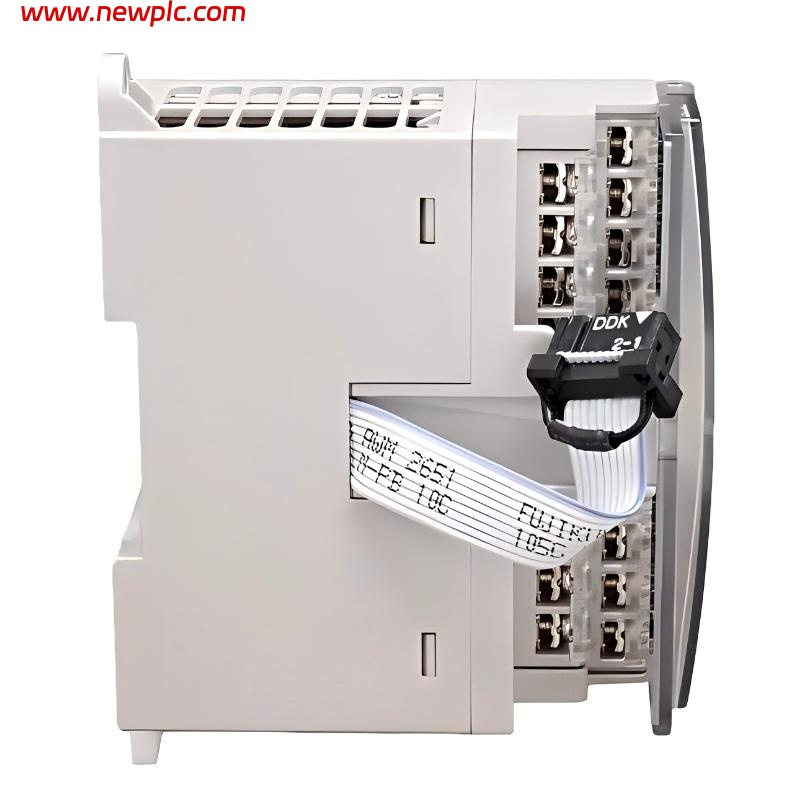

| Model | Allen-Bradley 1762-OB16 |
| Product Type | MicroLogix Digital DC Output Module |
| Series | MicroLogix 1200 Expansion I/O |
| Number of Outputs | 16 Digital Outputs |
| Output Type | 24V DC Source (Sourcing) |
| Operating Voltage Range | 20.4…26.4V DC |
| Nominal Output Voltage | 24V DC |
| Output Configuration | 2 Groups of 8 Outputs |
| Maximum Continuous Current per Point | 0.5 A |
| Maximum Continuous Current per Module | 8 A |
| Surge Current per Point | 1 A for 10 ms |
| Off-State Leakage Current | 1 mA Maximum |
| On-State Voltage Drop | 1V DC Maximum |
| Output Delay | 0.1 ms ON / 1 ms OFF |
| Isolation Voltage | 75V DC Working Voltage |
| Bus Current Draw | 200 mA @ 5V DC |
| Heat Dissipation | 6.1 W Maximum |
| Wiring Connection | Screw Terminal |
| Short Circuit Protection | Electronic Protection |
| Mounting Type | DIN Rail or Panel Mount |
| Compatible Controllers | MicroLogix 1100, 1200, 1400 |
| Maximum Expansion Distance | Up to 6 modules from power supply |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Vibration Resistance | 5 G @ 10…500 Hz |
| Shock Resistance | 30 G Operating |
| Enclosure Rating | IP20 |
| Dimensions (H × W × D) | 90 × 87 × 40.4 mm |
| Weight | Approx. 0.25 kg |
| Certifications | UL, CE, CSA, Class I Div 2 |
| Product Lifecycle | Active Mature |
FAQ
FAQ
Q1: What is the primary function of the 1762-OB16 module?
The 1762-OB16 is a 16-point 24V DC sourcing digital output expansion module for MicroLogix PLC systems.
Q2: What type of outputs does the module provide?
The module provides sourcing (PNP-type) transistor DC outputs designed for 24V DC field devices.
Q3: How many outputs are included?
The module contains 16 digital outputs arranged in two isolated groups of 8 points each.
Q4: What is the maximum current rating per output?
Each output supports up to 0.5 A continuous current.
Q5: Which PLCs are compatible with the 1762-OB16?
It is compatible with MicroLogix 1100, 1200, and 1400 controllers.
Q6: What are the physical dimensions of the module?
The dimensions are approximately 90 mm (H) × 87 mm (W) × 40.4 mm (D).
Q7: Does the module include protection features?
Yes. The module includes electronic short-circuit protection and isolated output groups.
Q8: Is the 1762-OB16 still available?
Yes. Rockwell Automation currently lists the 1762-OB16 lifecycle status as “Active Mature.”
