Technical Specifications
| Parameter | Specification |
|---|---|

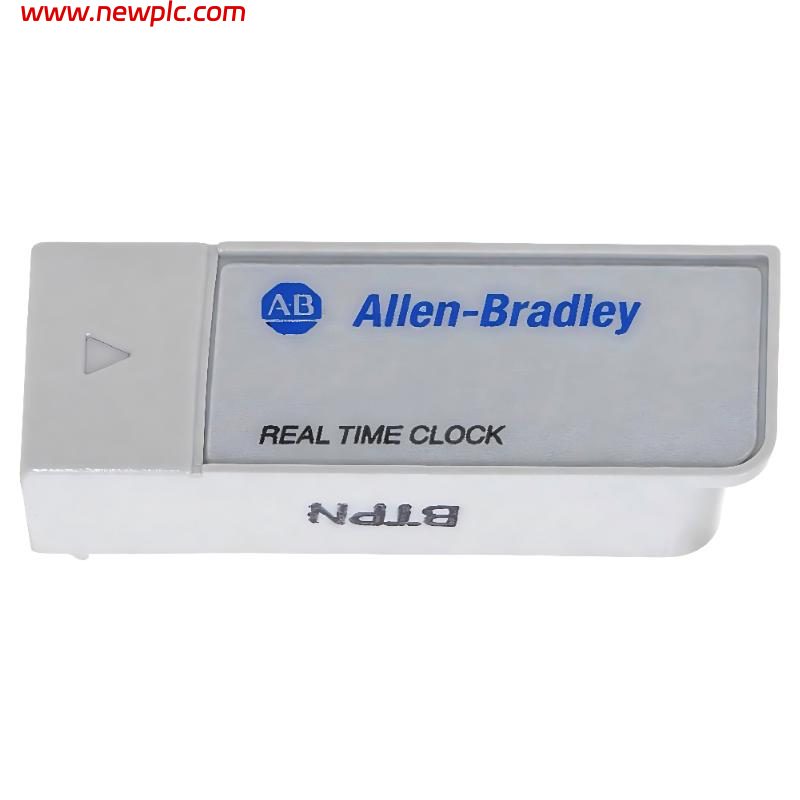

| Model | Allen-Bradley 1762-RTC |
| Product Type | Real-Time Clock Module |
| Series | MicroLogix 1200 Accessory |
| Function | Real-Time Clock and Calendar Backup |
| Compatible Controllers | MicroLogix 1200 Controllers |
| Time Retention | Maintains Time During Power Loss |
| Battery Type | Replaceable Lithium Battery |
| Battery Life | Approx. 5 Years Typical |
| Calendar Functions | Year, Month, Day, Hour, Minute, Second |
| Mounting Location | Internal Plug-In Accessory Slot |
| Supported Features | Time Stamping, Scheduling, Time-Based Logic |
| Installation Type | Plug-In Module |
| Power Source | Controller Internal Supply + Battery Backup |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% Non-Condensing |
| Dimensions (Approx.) | 30 × 20 × 10 mm |
| Weight | Approx. 0.02 kg |
| Certifications | UL, CE |
FAQ
FAQ
Q1: What is the function of the 1762-RTC module?
The 1762-RTC provides real-time clock and calendar functionality for MicroLogix 1200 controllers, allowing time-based control and scheduling applications.
Q2: Which controllers are compatible with the 1762-RTC?
The module is designed for use with Allen-Bradley MicroLogix 1200 PLCs.
Q3: What happens during a power outage?
The internal lithium battery maintains the clock and calendar settings during power loss.
Q4: What types of applications use the RTC module?
Typical applications include scheduling, data logging, timestamping, shift control, and timed machine operations.
Q5: Is the battery replaceable?
Yes. The module uses a replaceable lithium battery with a typical life expectancy of approximately 5 years.
Q6: Where is the module installed?
The 1762-RTC installs into the internal accessory slot of the MicroLogix 1200 controller.
Q7: What are the physical dimensions of the module?
The approximate dimensions are 30 mm × 20 mm × 10 mm.
Q8: Is the 1762-RTC still available?
No. The 1762-RTC and the MicroLogix 1200 family have been discontinued by Rockwell Automation.
